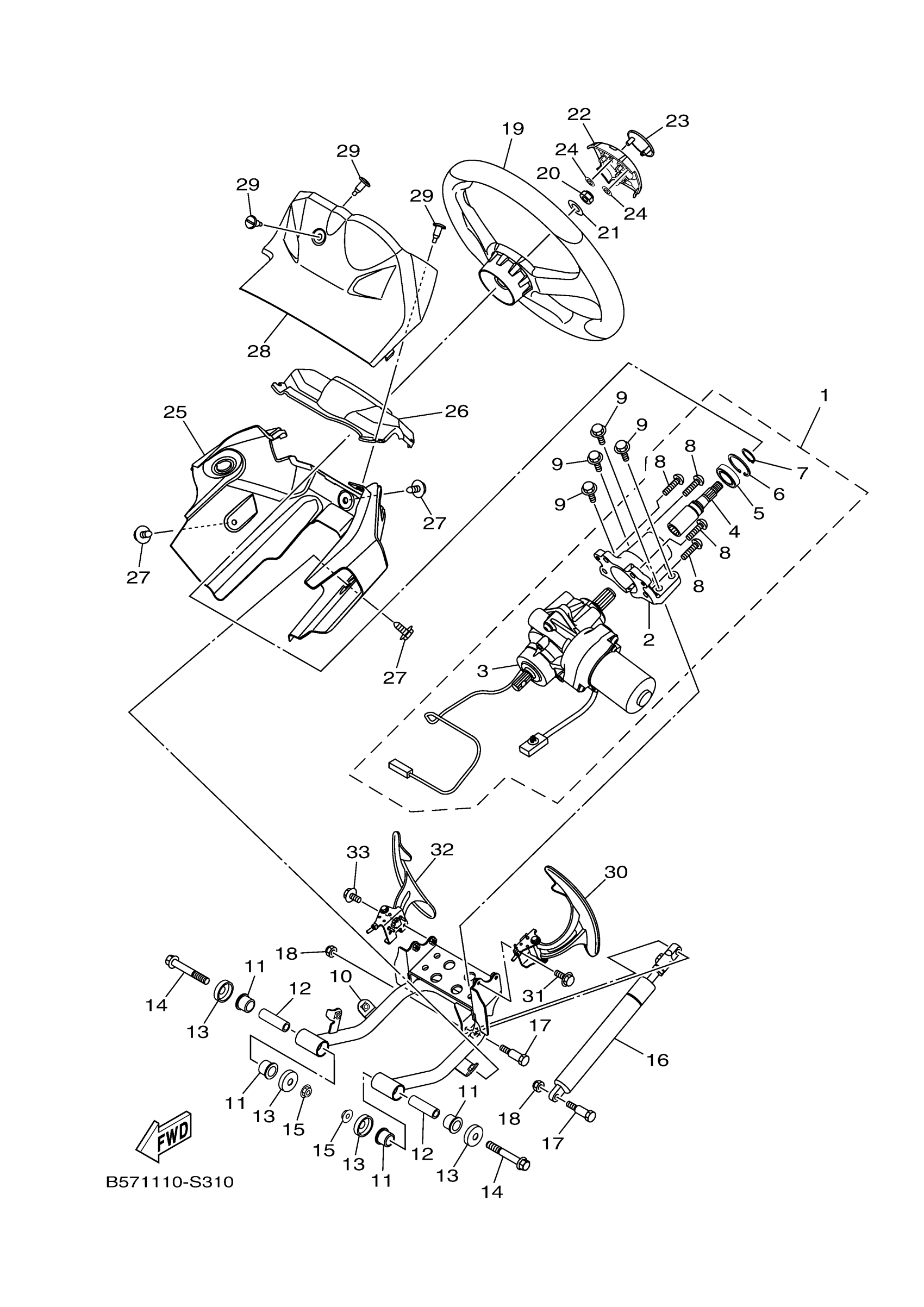

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 STEERING 2 Diagram
#
1
STEERING COLUMN AS
2HC-23810-06-00
Unavailable
2
SUPT., STRG. HSG.
2HC-2254G-00-00
$96.99
3
POWER STRG. ACTUAT
2HC-238B0-06-00
$2,842.99
4
SHAFT 1
2HC-23849-00-00
$58.99
5
BEARING
93306-97201-00
Unavailable
6
CIR-CLIP (70R)
93420-40064-00
Unavailable
7
CIRCLIP(1EY)
99009-22400-00
$8.49
8
BOLT, BUTTON HEAD
92012-08030-00
$5.60
9
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
10
STEERING GATE COMP.
B57-F3870-01-00
$59.99
11
BUSH, SOLID(3GG)
90381-15088-00
$21.99
12
COLLAR
90387-10111-00
Unavailable
13
COVER, THRUST 1
1UY-23517-01-00
$6.99
14
BOLT, FLANGE
90105-10267-00
$9.49
15
NUT, S/L FLANGE
95602-10200-00
$4.82
16
SPRING, DAMPER
2HC-F3855-00-00
Unavailable
17
BOLT
90109-06255-00
Unavailable
18
NUT, NYLON
95707-06300-00
Unavailable
19
WHEEL,STEERING
2HC-F3838-02-00
Unavailable
20
NUT, SELF-LOCKING
90185-12007-00
Unavailable
21
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
22
COVER, STEERING
2HC-F3818-00-00
Unavailable
23
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
24
NUT, SPRING
90183-06071-00
Unavailable
25
COVER, ADJUST
B57-F387G-00-00
Unavailable
26
COVER, FRONT
B57-F2865-00-00
Unavailable
27
BOLT, WITH WASHER
90119-06226-00
Unavailable
28
COVER,METER
2HC-H3559-01-00
Unavailable
29
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
30
PADDLE SHIFT ASSY. ,1
B57-2380A-10-00
Unavailable
31
BOLT, FLANGE
95812-06010-00
Unavailable
32
PADDLE SHIFT ASSY. ,2
B57-2380B-10-00
Unavailable
33
BOLT, FLANGE
95812-06010-00
Unavailable
