Description

Price

1

SEAT BACK ASSY

B4J-F4790-70-00

$318.99

2

SEAT ASSY 2

B4J-K8420-70-00

$199.99

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

$3.69

5

PLUG

2HC-F2417-00-00

$2.75

6

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

7

WASHER, PLATE

90201-06095-00

$8.49

8

ADJUSTER ASSY

BDW-F7270-00-00

$85.99

9

ADJUSTER ASSY

BDW-F7260-00-00

$401.99

10

BOLT, FLANGE

95817-08012-00

$5.49

11

COVER,2

2HC-F475X-01-00

$40.99

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

13

SEAT BACK ASSY

B4J-F4790-70-00

$318.99

14

SEAT ASSY 2

B4J-K8420-70-00

$199.99

15

FRAME, SEAT 2

2HC-F473D-01-00

Unavailable

16

GROMMET

1XD-F4742-00-00

$3.69

17

PLUG

2HC-F2417-00-00

$2.75

18

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

19

WASHER, PLATE

90201-06095-00

$8.49

20

BOLT, FLANGE

95817-08012-00

$5.49

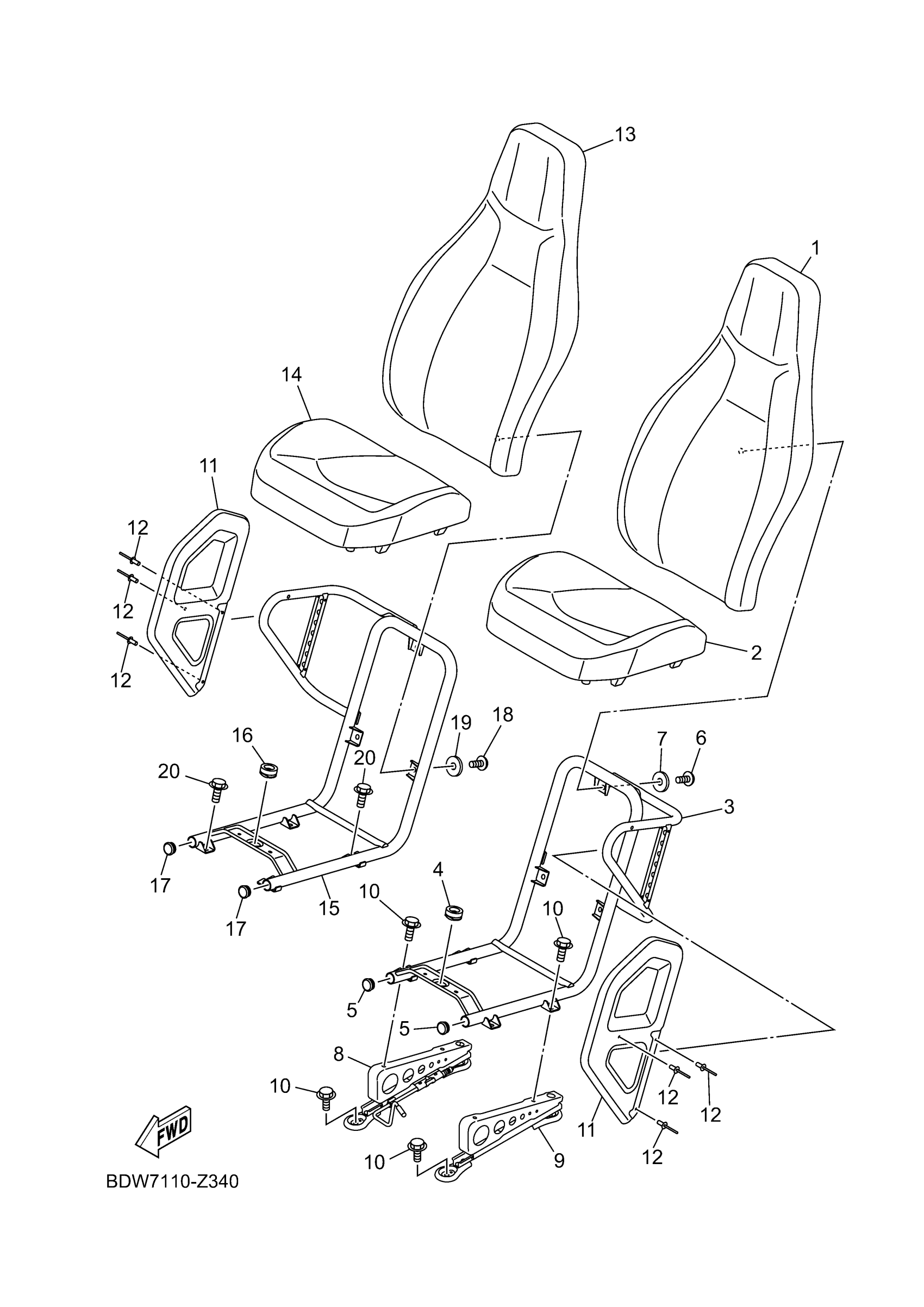

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 SEAT Diagram

SEAT BACK ASSY

SEAT ASSY 2

FRAME, SEAT 1

GROMMET

PLUG

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

ADJUSTER ASSY

ADJUSTER ASSY

BOLT, FLANGE

COVER,2

RIVET, BLIND(EU0,USA)

SEAT BACK ASSY

SEAT ASSY 2

FRAME, SEAT 2

GROMMET

PLUG

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE

BOLT, FLANGE
