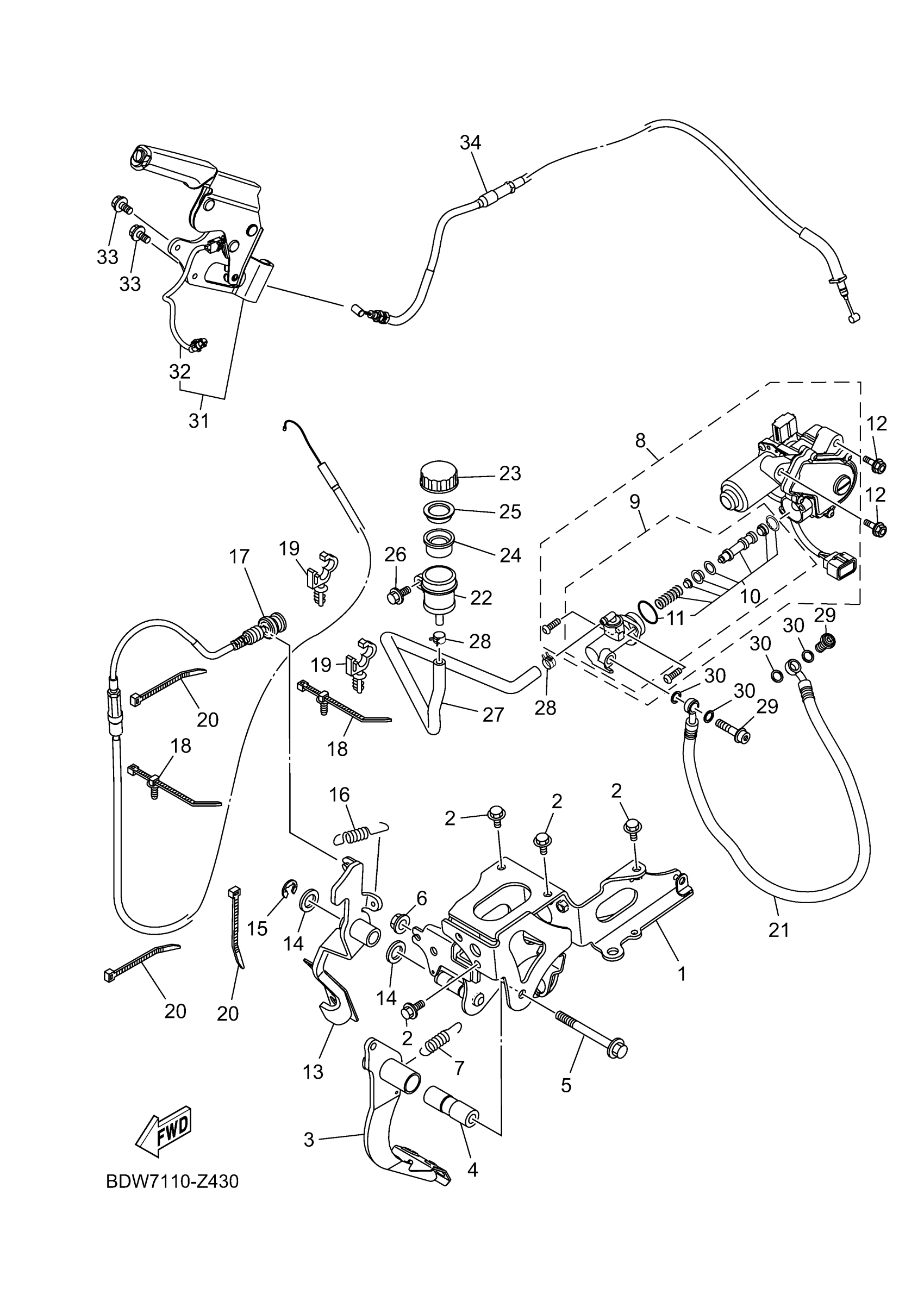

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 PEDAL WIRE Diagram
#
1
BRACKET,PEDL SUPRT
B57-F2548-01-00
$81.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
PEDAL, BRAKE
2HC-F7200-00-00
Unavailable
4
COLLAR
90387-10843-00
Unavailable
5
95812-10090
95812-10090-00
$2.70
6
NUT, S/L FLANGE
95602-10200-00
$4.82
7
SPRING, TENSION
90506-23022-00
$5.49
8
CLUTCH ACTUATOR ASSY
B57-82460-03-00
$1,307.99
9
. MASTER CLUTCH SUB ASSY
B57-8V645-09-00
Unavailable
10
.. MASTER CYLINDER KIT
B57-8V099-09-00
Unavailable
11
O-RING (22F)
93210-25552-00
$13.49
12
BOLT, WASHER BASED (11H)
90105-08211-00
$3.23
13
ACCEL PEDAL ASSY
2HC-F7801-01-00
Unavailable
14
WASHER, PLATE
90201-15018-00
$7.49
15
CIRCLIP (122)
93430-12008-00
$8.49
16
SPRING, TENSION
90506-23022-00
$5.49
17
WIRE, THROTTLE 1
2HC-26311-13-00
Unavailable
18
CLAMP
5B4-F1338-00-00
Unavailable
19
CLAMP
90464-12830-00
Unavailable
20
CLAMP
90464-48800-00
Unavailable
21
HOSE, CLUTCH 1
B57-26472-00-00
Unavailable
22
TANK, RESERVOIR
5JJ-25894-01-00
Unavailable
23
CAP, RESERVOIR
3XP-25852-50-00
Unavailable
24
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
Unavailable
25
BUSH,DIAPHRAGM
2VN-25855-00-00
Unavailable
26
BOLT, WITH WASHER
90119-06137-00
Unavailable
27
HOSE, RESERVOIR
BDW-25895-00-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
BOLT, UNION
90401-10172-00
Unavailable
30
WASHER, PLATE(481)
90201-10118-00
Unavailable
31
PARKING LEVER ASSY
BDW-F5690-00-00
Unavailable
32
SWITCH COMP.
B4J-H251S-00-00
Unavailable
33
BOLT, FLANGE
95817-06012-00
Unavailable
34
WIRE, BRAKE 1
BDW-26341-00-00
Unavailable
