- YXZ10YEXRL (YXZ1000R SS) BDW9 2024
MIDDLE DRIVE GEAR

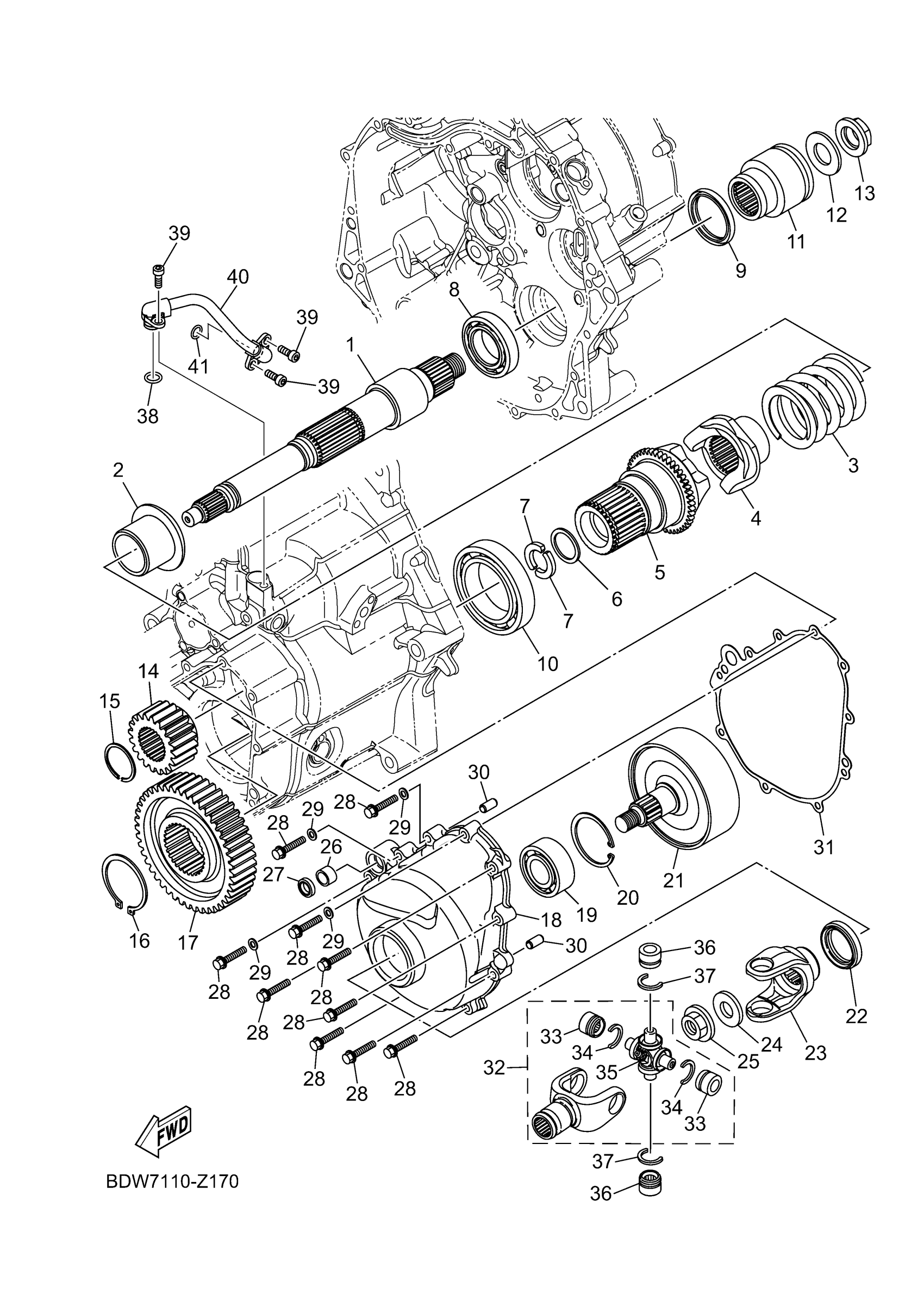

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 MIDDLE DRIVE GEAR Diagram
#
1
SHAFT
BDW-17523-00-00
Unavailable
2
HOLDER
BDW-17524-00-00
Unavailable
3
SPRING, DAMPER
BDW-17528-00-00
Unavailable
4
CAM, DRIVEN
BDW-17527-00-00
Unavailable
5
CAM, DRIVE
BDW-17526-00-00
Unavailable
6
WASHER, PLATE
90201-27014-00
$33.99
7
WASHER, THRUST
23P-17529-00-00
$33.99
8
BEARING
93306-00715-00
Unavailable
9
OIL SEAL
93105-45018-00
$9.49
10
BEARING
93306-01102-00
Unavailable
11
COUPLING
BDW-17832-00-00
$221.99
12
WASHER, PLATE
90201-22019-00
$8.49
13
NUT
90179-22330-00
Unavailable
14
GEAR, MIDDLE DRIVE (20T)
BDW-17582-00-00
$120.99
15
CIRCLIP (371)
93440-34025-00
$7.49
16
CIRCLIP (8L9)
93410-52061-00
Unavailable
17
GEAR, MIDDLE DRIVEN (45T)
BDW-17583-00-00
Unavailable
18
HOUSING, BEARING
BDW-17521-00-00
Unavailable
19
BEARING
93305-20510-00
Unavailable
20
CIRCLIP(26H)
99009-52500-00
Unavailable
21
SHAFT ASSY 1
BDW-46380-00-00
Unavailable
22
OIL SEAL (34X46X10.5-306)
93102-34095-00
Unavailable
23
YOKE,JOINT 2
2HC-17576-00-00
Unavailable
24
WASHER, PLATE(10L)
90201-165H4-00
Unavailable
25
NUT
90179-16004-00
Unavailable
26
BEARING
93317-11295-00
Unavailable
27
OIL SEAL (4G0)
93102-12224-00
Unavailable
28
BOLT, FLANGE DEEP RECESS
95E32-06030-00
Unavailable
29
GASKET 256113960000
90430-06014-00
Unavailable
30
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
31
GASKET
BDW-17818-00-00
Unavailable
32
CROSS JOINT COMP. 2
2HC-46107-00-00
Unavailable
33
BEARING
93399-99948-00
Unavailable
34
CIRCLIP (4X7)
93440-20088-00
Unavailable
35
SPIDER
5GT-46187-00-00
Unavailable
36
BEARING
93399-99948-00
Unavailable
37
CIRCLIP (4X7)
93440-20088-00
Unavailable
38
O-RING(3LD)
93210-12790-00
Unavailable
39
BOLT,SOCKET
91317-06016-00
Unavailable
40
PIPE,DELIVERY
BDW-17887-00-00
Unavailable
41
O-RING (4G0)
93210-11453-00
Unavailable
