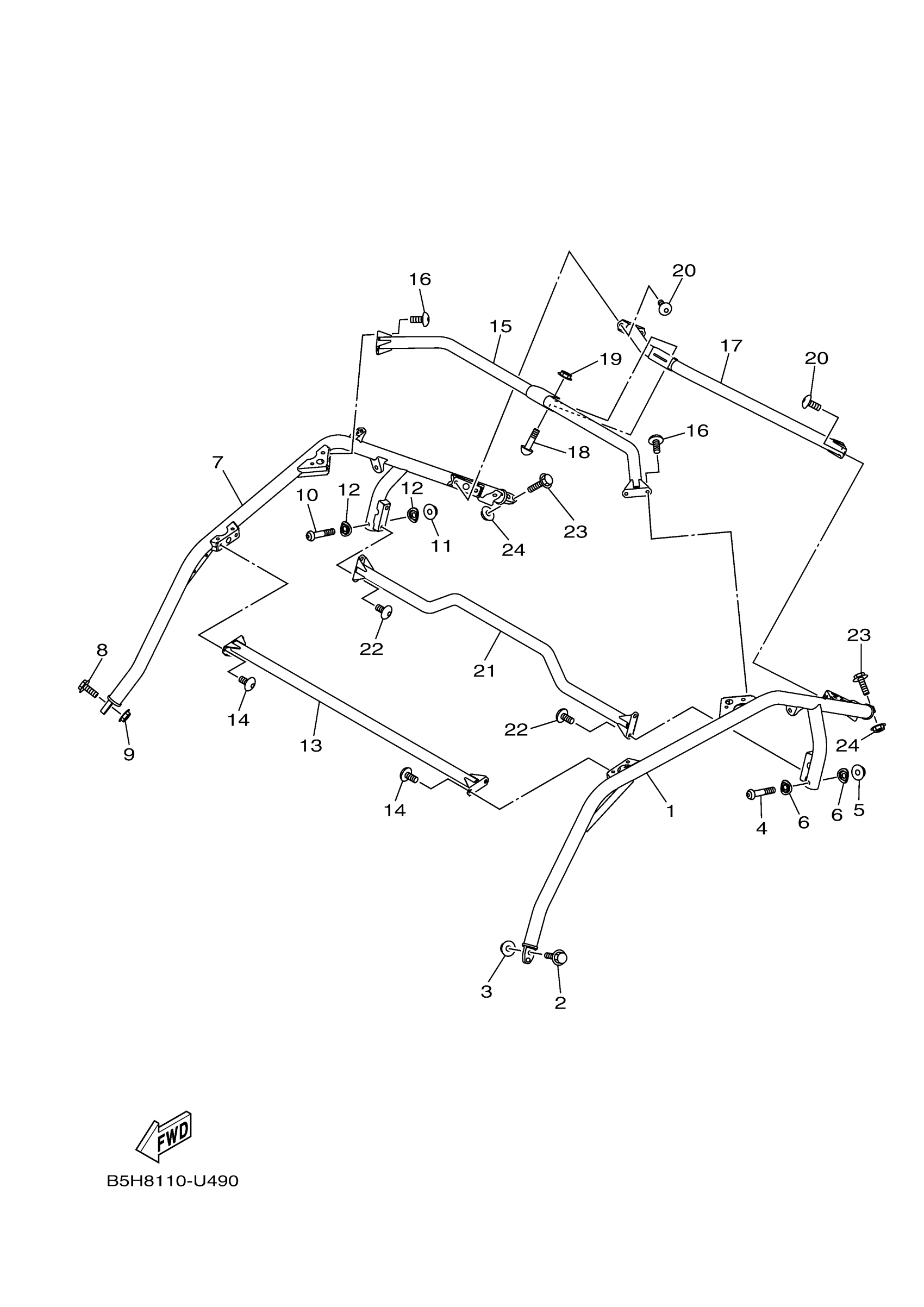

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$281.53

2

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

3

NUT, SELF-LOCKING

90185-10819-00

$0.88

4

BOLT,BUTTON

92017-10060-00

$4.40

5

NUT, SELF-LOCKING

90185-10819-00

$0.88

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$281.53

8

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

9

NUT, SELF-LOCKING

90185-10819-00

$0.88

10

BOLT,BUTTON

92017-10060-00

$4.40

11

NUT, SELF-LOCKING

90185-10819-00

$0.88

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

BAS-K8392-00-00

$147.57

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$157.65

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT,BUTTON

92017-10060-00

$4.40

19

NUT, SELF-LOCKING

90185-10819-00

$0.88

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.17

23

BOLT, FLANGE(4GB)

95817-10045-00

$4.23

24

NUT, SELF-LOCKING

90185-10819-00

$0.88
