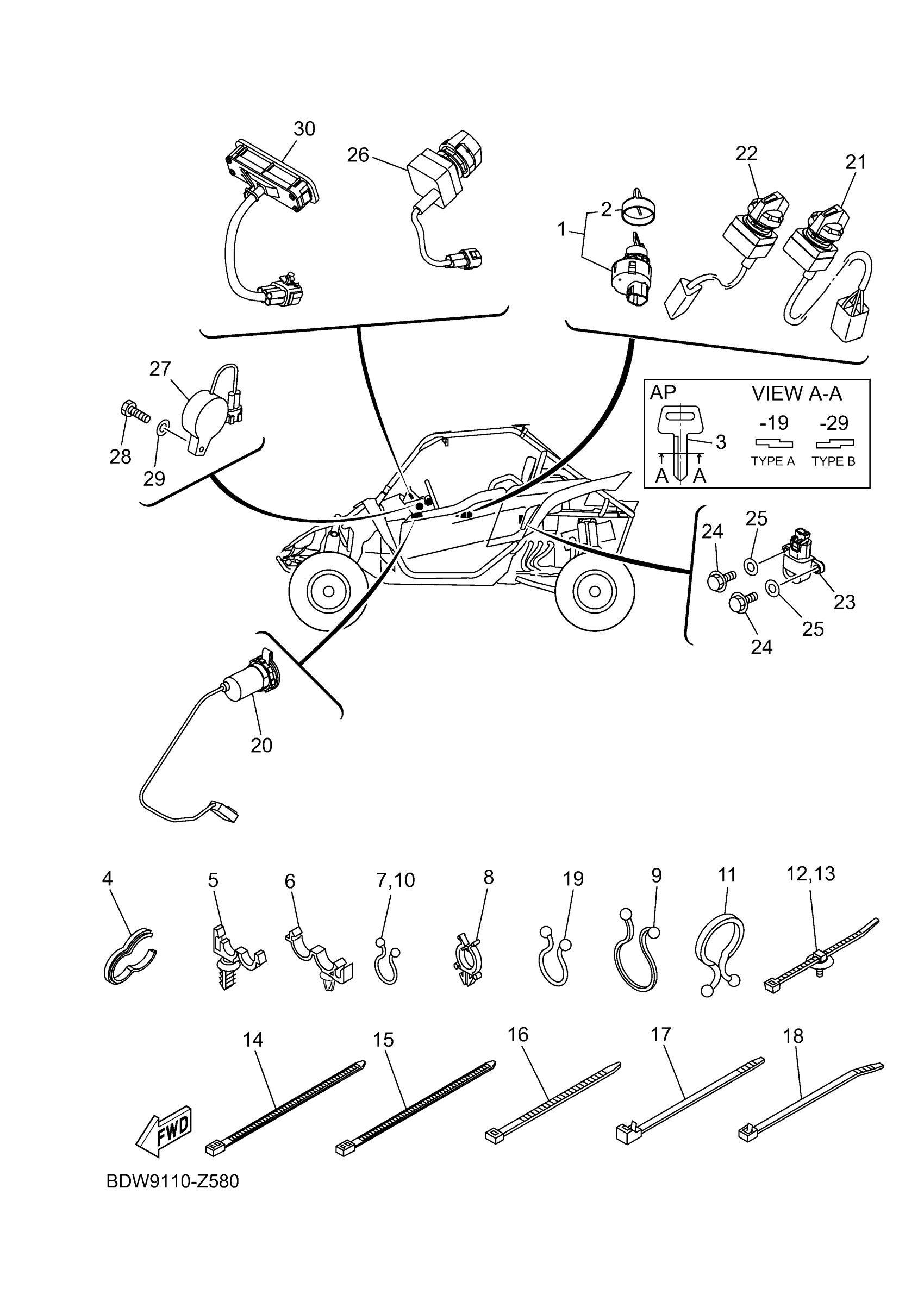

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 ELECTRICAL 3 Diagram
#
1
MAIN SWITCH ASSY
1XD-H2510-11-00
$32.99
2
CAP, KEY
1XD-H2579-10-00
$8.49
3
KEY, MAIN SWITCH
1XD-H2511-19-00
$7.49
3
KEY, MAIN SWITCH
1XD-H2511-29-00
$7.49
4
CLAMP(53Y)
90464-15065-00
Unavailable
5
CLAMP
90464-12830-00
$1.49
6
CLAMP
90464-20010-00
$3.23
7
CLAMP
90464-14800-00
$3.40
8
CLAMP
90464-25826-00
Unavailable
9
CLAMP (8M1)
90464-30040-00
$8.49
10
CLAMP
90464-20804-00
Unavailable
11
CLAMP
90464-37257-00
Unavailable
12
CLAMP
5B4-F1338-00-00
$3.33
13
CLAMP
1NS-F1338-00-00
$3.33
14
CLAMP(JN6)
90464-31827-00
$3.40
15
CLAMP(JN6)
90464-40825-00
Unavailable
16
CLAMP
90464-48800-00
Unavailable
17
CLAMP
90464-51800-00
Unavailable
18
CLAMP
90464-76800-00
Unavailable
19
CLAMP(2LM)
90464-44109-00
Unavailable
20
TERMINAL COMP.
1HP-H254B-10-00
Unavailable
21
SWITCH, LAMP
2HC-82526-01-00
Unavailable
22
SWITCH, SELECT
2HC-87280-01-00
Unavailable
23
SENSOR, LEAN ANGLE
3B4-82576-10-00
Unavailable
24
BOLT(6A1)
97095-05016-00
Unavailable
25
WASHER, PLAIN (646)
92990-05600-00
Unavailable
26
SWITCH, SELECT
2HC-87280-01-00
Unavailable
27
BUZZER
2MB-83383-00-00
Unavailable
28
BOLT(3JK)
97027-05020-00
Unavailable
29
WASHER, PLAIN (646)
92990-05600-00
Unavailable
30
PILOT LIGHT ASSY
BDW-83530-00-00
Unavailable
