Description

Price

1

BOX, CARRIER UNDER

B5H-F4852-01-00

$55.99

2

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

3

NUT, SPRING

90183-060A6-00

$5.49

4

GRILL, AIR INTAKE

B5H-F837R-00-00

$7.49

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

STAY, CARRIER

B5H-F1271-00-00

$13.99

7

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

8

STAY CARRIER 2

B5H-F137H-00-00

$13.99

9

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

10

CARRIER, FRONT

B5H-F4841-01-00

$43.99

11

BRACKET 1

B5H-F8426-00-00

$5.49

12

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

13

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

14

NUT, SPRING

90183-060A6-00

$5.49

15

PANEL, FRAME RR.

B5H-F1235-00-00

$26.99

16

STAY, SUPPORT 2

B5H-F832T-00-00

Unavailable

17

NUT, SPRING

90183-060A6-00

$5.49

18

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

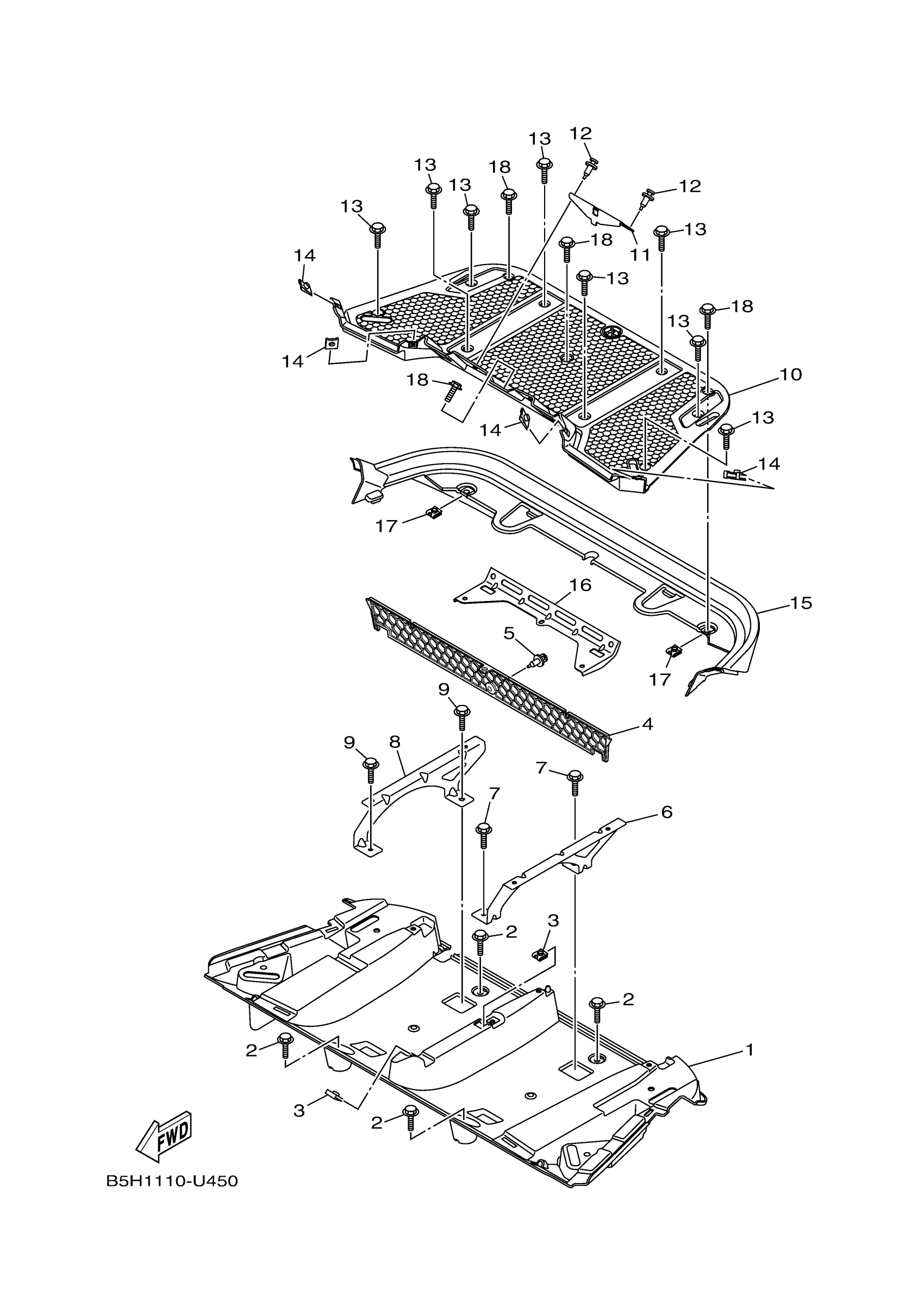

Yamaha YXZ10YEXRL (YXZ1000R SS) BDW9 2024 CARRIER Diagram

BOX, CARRIER UNDER

BOLT, WITH WASHER (30X)

NUT, SPRING

GRILL, AIR INTAKE

RIVET,SPEC'L SHAPE

STAY, CARRIER

BOLT, WITH WASHER (30X)

STAY CARRIER 2

BOLT, WITH WASHER (30X)

CARRIER, FRONT

BRACKET 1

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER (30X)

NUT, SPRING

PANEL, FRAME RR.

STAY, SUPPORT 2

NUT, SPRING

BOLT, WITH WASHER (30X)
