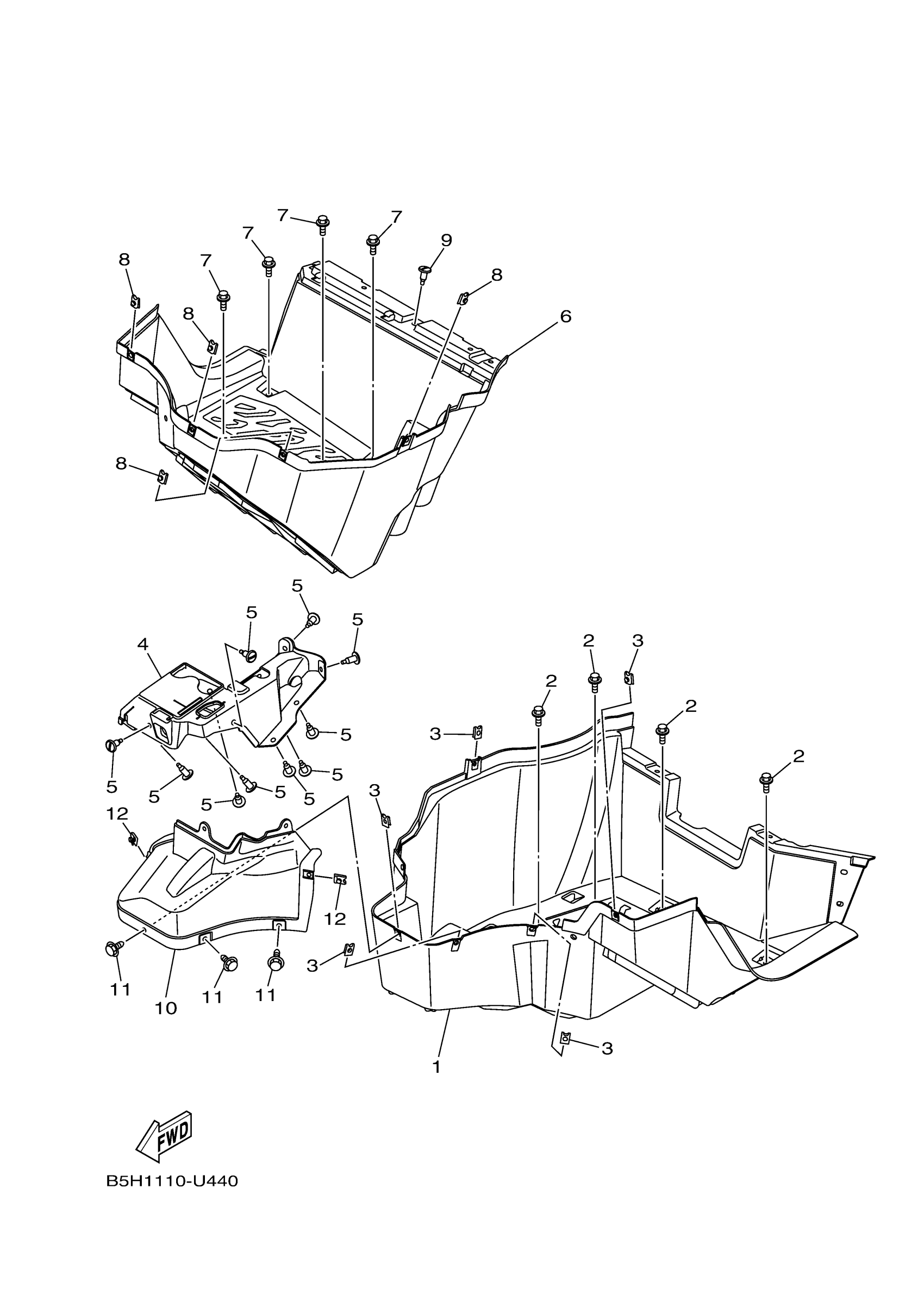

Yamaha YXZ10YEXPL (YXZ1000R SS) BASS 2023 STAND & FOOTREST Diagram

#

Description

Price

1

FOOTREST 1

2HC-F7411-00-00

$81.97

2

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

3

NUT, SPRING

90183-062A1-00

$1.75

4

COVER, DUST

2HC-F7286-00-00

Unavailable

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

FOOTREST 2

2HC-F7421-00-00

$88.85

7

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

8

NUT, SPRING

90183-062A1-00

$1.75

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

COVER, PEDAL

2HC-F7854-00-00

$12.76

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

NUT, SPRING

90183-062A1-00

$1.75
