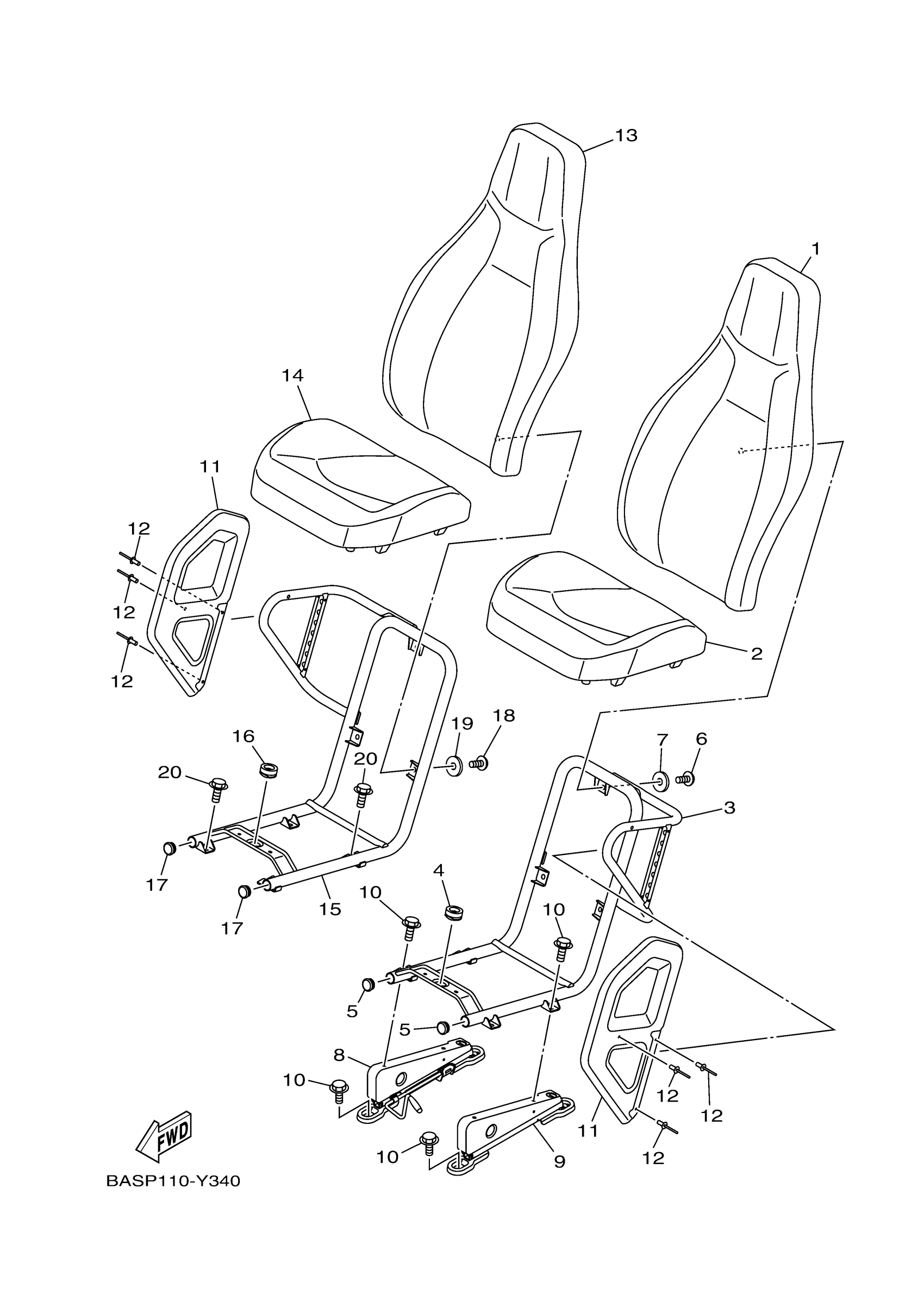

Yamaha YXZ10YEXPL (YXZ1000R SS) BASS 2023 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAS-F4790-60-00

$632.99

2

SEAT ASSY

BAS-F4700-60-00

$663.99

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

$2.96

5

PLUG

2HC-F2417-00-00

$1.97

6

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

7

WASHER, PLATE

90201-06095-00

$5.87

8

ADJUSTER ASSY

BAS-F7270-00-00

$344.14

9

ADJUSTER ASSY

BAS-F7260-00-00

$134.47

10

BOLT, FLANGE

95817-08012-00

$3.71

11

COVER,2

2HC-F475X-01-00

$135.39

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

SEAT BACK ASSY

BAS-F4790-60-00

$632.99

14

SEAT ASSY

BAS-F4700-60-00

$663.99

15

FRAME, SEAT 2

2HC-F473D-01-00

$249.32

16

GROMMET

1XD-F4742-00-00

$2.96

17

PLUG

2HC-F2417-00-00

$1.97

18

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

19

WASHER, PLATE

90201-06095-00

$5.87

20

BOLT, FLANGE

95817-08012-00

$3.71
