- YXZ10YEXNL (YXZ1000R SS) BASM 2022
FRONT DIFFERENTIAL

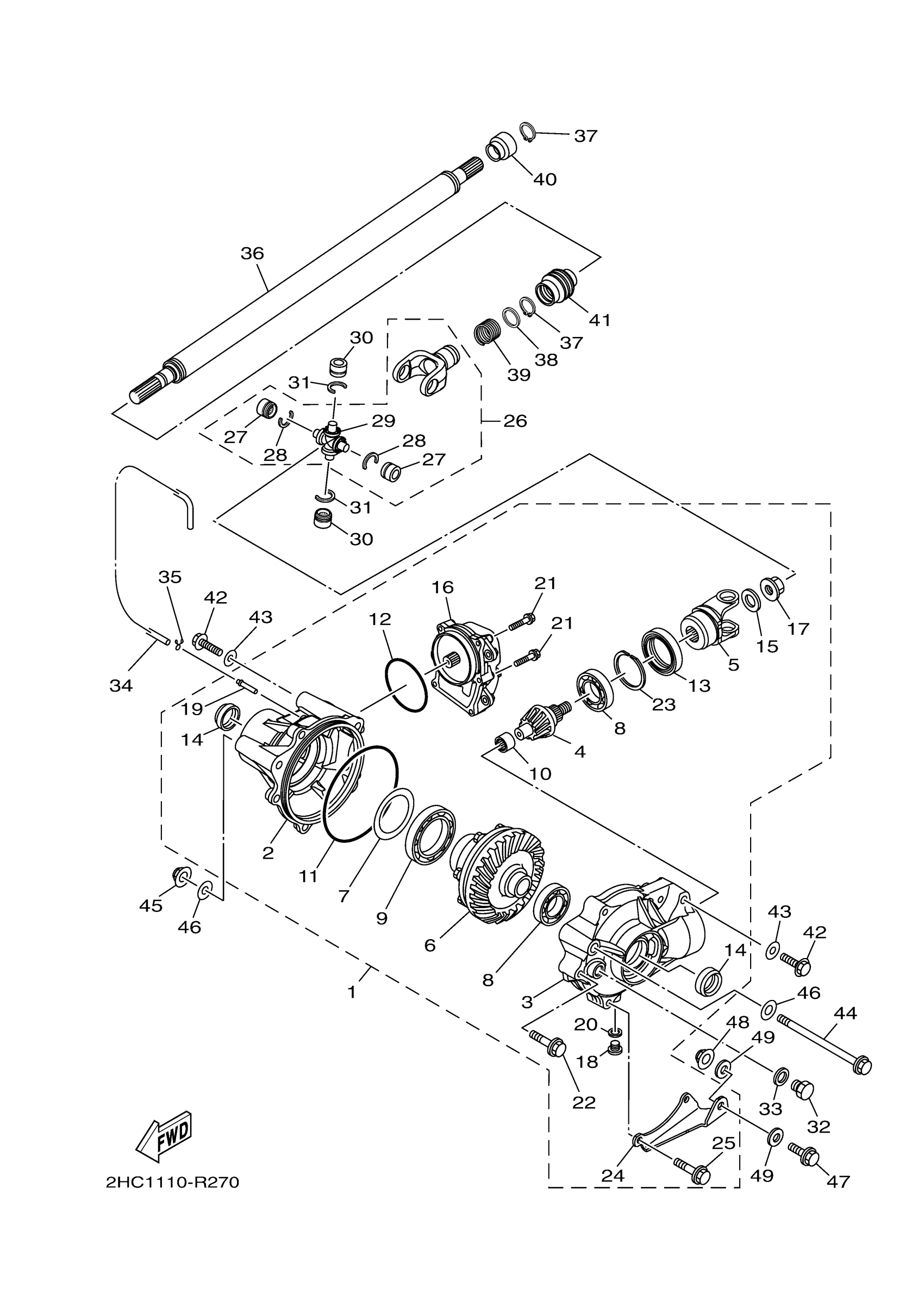

Yamaha YXZ10YEXNL (YXZ1000R SS) BASM 2022 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE GEAR CASE COMP.
2HC-46160-12-00
$1,854.99
2
HOUSING, BEARING 2
1XD-46162-00-00
$394.99
3
HOUSING, SHAFT DRIVE 2
2HC-46161-00-00
Unavailable
4
PINION, DRIVE 2
2HC-46141-10-00
$323.99
5
YOKE, JOINT 2
4S1-46146-01-00
Unavailable
6
LIMITED SLIP DIFF. ASSY
2HC-46470-10-00
$1,027.99
7
SHIM, RING GEAR (0.1T)
3B4-46117-00-00
$8.99
7
SHIM, RING GEAR (0.2T)
3B4-46117-10-00
Unavailable
7
SHIM, RING GEAR (0.3T)
3B4-46117-20-00
Unavailable
7
SHIM, RING GEAR (0.4T)
3B4-46117-30-00
Unavailable
8
BEARING(2HR)
93306-00612-00
$47.99
9
BEARING 1
3B4-46164-00-00
$86.99
10
BEARING 3
3B4-46166-00-00
$27.99
11
O-RING 1
3B4-46134-00-00
$18.49
12
O-RING 2
3B4-46135-00-00
$5.49
13
OIL SEAL
93105-46001-00
Unavailable
14
SEAL,OIL 1
3B4-46163-00-00
Unavailable
15
WASHER, PLATE
90201-14021-00
Unavailable
16
SERVO MOTOR COMP
1HP-4616A-00-00
Unavailable
17
NUT 1
4WV-46145-11-00
Unavailable
18
PLUG, STRIGHT SCREW(5GH1)
90340-10001-00
Unavailable
19
TUBE
5GH-46293-00-00
Unavailable
20
GASKET
90430-10003-00
Unavailable
21
BOLT, FLANGE
95812-06014-00
Unavailable
22
BOLT, FLANGE
95817-08040-00
Unavailable
23
RING,HOLE SNAP 1
3B4-46142-00-00
Unavailable
24
PLATE COVER
99999-04573-00
Unavailable
25
BOLT
2HC-12228-00-00
Unavailable
26
CROSS JOINT COMP. 2
2HC-46107-00-00
Unavailable
27
BEARING
93399-99948-00
Unavailable
28
CIRCLIP (4X7)
93440-20088-00
Unavailable
29
SPIDER
5GT-46187-00-00
Unavailable
30
BEARING
93399-99948-00
Unavailable
31
CIRCLIP (4X7)
93440-20088-00
Unavailable
32
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
33
GASKET
214-11198-01-00
Unavailable
34
HOSE (L1500)
90445-07047-00
Unavailable
35
CLIP (1J7)
90467-07029-00
Unavailable
36
DRIVE SHAFT COMP.
2HC-G6109-04-00
Unavailable
37
CIRCLIP(1EY)
99009-19400-00
Unavailable
38
WASHER PLATE 132172160000
90201-20266-00
Unavailable
39
SPRING, COMPRESSION
90501-235L9-00
Unavailable
40
SEAL 2
5GT-46137-00-00
Unavailable
41
SEAL 1
5GT-46136-00-00
Unavailable
42
BOLT, FLANGE
90105-10255-00
Unavailable
43
WASHER, PLATE
90201-10035-00
Unavailable
44
BOLT, FLANGE
90105-12066-00
Unavailable
45
NUT, SELF-LOCKING
90185-12002-00
Unavailable
46
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
47
BOLT
90101-10038-00
Unavailable
48
NUT, SELF-LOCKING
90185-10011-00
Unavailable
49
WASHER, PLATE
90201-10034-00
Unavailable
