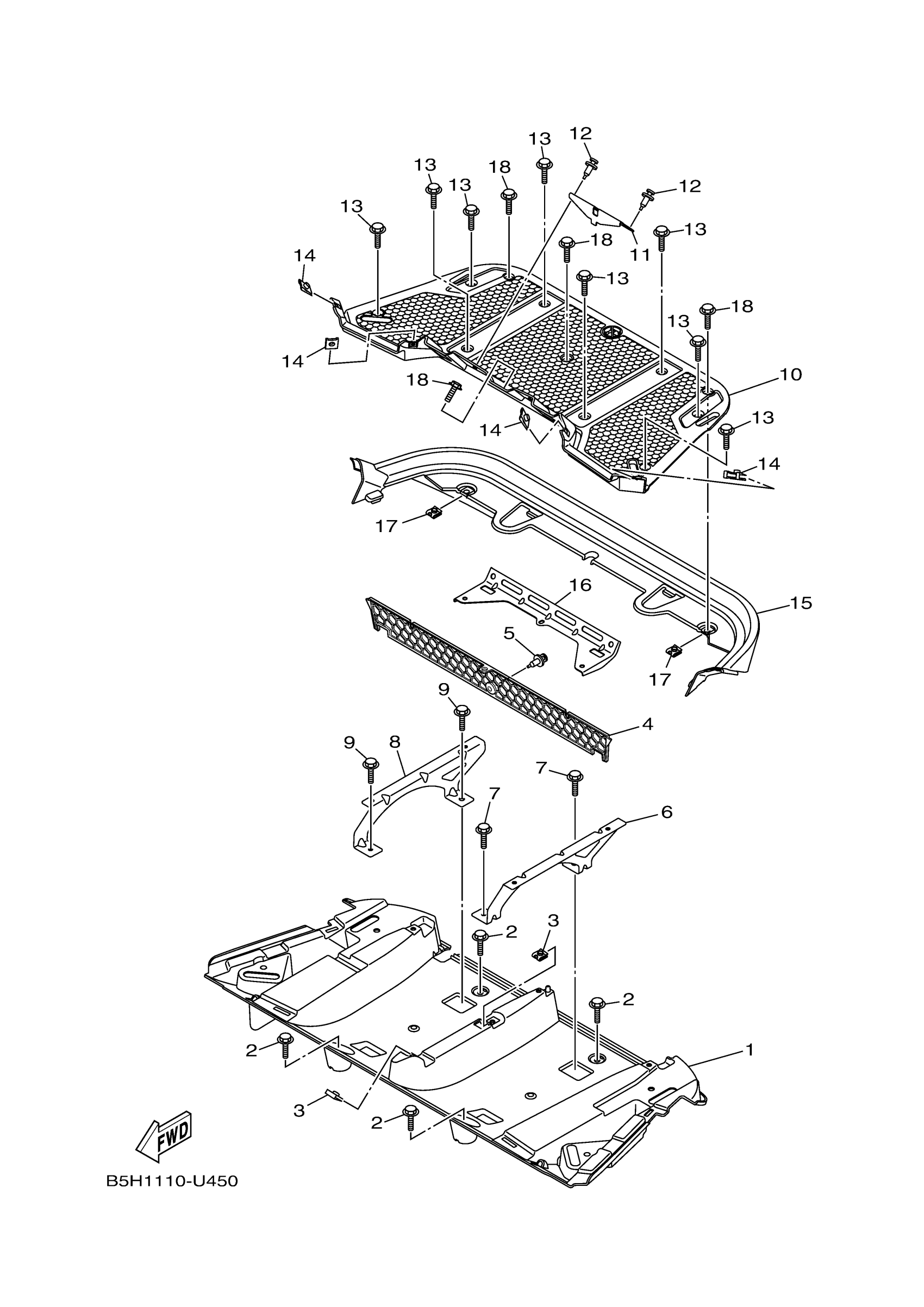

Yamaha YXZ10YEXNL (YXZ1000R SS) BASM 2022 CARRIER Diagram

#

Description
Price

1

BOX, CARRIER UNDER

B5H-F4852-01-00

$45.04

2

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

3

NUT, SPRING

90183-060A6-00

$3.90

4

GRILL, AIR INTAKE

B5H-F837R-00-00

$5.19

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

STAY, CARRIER

B5H-F1271-00-00

$10.69

7

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

8

STAY CARRIER 2

B5H-F137H-00-00

$10.69

9

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

10

CARRIER, FRONT

B5H-F4841-01-00

$36.63

11

BRACKET 1

B5H-F8426-00-00

$4.31

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

14

NUT, SPRING

90183-060A6-00

$3.90

15

PANEL, FRAME RR.

B5H-F1235-00-00

$20.48

16

STAY, SUPPORT 2

B5H-F832T-00-00

Unavailable

17

NUT, SPRING

90183-060A6-00

$3.90

18

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88
