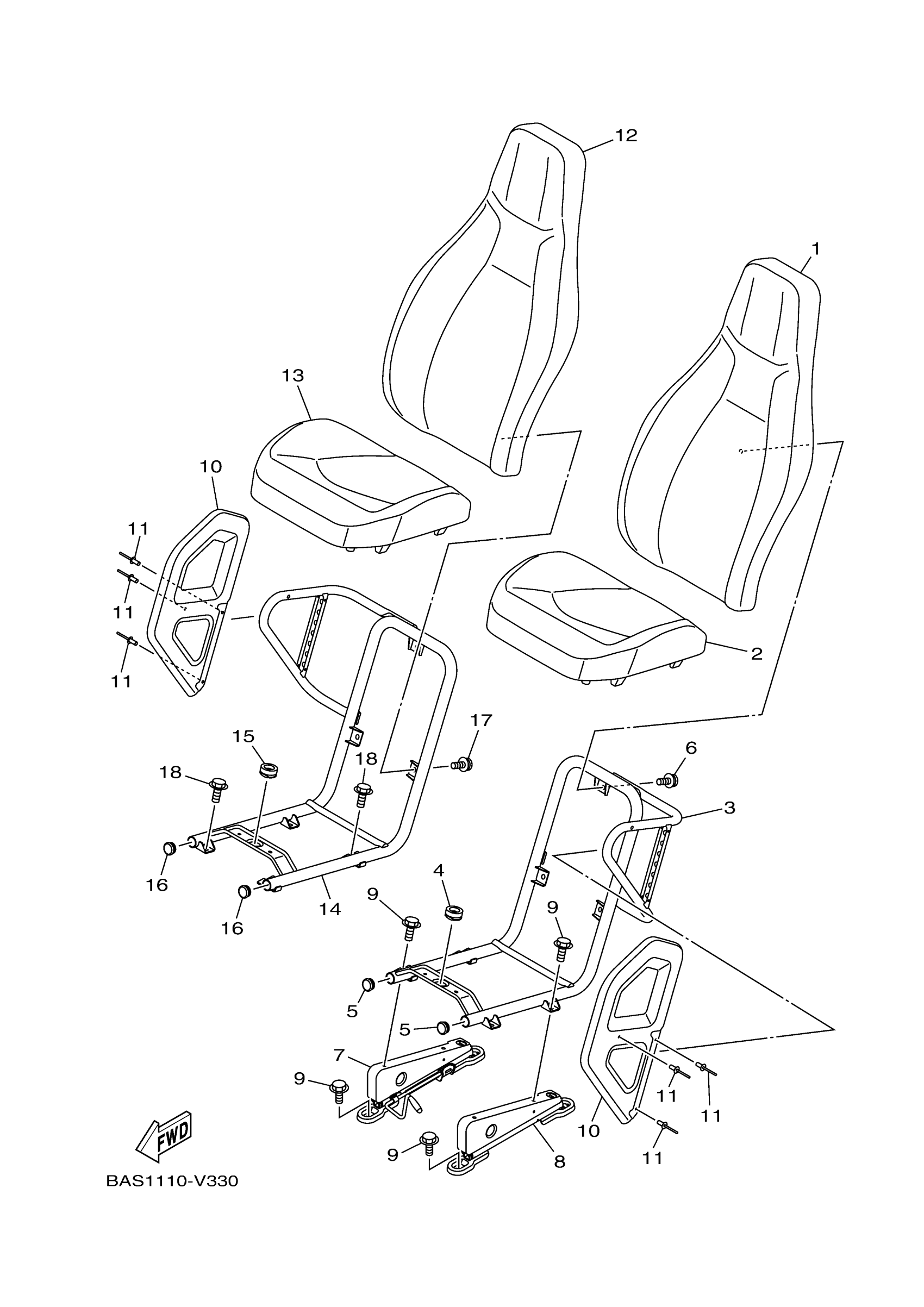

Yamaha YXZ10YEXML (YXZ1000R EPS SS) BASE 2021 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAS-F4790-60-00

$623.04

2

SEAT ASSY

BAS-F4700-60-00

$649.56

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

Unavailable

5

PLUG

2HC-F2417-00-00

$1.91

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

ADJUSTER ASSY

BAS-F7270-00-00

$334.01

8

ADJUSTER ASSY

BAS-F7260-00-00

$130.51

9

BOLT, FLANGE

95817-08012-00

$3.81

10

COVER,2

2HC-F475X-01-00

$131.41

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

SEAT BACK ASSY

BAS-F4790-60-00

$623.04

13

SEAT ASSY

BAS-F4700-60-00

$649.56

14

FRAME, SEAT 2

2HC-F473D-01-00

$241.99

15

GROMMET

1XD-F4742-00-00

Unavailable

16

PLUG

2HC-F2417-00-00

$1.91

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

18

BOLT, FLANGE

95817-08012-00

$3.81
