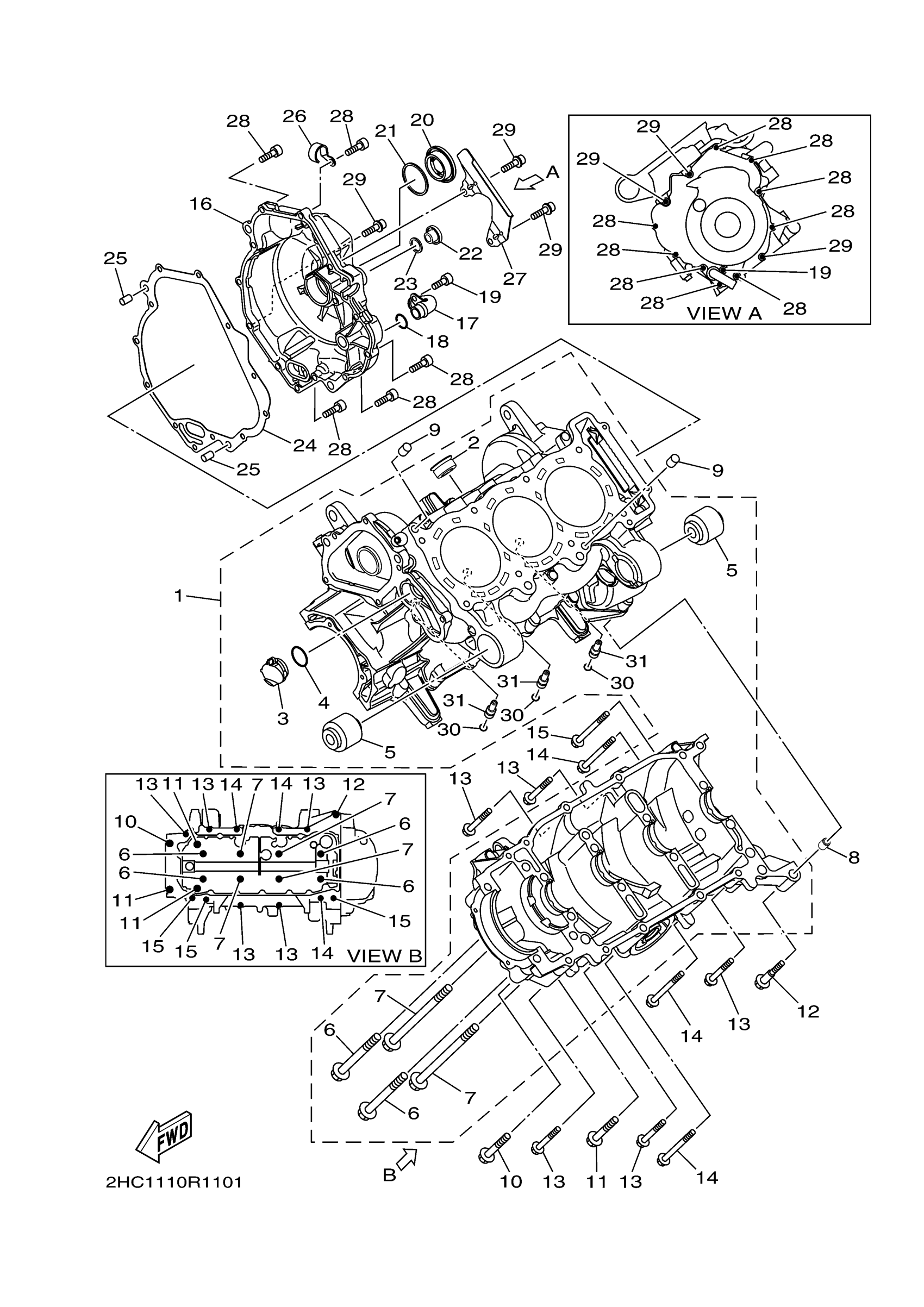

Yamaha YXZ10YEXML (YXZ1000R EPS SS) BASE 2021 CRANKCASE Diagram
#
1
CRANKCASE ASSY
2HC-15109-07-00
$2,180.99
2
PLUG, STRAIGHT SCREW
90340-27129-00
$5.60
3
PLUG, BLIND 1
8ES-15167-00-00
$11.99
4
O-RING(1HX)
93210-24709-00
$9.49
5
COLLAR
2HC-15541-00-00
$29.99
6
BOLT, WITH WASHER
90119-09004-00
$11.49
7
BOLT, WITH WASHER
90119-09011-00
$42.99
8
PIN, DOWEL(3VD)
99530-10114-00
$2.55
9
PIN, DOWEL(3VD)
99530-10114-00
$2.55
10
BOLT, FLANGE
95817-08055-00
$4.21
11
BOLT, FLANGE(JN5)
95817-08070-00
$3.76
12
BOLT
90109-06185-00
$8.49
13
BOLT, FLANGE
95812-06055-00
$1.75
14
BOLT, FLANGE
95812-06080-00
$8.49
15
BOLT, FLANGE
95817-06080-00
$4.72
16
COVER, CRANKCASE 2
B5H-15421-00-00
Unavailable
17
CONNECTOR, SUCTION PIPE
2HC-13115-00-00
Unavailable
18
O-RING
93210-14003-00
Unavailable
19
BOLT (33M)
91312-06014-00
Unavailable
20
PLUG, STRAIGHT SCREW
90340-36004-00
Unavailable
21
O-RING
93210-35804-00
Unavailable
22
PLUG, STRAIGHT SCREW
90340-14016-00
Unavailable
23
O-RING (2H9)
93210-14369-00
Unavailable
24
GASKET, CRANKCASE
2HC-15461-00-00
Unavailable
25
PIN, DOWEL
99530-08012-00
Unavailable
26
CLAMP(4AJ)
90462-08225-00
Unavailable
27
PLATE
B5H-15191-00-00
Unavailable
28
BOLT,SOCKET
91317-06025-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
Unavailable
30
O-RING (210)
93210-04092-00
Unavailable
31
. NOZZLE 3
4XV-15155-00-00
Unavailable
