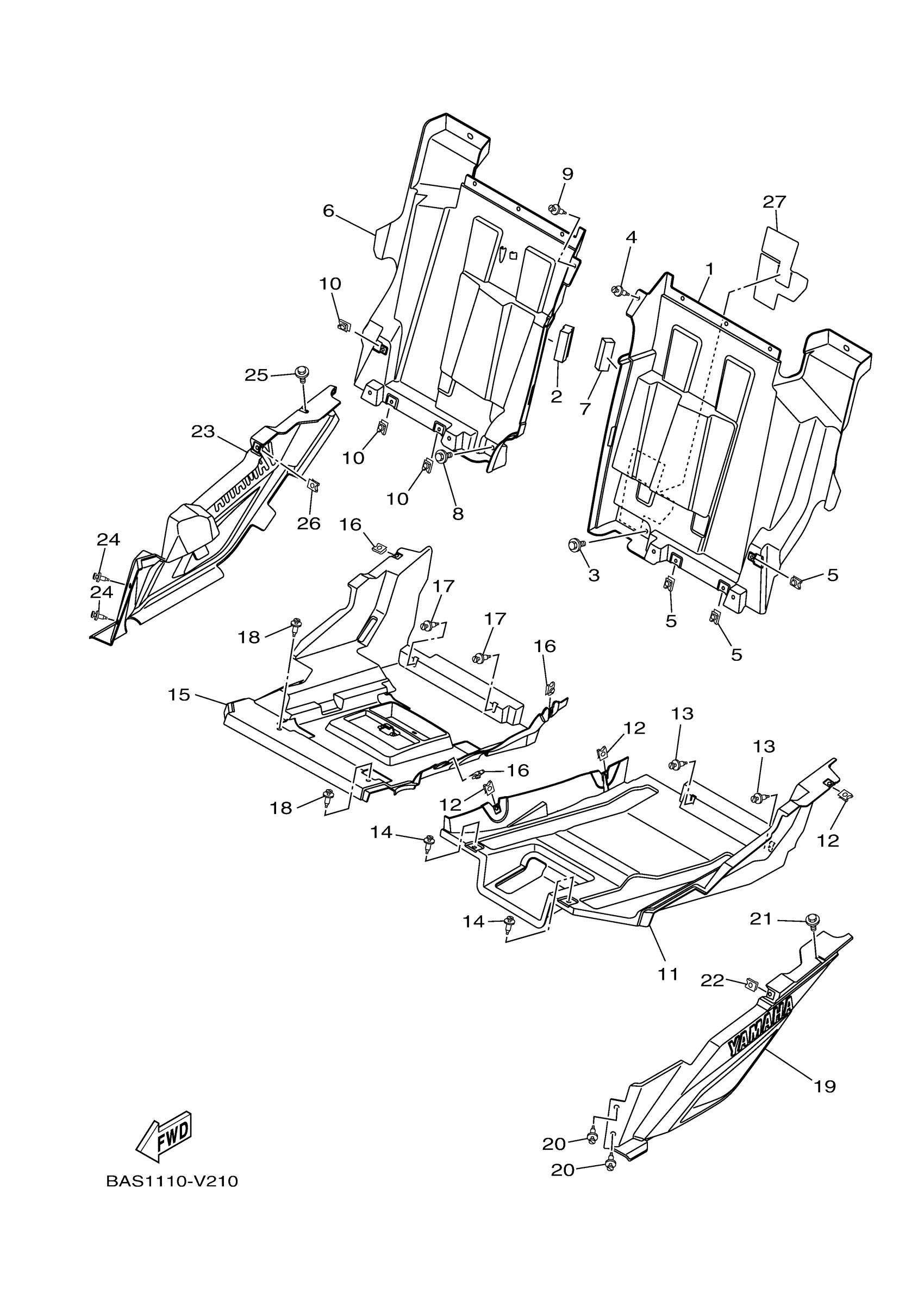

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 SIDE COVER Diagram

#

Description
Price

1

MUD GUARD 1

2HC-F2327-01-00

$48.26

2

DAMPER, PLATE

90520-20007-00

$3.68

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

5

NUT, SPRING

90183-060A6-00

$3.98

6

MUD GUARD

2HC-F2328-01-00

$40.85

7

DAMPER, PLATE

90520-20006-00

$2.58

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

10

NUT, SPRING

90183-060A6-00

$3.98

11

PLATE, UNDER 1

2HC-F84A3-00-00

$50.70

12

NUT, SPRING

90183-060A6-00

$3.98

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

15

PLATE, UNDER 2

2HC-F84A4-00-00

$52.39

16

NUT, SPRING

90183-060A6-00

$3.98

17

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

19

COVER, SIDE 3

2HC-F1731-00-00

Unavailable

20

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

21

BOLT, WITH WASHER

90119-06226-00

$2.12

22

NUT, SPRING

90183-060A6-00

$3.98

23

COVER, SIDE 4

2HC-F1741-00-00

Unavailable

24

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

NUT, SPRING

90183-060A6-00

$3.98

27

INSULATOR, SIDE CO

B5H-F174A-00-00

Unavailable
