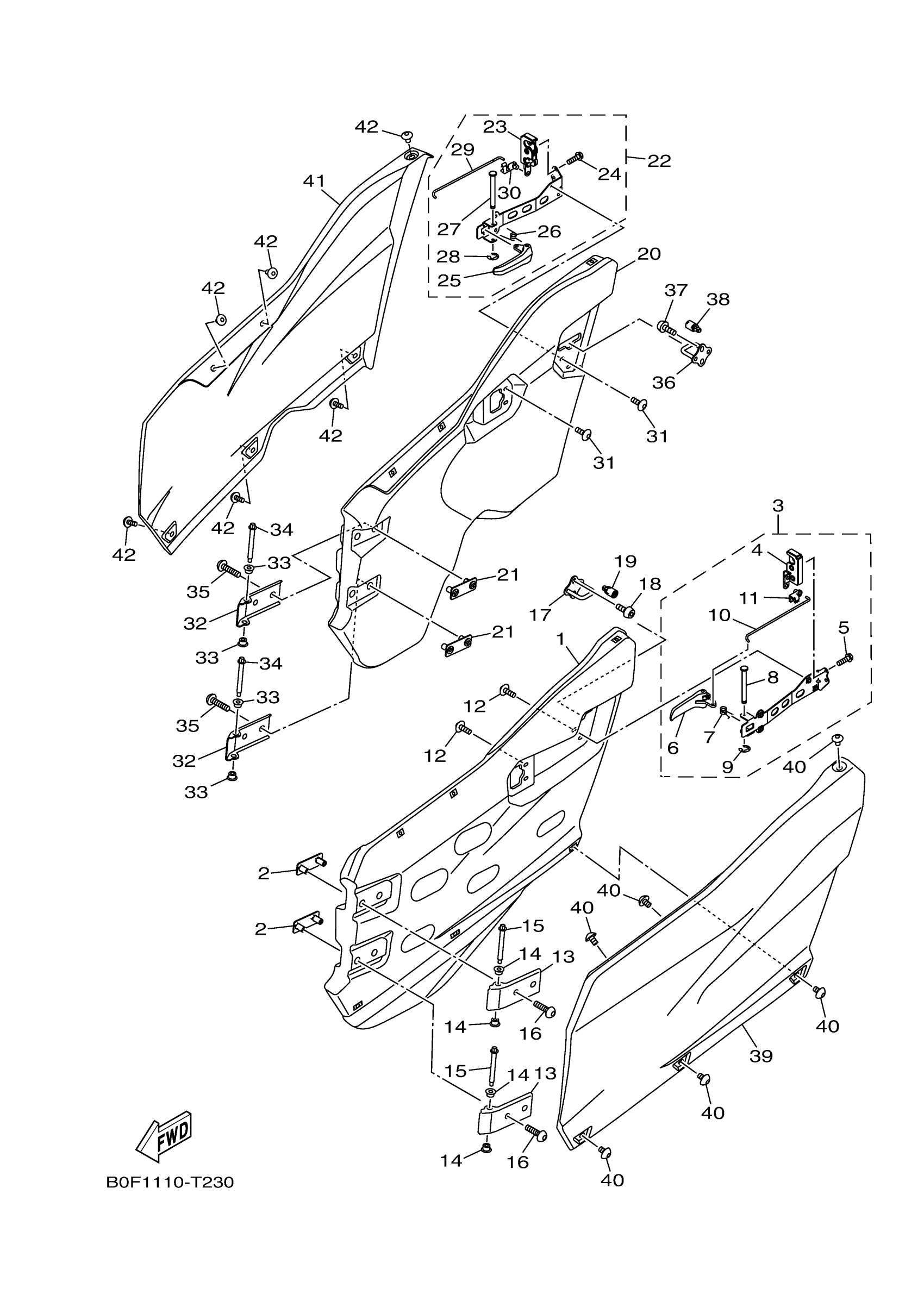

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 SIDE COVER 3 Diagram

#

Description
Price

1

PNL., DOOR FR. LH

2HC-K8557-01-00

$121.05

2

NUT,PLATE

2HC-F1736-00-00

$7.33

3

BODY, LATCH 1

2HC-K7171-00-00

$46.68

4

LOCK ASSY

2HC-F16A0-00-00

Unavailable

5

BOLT, FLANGE

95817-06020-00

$2.57

6

LEVER, LATCH 1

2HC-F17N1-00-00

$5.59

7

SPRING

2HC-F1742-00-00

$2.18

8

. PIN

90249-05801-00

$2.18

9

CIRCLIP (EU0)

99080-04600-00

$1.83

10

. ROD 1

2HC-F7247-00-00

$2.00

11

. CLIP, CABLE

2HC-F2805-00-00

$0.68

12

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.73

13

STAY, FR. DOOR 1

2HC-K8554-00-00

$5.59

14

COLLAR

2HC-F1748-00-00

$2.04

15

BOLT

90109-068A8-00

$2.17

16

BOLT

90109-08856-00

Unavailable

17

LOCK

2HC-F178J-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

19

PAD

2MB-F8378-00-00

Unavailable

20

PNL., DOOR FR. RH

2HC-K8558-01-00

Unavailable

21

NUT,PLATE

2HC-F1736-00-00

$7.33

22

BODY, LATCH 2

2HC-K7172-00-00

Unavailable

23

LOCK ASSY 2

2HC-F16B0-00-00

Unavailable

24

BOLT, FLANGE

95817-06020-00

$2.57

25

LEVER, LATCH 1

2HC-F17N1-00-00

$5.59

26

SPRING

2HC-F1742-00-00

$2.18

27

. PIN

90249-05801-00

$2.18

28

CIRCLIP (EU0)

99080-04600-00

$1.83

29

. ROD 2

2HC-F7248-00-00

$2.00

30

. CLIP, CABLE

2HC-F2805-00-00

$0.68

31

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.73

32

STAY, FR. DOOR 1

2HC-K8554-00-00

$5.59

33

COLLAR

2HC-F1748-00-00

$2.04

34

BOLT

90109-068A8-00

$2.17

35

BOLT

90109-08856-00

Unavailable

36

LOCK

2HC-F178J-00-00

Unavailable

37

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

38

PAD

2MB-F8378-00-00

Unavailable

39

COVER,SIDE1

2HC-F1711-01-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-06181-00

Unavailable

41

COVER,SIDE2

2HC-F1721-01-00

Unavailable

42

BOLT,HEX. SOCKET BUTTON

90111-06181-00

Unavailable
