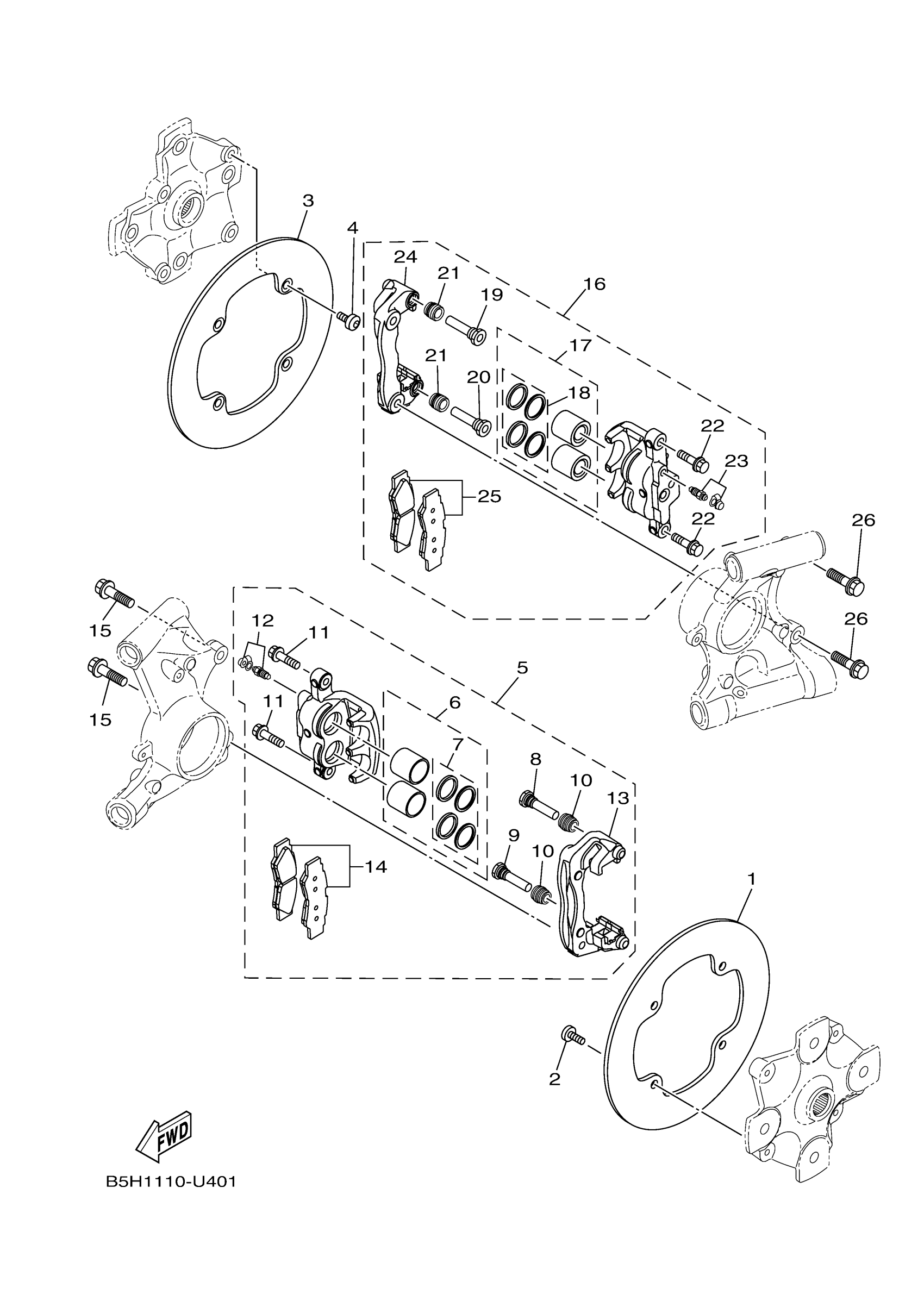

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

2

BOLT

90109-08077-00

$2.83

3

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

4

BOLT

90109-08077-00

$2.83

5

CALIPER ASSY, REAR

B5H-2580V-01-00

Unavailable

6

PISTON ASSY, CALIPER

B5H-25802-10-00

$37.29

7

CALIPER SEAL KIT

3FV-25803-10-00

$7.39

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$3.71

11

BOLT, FITTING

2HC-25833-00-00

$1.73

12

BLEED SCREW KIT

36Y-W0048-00-00

$10.99

13

BRACKET, SUPPORT

2HC-25921-00-00

$79.43

14

BRAKE PAD KIT 2

B5H-25806-01-00

$78.37

15

BOLT, FLANGE

90105-10405-00

$4.49

16

CALIPER ASSY, REAR

B5H-2580W-01-00

Unavailable

17

PISTON ASSY, CALIPER

B5H-25802-10-00

$37.29

18

CALIPER SEAL KIT

3FV-25803-10-00

$7.39

19

BOLT

2HC-25926-00-00

Unavailable

20

BOLT

2HC-25926-10-00

Unavailable

21

BOOT, CALIPER

2HC-25917-00-00

$3.71

22

BOLT, FITTING

2HC-25833-00-00

$1.73

23

BLEED SCREW KIT

36Y-W0048-00-00

$10.99

24

BRACKET, SUPPORT

2HC-25921-00-00

$79.43

25

BRAKE PAD KIT 2

B5H-25806-01-00

$78.37

26

BOLT, FLANGE

90105-10405-00

$4.49
