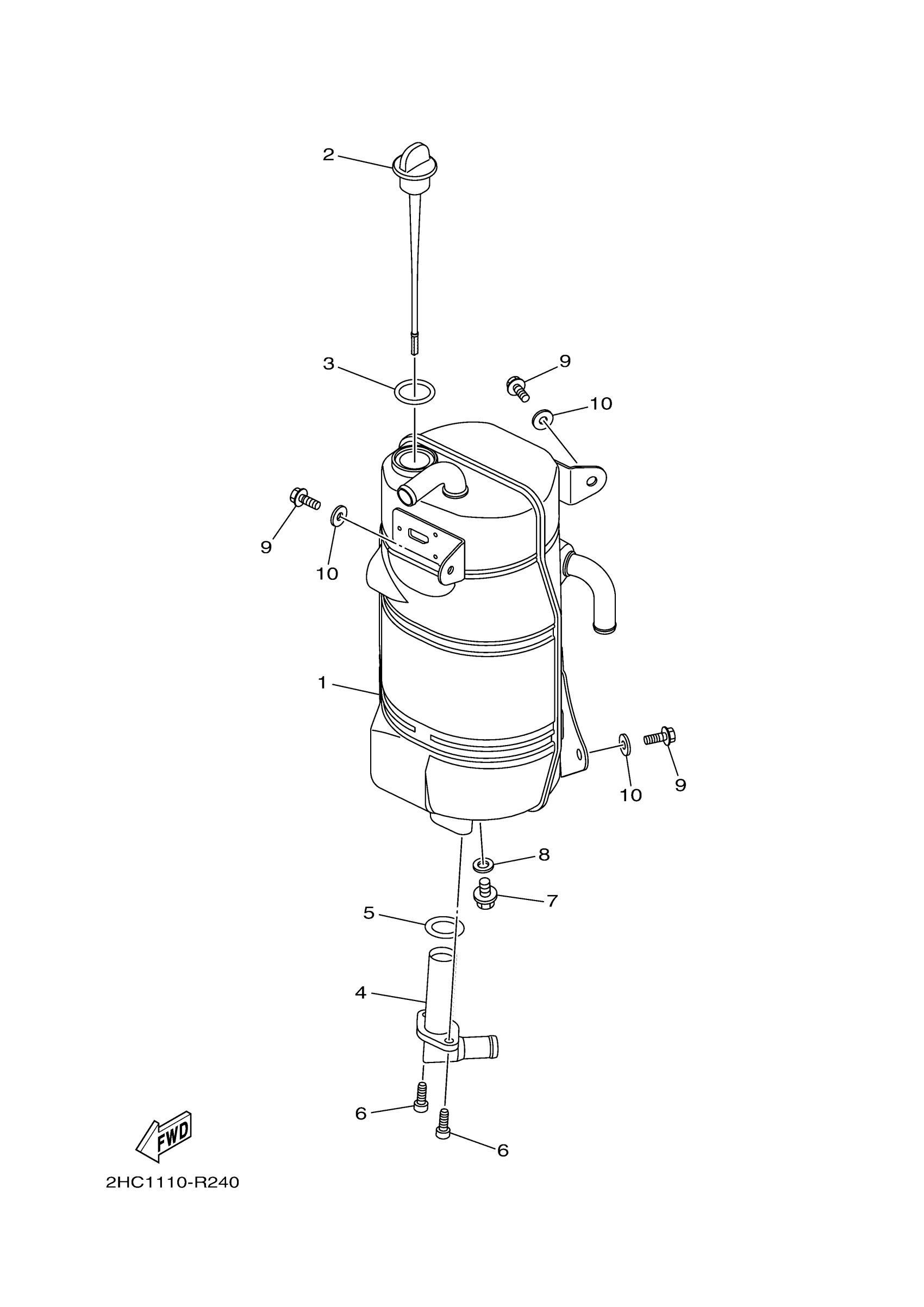

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

2HC-21751-02-00

Unavailable

2

OIL LEVEL GAUGE ASSY

2HC-85720-00-00

$5.66

3

O-RING

93210-22006-00

$5.16

4

OIL PIPE COMP. 2

8GL-13406-00-00

$84.03

5

O-RING

93210-24001-00

$5.63

6

BOLT(3MA)

91312-06016-00

$4.82

7

BOLT, FLANGE

95817-08012-00

$3.78

8

GASKET(3AJ)

90430-08204-00

$6.48

9

BOLT, FLANGE

95817-06016-00

$1.49

10

WASHER, PLATE

90201-06102-00

$2.89
