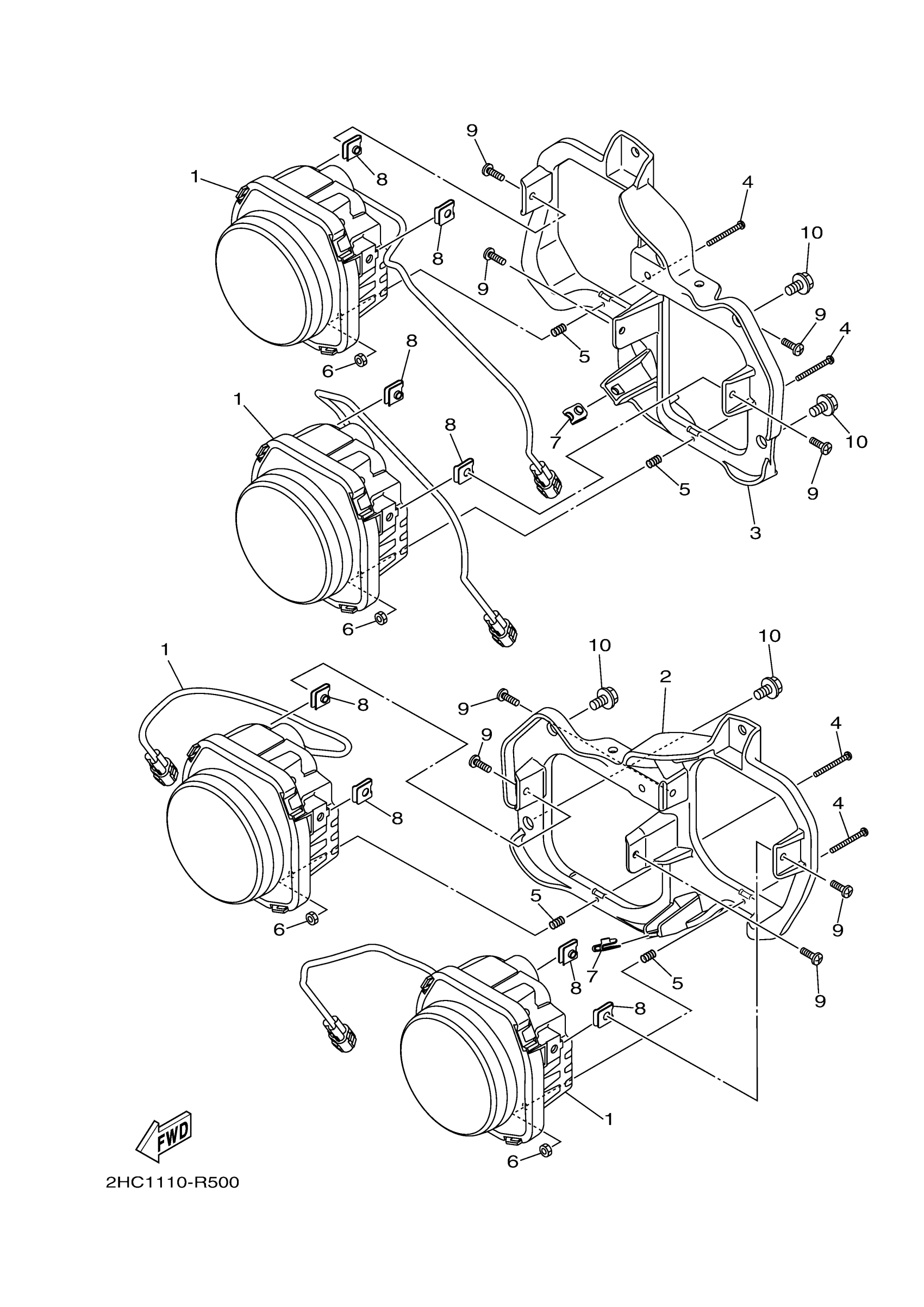

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

2UD-84300-00-00

$272.79

2

STAY, HEAD LIGHT 1

2HC-F831V-00-00

$39.71

3

STAY, HEAD LIGHT 2

2HC-F832V-00-00

$39.71

4

SCREW, PAN HEAD

98502-03530-00

$2.36

5

SPRING, COMPRESSION (4G0)

90501-08614-00

$1.76

6

NUT, ADJUSTING

2GU-84334-00-00

$5.46

7

NUT, SPRING

90183-060A6-00

$3.98

8

NUT, SPRING

90183-05008-00

$6.35

9

SCREW, BIND (8K2)

98902-05016-00

$1.49

10

BOLT, FLANGE(JN5)

95817-08016-00

$3.93
