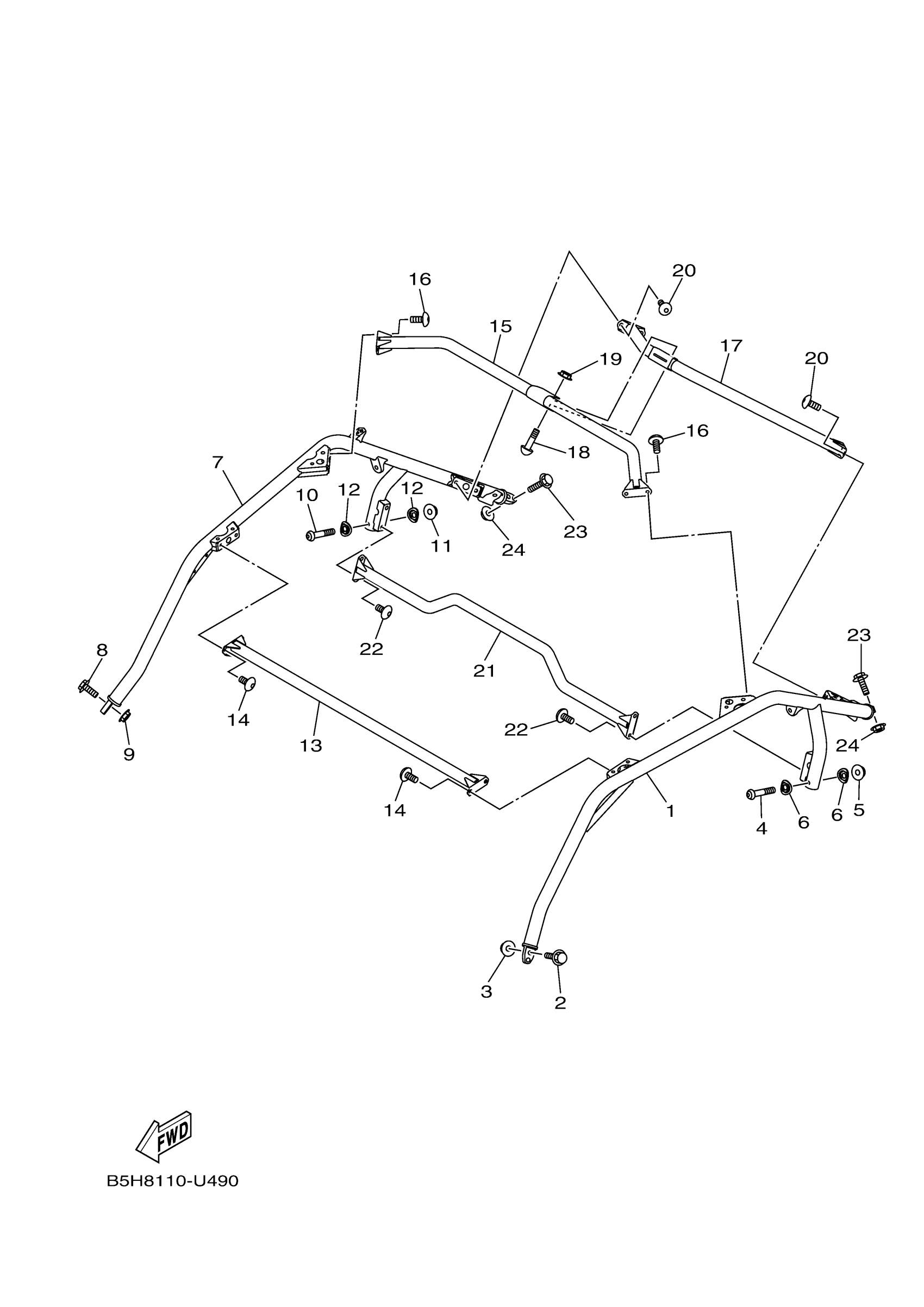

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-00-00

$290.06

2

BOLT, FLANGE(4GB)

95817-10045-00

$4.32

3

NUT, SELF-LOCKING

90185-10819-00

$1.49

4

BOLT, BUTTON HEAD

92012-10060-00

$2.91

5

NUT, SELF-LOCKING

90185-10011-00

$4.11

6

WASHER 2

5UG-K7526-00-00

$4.04

7

SUPPORT, ROOF 4

B5H-K831E-00-00

$290.06

8

BOLT, FLANGE(4GB)

95817-10045-00

$4.32

9

NUT, SELF-LOCKING

90185-10819-00

$1.49

10

BOLT, BUTTON HEAD

92012-10060-00

$2.91

11

NUT, SELF-LOCKING

90185-10011-00

$4.11

12

WASHER 2

5UG-K7526-00-00

$4.04

13

MEMBER, ROOF FRAME

BAS-K8392-00-00

$152.05

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

ROOF SUPPORT ASSY

B5H-K830A-00-00

$162.42

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

B5H-K830B-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-10060-00

$2.91

19

NUT, SELF-LOCKING

90185-10011-00

$4.11

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

B5H-K830C-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

23

BOLT, FLANGE(4GB)

95817-10045-00

$4.32

24

NUT, SELF-LOCKING

90185-10819-00

$1.49
