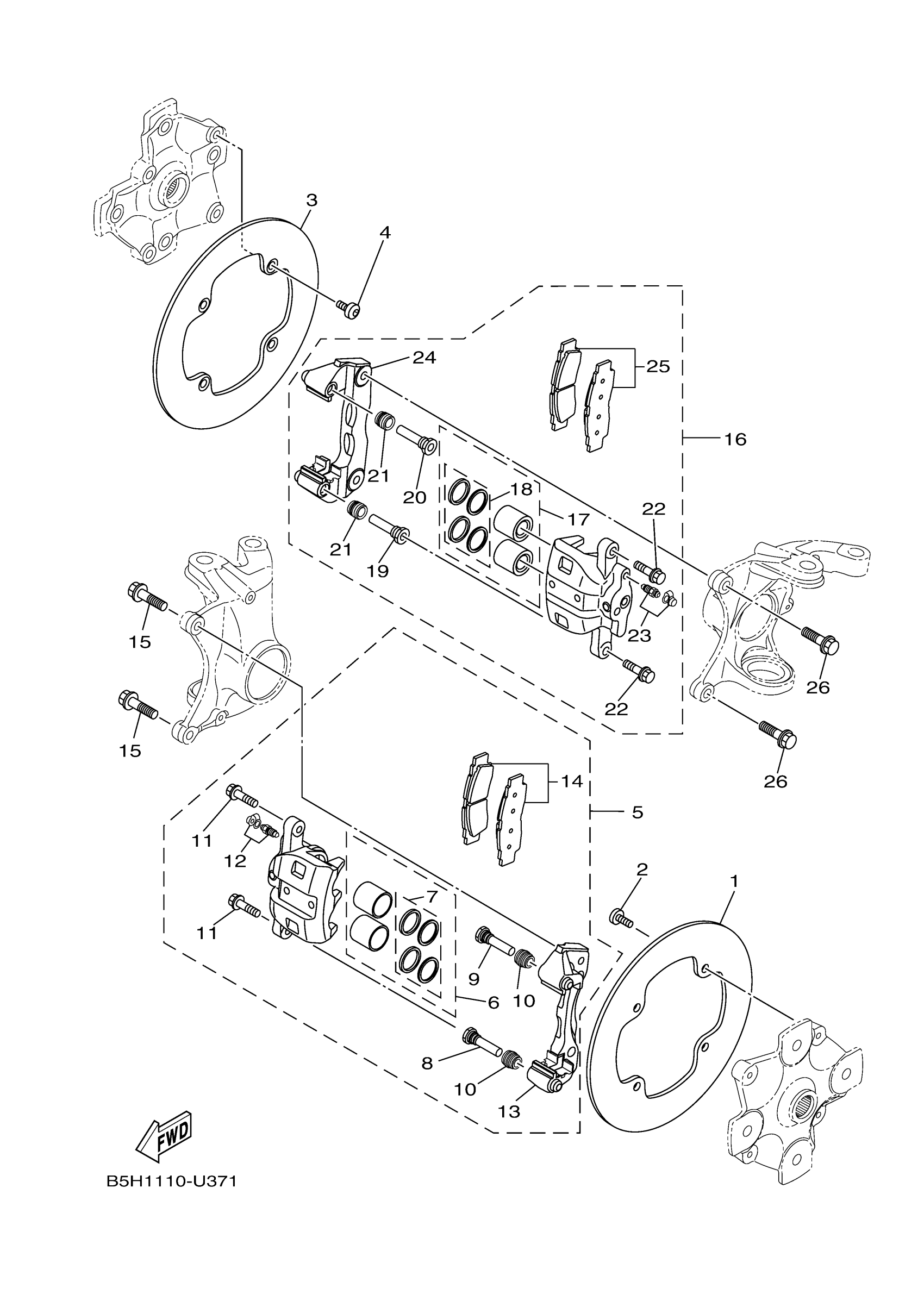

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$50.20

2

BOLT

90109-08077-00

$2.69

3

DISC, BRAKE (LEFT)

B5H-F582T-00-00

$50.20

4

BOLT

90109-08077-00

$2.69

5

CALIPER ASSY (LEFT

B5H-2580T-01-00

$487.41

6

PISTON ASSY, CALIPER

B5H-25802-00-00

Unavailable

7

CALIPER SEAL KIT

B5H-25803-00-00

Unavailable

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$3.63

11

BOLT, FITTING

2HC-25833-00-00

$1.78

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

BRACKET, CALIPER

2HC-25819-00-00

$89.65

14

BRAKE PAD KIT

B5H-25805-01-00

$77.51

15

BOLT, FLANGE

90105-10405-00

$4.40

16

CALIPER ASSY (RIGH

B5H-2580U-01-00

Unavailable

17

PISTON ASSY, CALIPER

B5H-25802-00-00

Unavailable

18

CALIPER SEAL KIT

B5H-25803-00-00

Unavailable

19

BOLT

2HC-25926-00-00

Unavailable

20

BOLT

2HC-25926-10-00

Unavailable

21

BOOT, CALIPER

2HC-25917-00-00

$3.63

22

BOLT, FITTING

2HC-25833-00-00

$1.78

23

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

24

BRACKET, CALIPER

2HC-25819-00-00

$89.65

25

BRAKE PAD KIT

B5H-25805-01-00

$77.51

26

BOLT, FLANGE

90105-10405-00

$4.40
