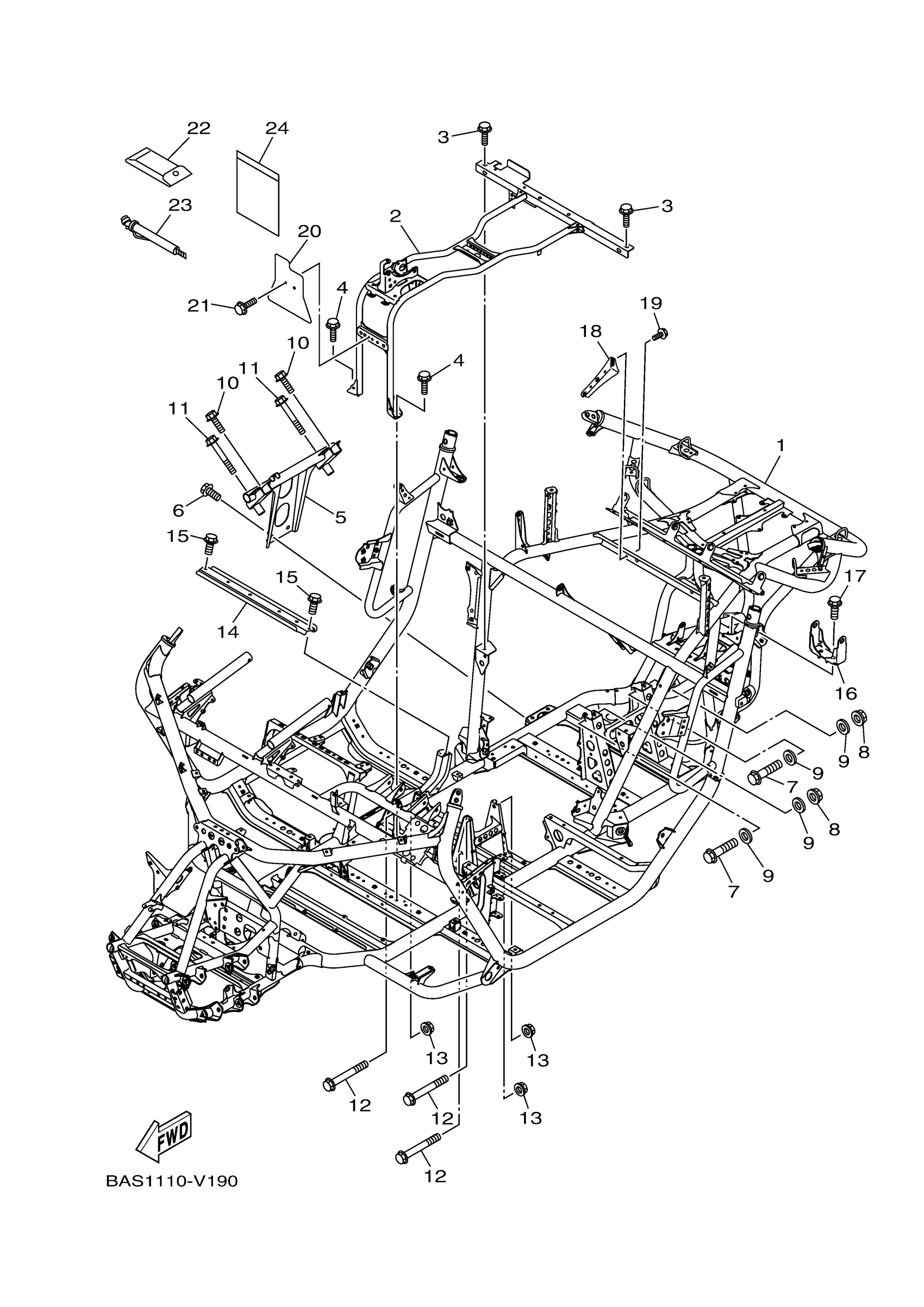

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BAS-F1110-00-00

$5,365.99

2

FRAME SUB COMP.

B5H-F111B-00-00

$229.36

3

BOLT, FLANGE(JN5)

95817-08016-00

$3.93

4

BOLT, FLANGE

90105-08867-00

$1.49

5

ENG. MOUNT COMP.

B5H-F110A-00-00

$101.11

6

BOLT, FLANGE

95812-10016-00

$7.86

7

BOLT, FLANGE

95812-12070-00

$4.14

8

NUT, SELF-LOCKING

90185-12002-00

$9.57

9

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.87

10

BOLT, FLANGE

95812-08020-00

$1.61

11

BOLT, FLANGE

95817-08055-00

$2.69

12

BOLT, FLANGE

90105-10176-00

$9.14

13

NUT, S/L FLANGE

95602-10200-00

$2.18

14

BRACKET, SEAT

2HC-F1349-11-00

$14.97

15

BOLT, FLANGE(4LN)

95817-08025-00

$5.87

16

STAY, MUFFLER

2HC-F194J-00-00

Unavailable

17

BOLT, FLANGE

95812-10016-00

$7.86

18

BRACKET

B5H-F115C-00-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

COVER, FRONT

B5H-F286H-01-00

Unavailable

21

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.49

22

TOOL KIT

5B4-F8100-00-00

Unavailable

23

GAUGE, AIR

1XD-F811A-00-00

Unavailable

24

POUCH

1P0-F8186-01-00

Unavailable
