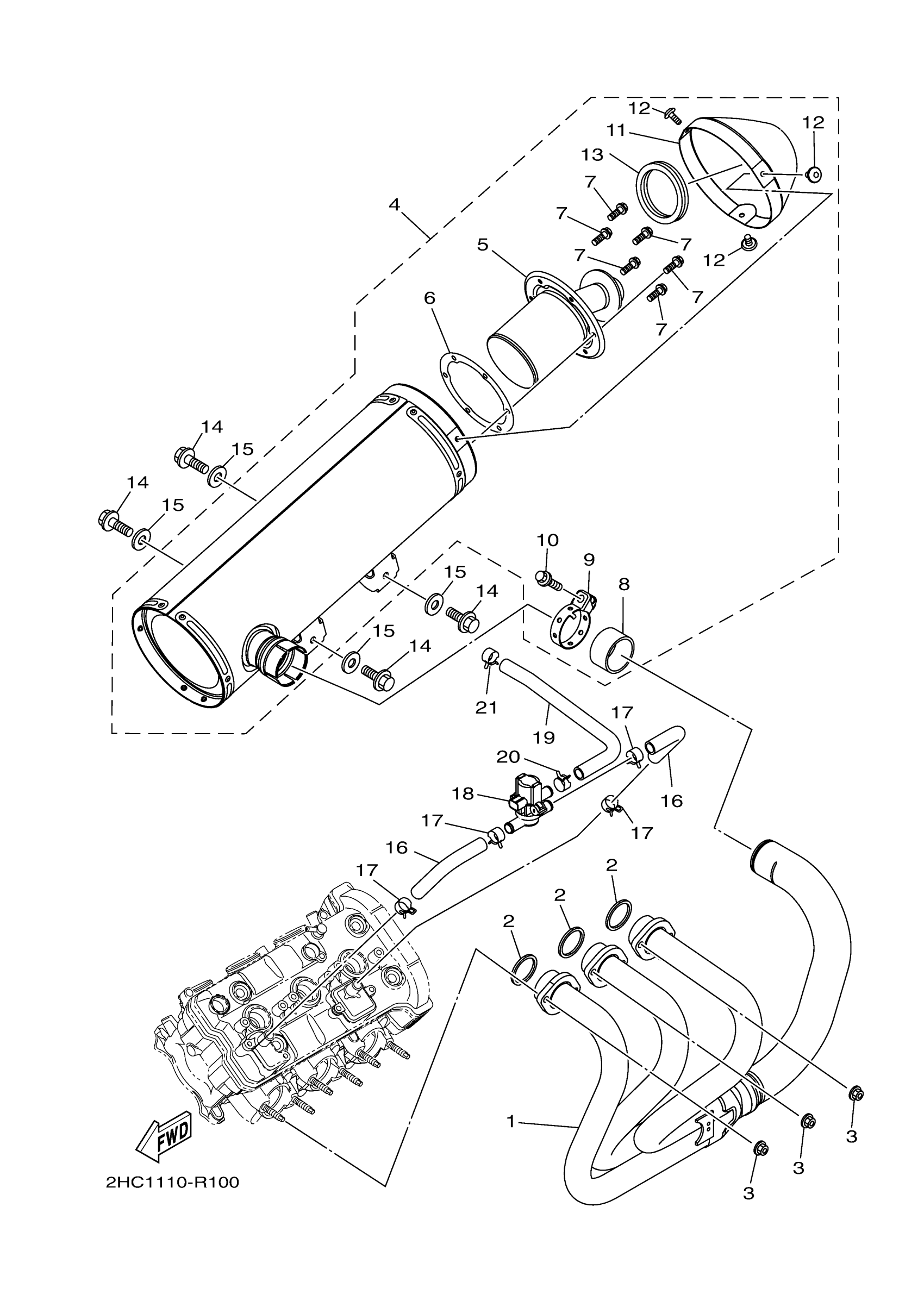

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

2HC-14602-00-00

Unavailable

2

GASKET, EXHAUST PIPE

4FM-14613-00-00

$10.20

3

NUT (22U)

90179-08410-00

$4.61

4

MUFFLER ASSY 1

B5H-E4710-03-00

$848.99

5

SPARK ARRESTER ASS

2HC-14780-08-00

$59.70

6

GASKET, SILENCER

2HC-14755-00-00

$18.13

7

BOLT, FLANGE

95022-06012-00

$2.86

8

GASKET, MUFFLER

1SL-14714-00-00

$24.48

9

BAND, MUFFLER

1SL-14715-00-00

$26.36

10

BOLT, FLANGE

95022-08035-00

$3.44

11

CAP

B5H-14799-00-00

Unavailable

12

SCREW(3XV)

90149-06298-00

$4.06

13

SEAT

2HC-1475P-00-00

$24.27

14

BOLT

90101-10038-00

$5.89

15

WASHER, PLATE

90201-10034-00

$6.20

16

HOSE, BEND 1

2HC-E4881-00-00

$2.98

17

CLIP(3TB)

90467-17128-00

Unavailable

18

AIR CUT VALVE ASSY

2HC-14840-00-00

Unavailable

19

HOSE, BEND 2

2HC-E4882-00-00

$4.58

20

CLIP(3TB)

90467-17128-00

Unavailable

21

CLIP (4V3)

90467-20050-00

Unavailable
