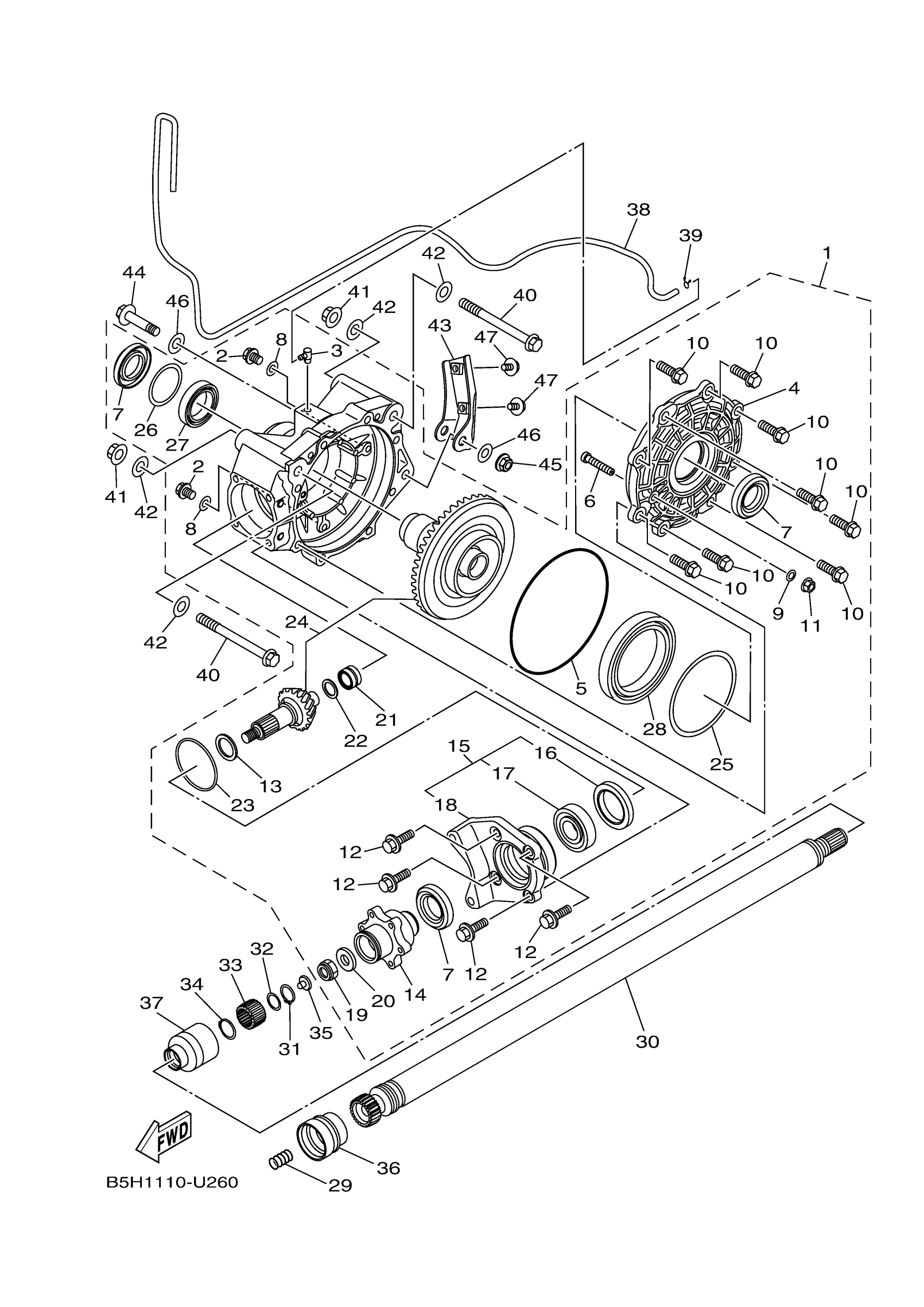

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CAS

B5H-G6101-00-00

Unavailable

2

BOLT

1XD-E2228-00-00

$4.02

3

. BREATHER

1CT-E5371-00-00

$3.24

4

. HOUSING, BEARING

2HC-G6152-00-00

$69.85

5

O-RING

2HC-G613A-00-00

$11.55

6

STOPPER, RING GEAR

2HC-G6156-00-00

$18.32

7

OIL SEAL

1XD-E511B-00-00

$7.41

8

GASKET

1CT-E1195-00-00

$5.10

9

GASKET

1CT-G6819-00-00

$3.83

10

. BOLT

2HC-E2157-00-00

$3.61

11

. NUT, ADJUSTING

1CT-E3275-00-00

$1.49

12

. BOLT, LOCK PLATE

1XD-G2478-00-00

$1.85

13

WHEEL, SPROCKET 1

1XD-G7531-00-00

$51.86

14

COUPLING

2HC-G6126-00-00

$170.67

15

HOUSING ASSY.

B5H-G6331-00-00

$217.99

16

NUT

2HC-G4583-00-00

Unavailable

17

BEARING

93306-30574-00

Unavailable

18

COVER

B5H-G2134-00-00

Unavailable

19

NUT

2HC-G7579-00-00

Unavailable

20

WASHER

2HC-G5677-00-00

Unavailable

21

BEARING 1

B5H-E1428-00-00

Unavailable

22

WASHER

B5H-F2149-00-00

Unavailable

23

OIL RING, PISTON

1XD-E1614-00-00

Unavailable

24

RING GEAR SET

B5H-G61A0-00-00

Unavailable

25

. SHIM

2HC-G5567-00-00

$20.44

26

SHIM

1XD-G5577-00-00

Unavailable

27

BEARING

1XD-E7051-00-00

Unavailable

28

BEARING 2

B5H-E1429-00-00

Unavailable

29

SPRING, COMPRESSION (400)

90501-20361-00

Unavailable

30

SHAFT, DRIVE

B5H-46172-10-00

Unavailable

31

CIRCLIP(1EY)

99009-22400-00

Unavailable

32

WASHER, PLATE

90201-23016-00

Unavailable

33

COUPLING

2HC-46126-00-00

Unavailable

34

CIRCLIP (30X)

93410-26067-00

Unavailable

35

DAMPER

5KM-46559-00-00

Unavailable

36

SEAL 2

2HC-46137-01-00

Unavailable

37

SEAL 1

B5H-46136-00-00

Unavailable

38

HOSE (L1700)

90445-070G6-00

Unavailable

39

CLIP (1J7)

90467-07029-00

Unavailable

40

BOLT, FLANGE

95812-12130-00

Unavailable

41

NUT, SELF-LOCKING

90185-12002-00

Unavailable

42

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

43

BRKT., RR. AXLE

2HC-F1981-03-00

Unavailable

44

BOLT, FLANGE

90105-12082-00

Unavailable

45

NUT, SELF-LOCKING

90185-12002-00

Unavailable

46

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

47

BOLT, FLANGE

95812-10016-00

Unavailable
