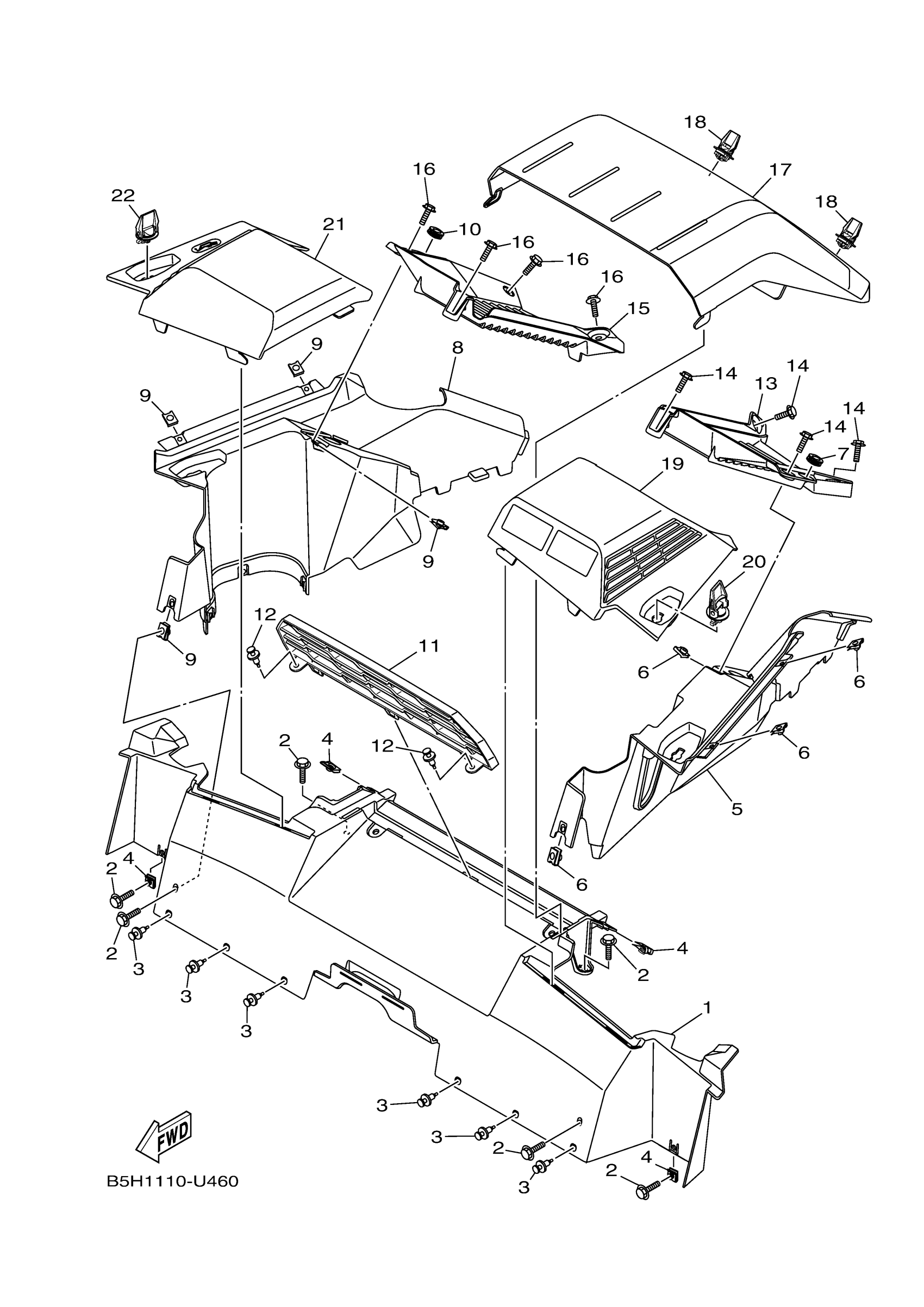

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 CARRIER 2 Diagram

#

Description
Price

1

COVER, REAR

B5H-F286N-00-00

$114.89

2

BOLT, WITH WASHER (30X)

90119-06096-00

$3.12

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

4

NUT, SPRING

90183-060A6-00

$3.98

5

COVER, SIDE 1

B5H-F84AX-00-00

$118.65

6

NUT, SPRING

90183-060A6-00

$3.98

7

GROMMET(4DN)

90480-01558-00

$3.66

8

COVER, SIDE 2

B5H-F84AY-00-00

$34.86

9

NUT, SPRING

90183-060A6-00

$3.98

10

GROMMET(4DN)

90480-01558-00

$3.66

11

GRILL, AIR INTAKE

B5H-F837N-00-00

$7.32

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.49

13

COVER 3

B5H-F843J-00-00

$10.21

14

BOLT, WITH WASHER (30X)

90119-06096-00

$3.12

15

COVER 4

B5H-F844J-00-00

$10.21

16

BOLT, WITH WASHER (30X)

90119-06096-00

$3.12

17

COVER

B5H-F172W-20-00

Unavailable

18

LEVER, LOCK

1XD-2175K-10-00

Unavailable

19

COVER 1

B5H-F8219-00-00

Unavailable

20

LEVER, LOCK

1XD-2175K-10-00

Unavailable

21

COVER 2

B5H-F8229-00-00

Unavailable

22

LEVER, LOCK

1XD-2175K-10-00

Unavailable
