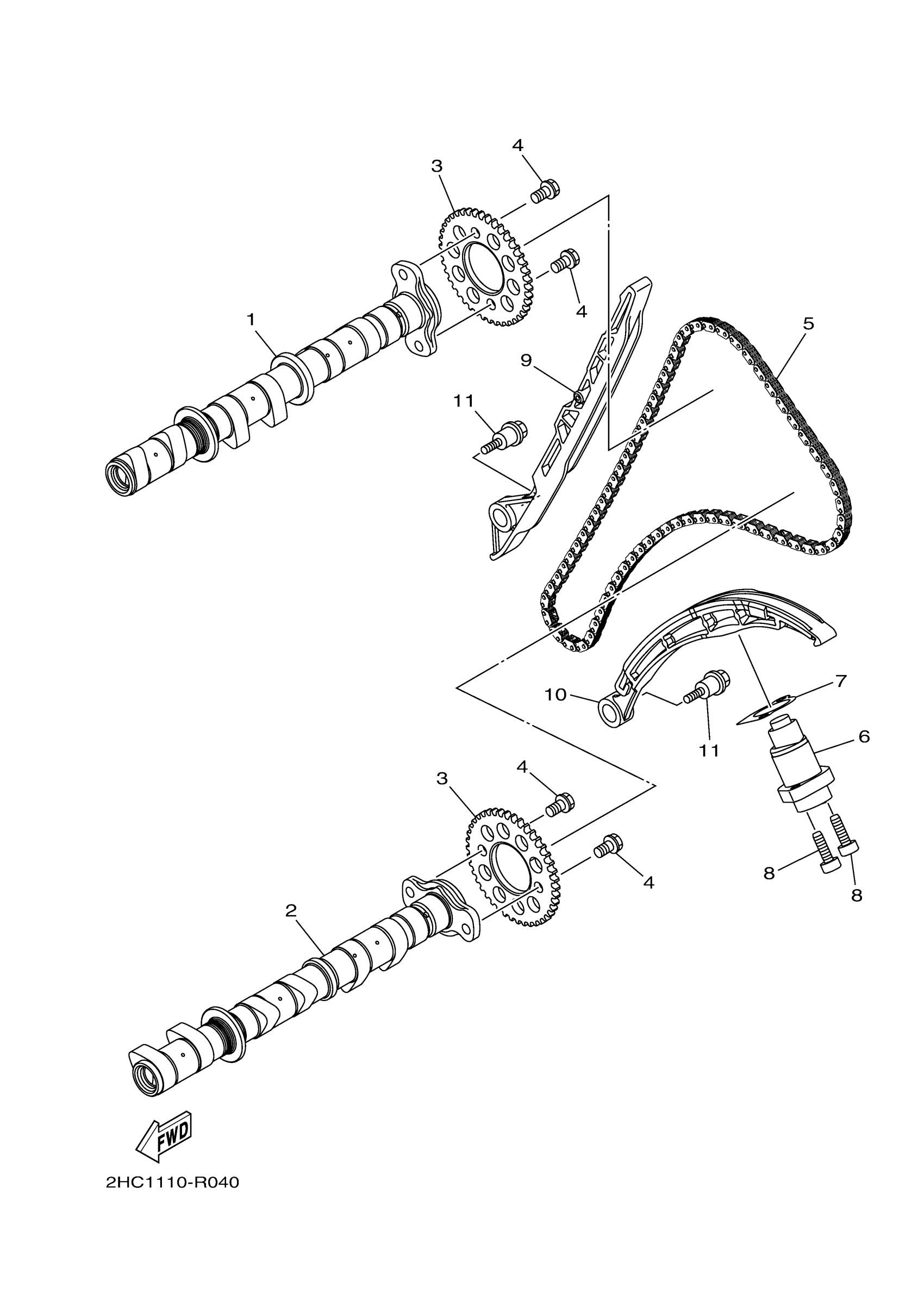

Yamaha YXZ10YEXLW (YXZ1000R EPS SS) BAS6 2020 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2HC-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

2HC-12180-00-00

Unavailable

3

SPROCKET, CAM CHAI

2HC-12176-00-00

$32.60

4

BOLT, FLANGE

90105-07004-00

$4.76

5

CHAIN

94591-57140-00

$37.17

6

TENSIONER ASSY, CAM CHAIN

2HC-12210-00-00

$80.19

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.42

8

BOLT, HEXAGON SOCKET HEAD

90110-06335-00

$4.92

9

DAMPER, CHAIN 1

8GL-12251-01-00

$23.54

10

DAMPER, CHAIN 2

2HC-12252-00-00

$58.25

11

BOLT

90109-06297-00

$4.89
