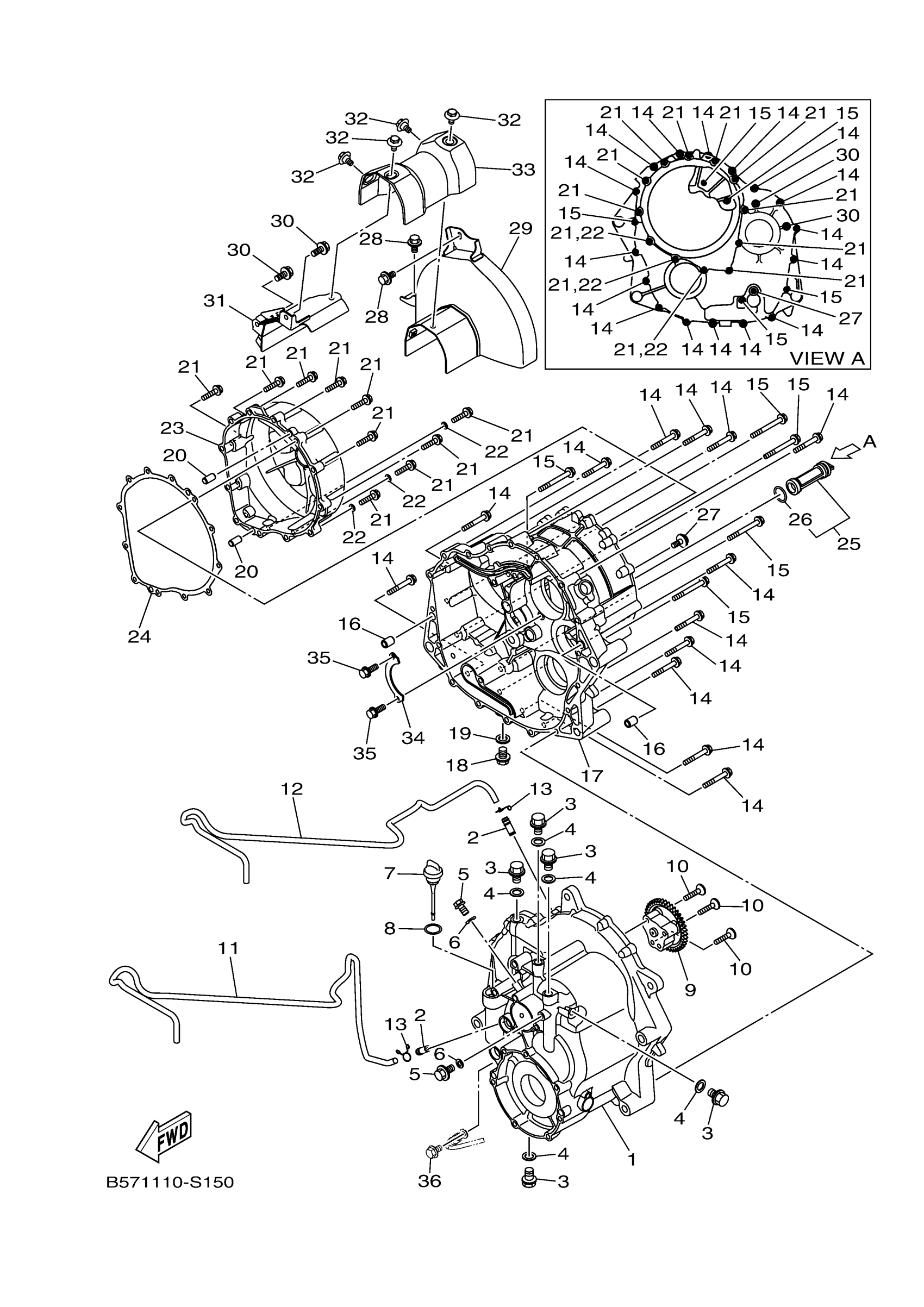

Yamaha YXZ10YEXKD (YXZ1000R EPS SS) B5H8 2019 TRANSFER Diagram
#
1
CASE, TRANSFER 1
B5H-17541-00-00
$404.99
2
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
3
PLUG STRAIGTSCREW 367185880000
90340-10003-00
$8.49
4
GASKET (1KH,1.0T)
90430-10148-00
$5.60
5
BOLT, FLANGE
95022-06010-00
$5.60
6
GASKET 256113960000
90430-06014-00
Unavailable
7
PLUG, OIL LEVEL
18G-15362-00-00
$25.99
8
O-RING
93210-21190-00
$7.49
9
OIL PUMP ASSY
2HC-17880-00-00
$70.99
10
SCREW, FLAT HEAD
98702-06030-00
$3.98
11
HOSE (L1140)
90445-08040-00
Unavailable
12
HOSE
90445-08049-00
$4.94
13
CLIP (16G)
90467-08021-00
$8.49
14
BOLT, FLANGE
95022-06045-00
$4.29
15
BOLT, FLANGE
95022-06060-00
$8.49
16
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
17
CASE, TRANSFER 2
2HC-17542-00-00
Unavailable
18
PLUG, STRAIGHT SCREW
90340-12006-00
Unavailable
19
GASKET(3FD)
90430-12213-00
Unavailable
20
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
21
BOLT, FLANGE
95022-06030-00
Unavailable
22
GASKET 256113960000
90430-06014-00
Unavailable
23
COVER, 1
2HC-15415-00-00
Unavailable
24
GASKET
2HC-15453-00-00
Unavailable
25
STRAINER, OIL
2HC-13411-00-00
Unavailable
26
O-RING
93210-20802-00
Unavailable
27
SCREW, WITH WASHER
90159-06021-00
Unavailable
28
BOLT, WITH WASHER
90119-06242-00
Unavailable
29
COVER, SHAFT 1
2HC-2147J-00-00
Unavailable
30
BOLT, WITH WASHER
90119-06242-00
Unavailable
31
COVER, SHAFT 2
2HC-2147K-00-00
Unavailable
32
BOLT
90109-06202-00
Unavailable
33
COVER PLATE COMP.
2HC-2131P-00-00
Unavailable
34
PLATE, BEARING
2HC-17558-00-00
Unavailable
35
BOLT, FLANGE
95022-06016-00
Unavailable
36
BOLT, FLANGE
95880-06012-00
Unavailable
