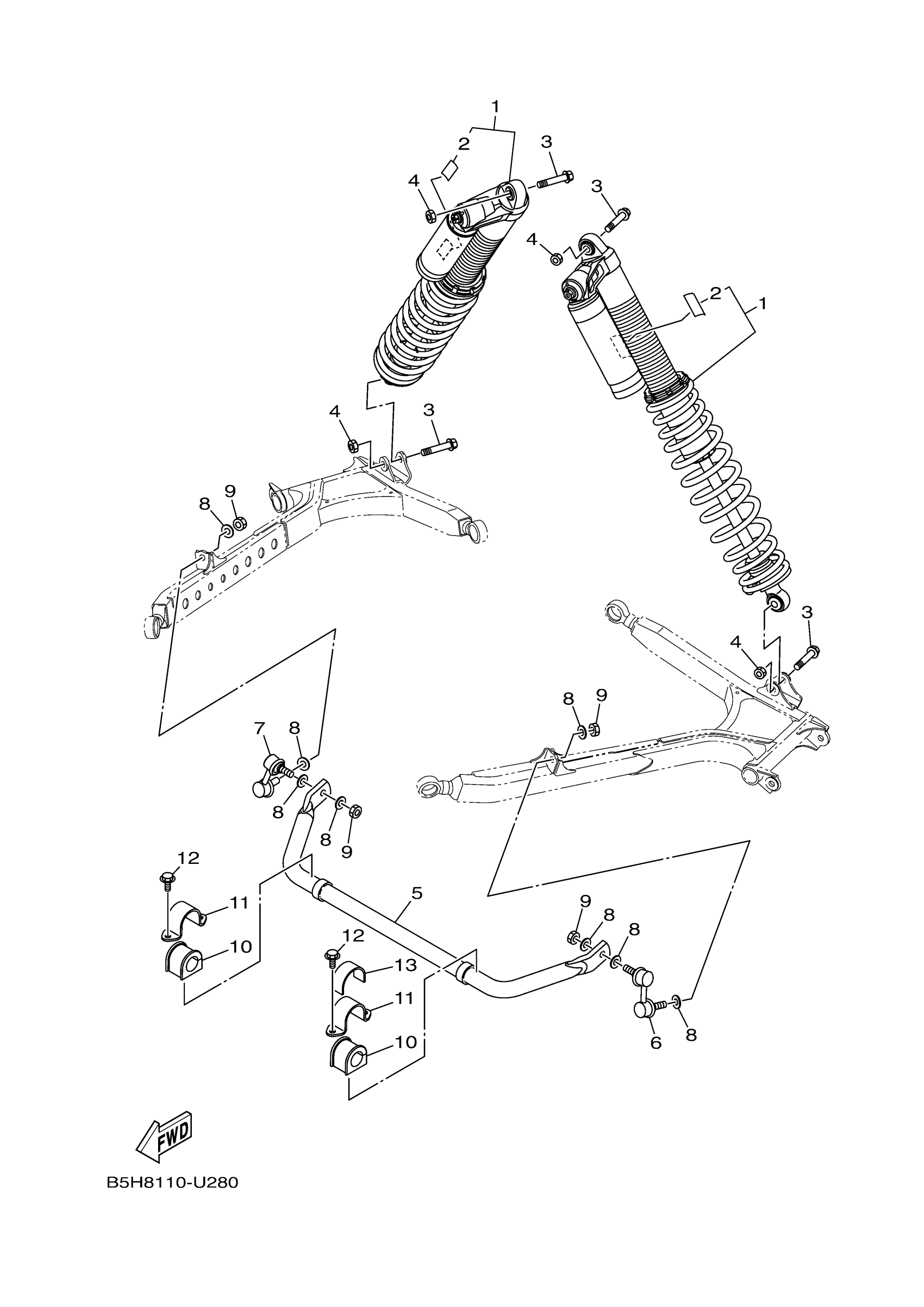

Yamaha YXZ10YEXKD (YXZ1000R EPS SS) B5H8 2019 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

B5H-F2200-00-00

$974.99

2

LABEL,WARNING

1HP-F2259-01-00

$15.49

3

BOLT, FLANGE

90105-12051-00

$9.49

4

NUT, SELF-LOCKING

90185-12007-00

$10.49

5

BAR, STABILIZER

2HC-G7491-21-00

Unavailable

6

JOINT, STABILIZER 1

BAS-F385L-04-00

$75.99

7

JOINT, STABILIZER 2

BAS-F385M-05-00

$75.99

8

WASHER, PLATE

90201-12045-00

$5.60

9

NUT, SELF-LOCKING

90185-12002-00

$12.49

10

BUSH,STABLZR FRONT

2HC-F386G-01-00

Unavailable

11

COVER, STABILIZER

2HC-F386H-00-00

Unavailable

12

BOLT, FLANGE

95817-10020-00

$8.49

13

PLATE, DAMPER 1

2HC-23421-00-00

$4.94
