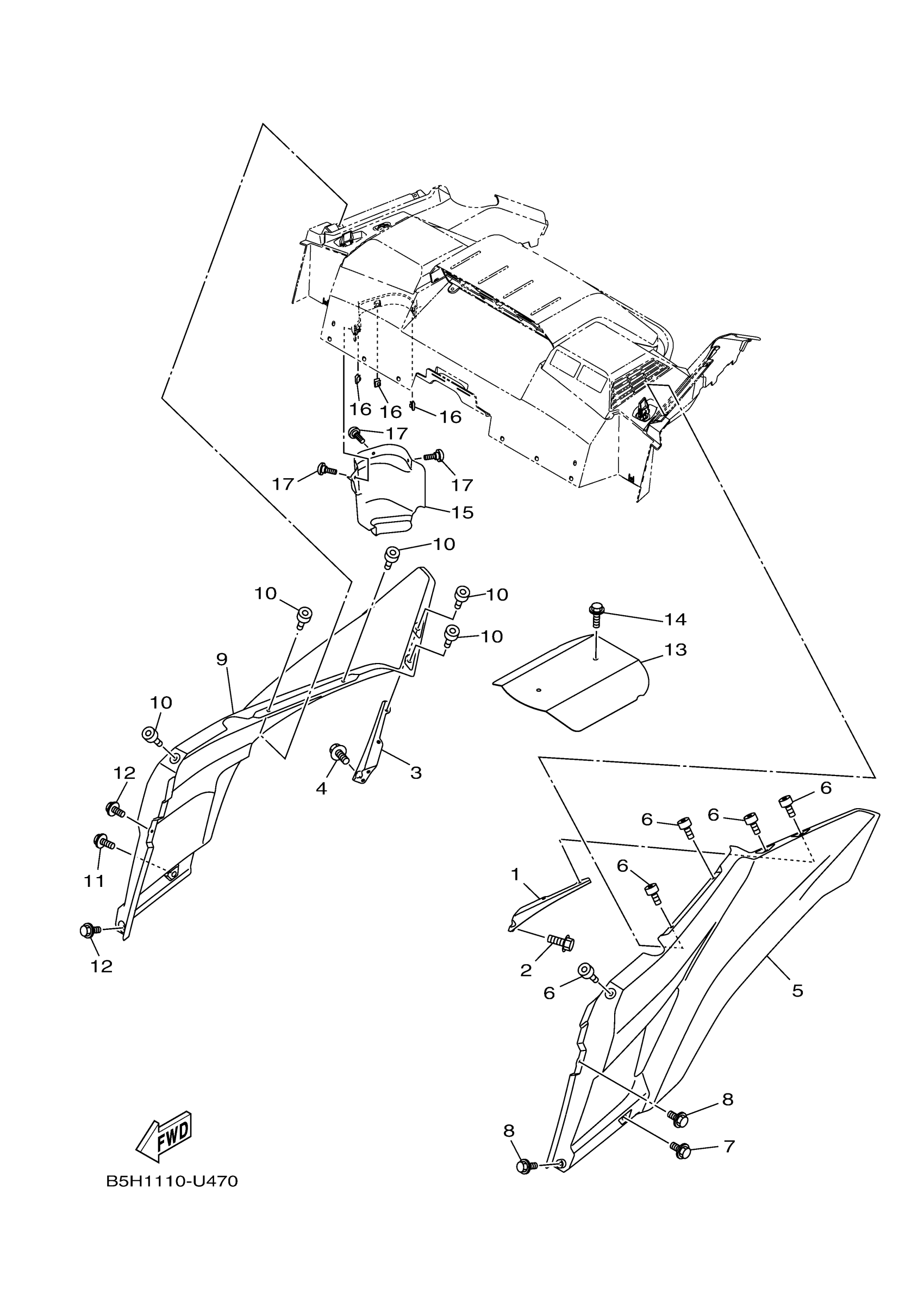

Yamaha YXZ10YEXKD (YXZ1000R EPS SS) B5H8 2019 CARRIER 3 Diagram

#

Description
Price

1

STAY, REAR

2HC-F1643-00-00

$8.88

2

BOLT, FLANGE

95817-06012-00

$1.40

3

STAY, REAR

2HC-F1644-00-00

$8.73

4

BOLT, FLANGE

95817-06012-00

$1.40

5

FENDER, REAR

2HC-F1611-50-00

$120.35

6

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

7

BOLT

90109-06307-00

$4.37

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

FENDER 2

2HC-F162R-50-00

$120.35

10

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$5.86

11

BOLT

90109-06307-00

$4.37

12

BOLT, WITH WASHER

90119-06226-00

$2.12

13

INSULATOR, HEAT

B5H-F2898-00-00

$9.58

14

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

15

COVER 1

2HC-F842M-01-00

$10.59

16

NUT, SPRING

90183-060A6-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

$2.12
