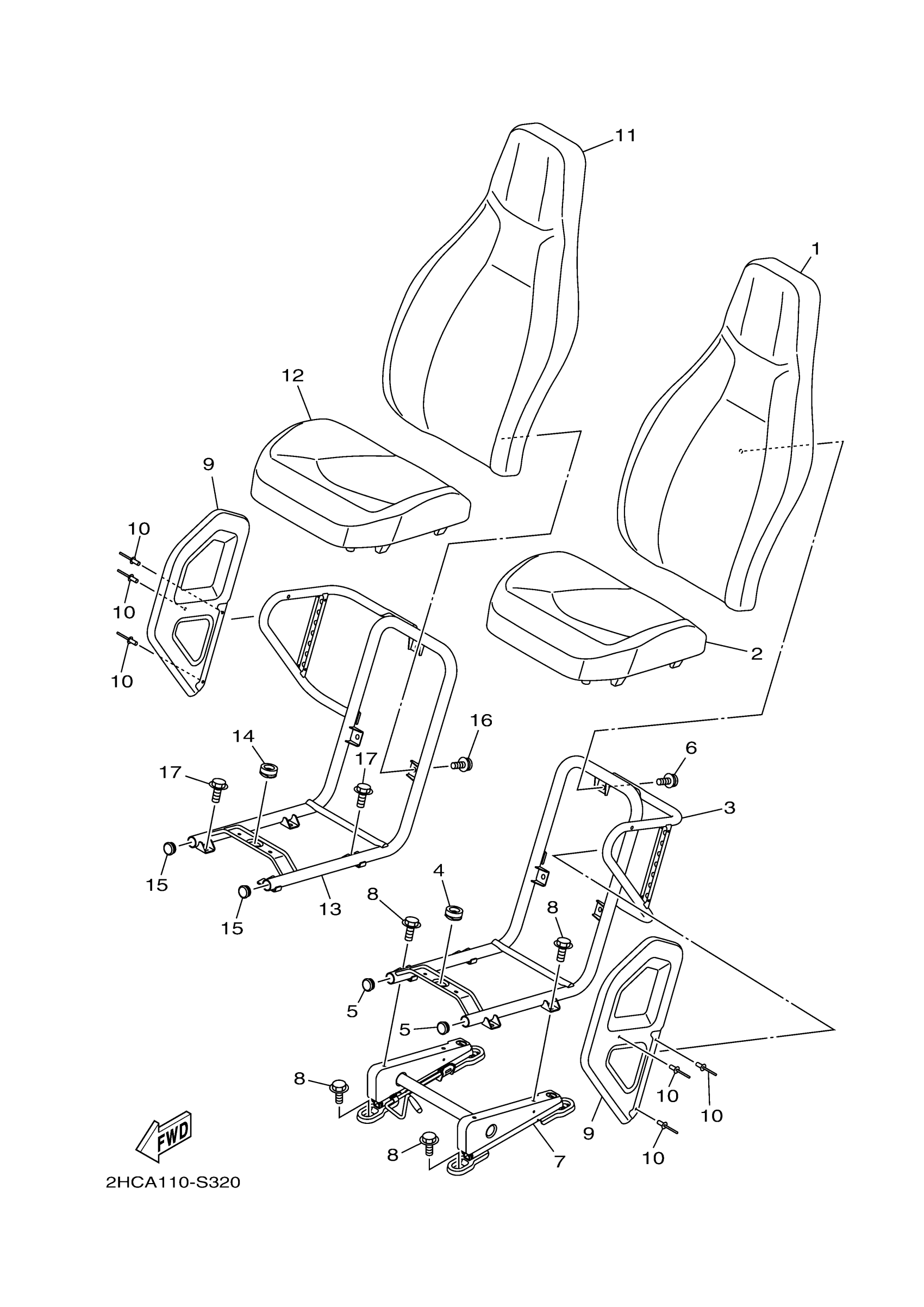

Yamaha YXZ10YEXJD (YXZ100R EPS SS) B0F8 2018 SEAT Diagram

#

Description
Price

1

SEAT BACK ASY

2HC-F4790-21-00

$382.35

2

SEAT ASSY

2HC-F4700-21-00

$336.96

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

Unavailable

5

PLUG

2HC-F2417-00-00

$1.91

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

ADJUSTER ASSY

2HC-F7270-00-00

$376.25

8

BOLT, FLANGE

95817-08012-00

$3.81

9

COVER,2

2HC-F475X-01-00

$131.41

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

11

SEAT BACK ASY

2HC-F4790-21-00

$382.35

12

SEAT ASSY

2HC-F4700-21-00

$336.96

13

FRAME, SEAT 2

2HC-F473D-01-00

$241.99

14

GROMMET

1XD-F4742-00-00

Unavailable

15

PLUG

2HC-F2417-00-00

$1.91

16

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

17

BOLT, FLANGE

95817-08012-00

$3.81
