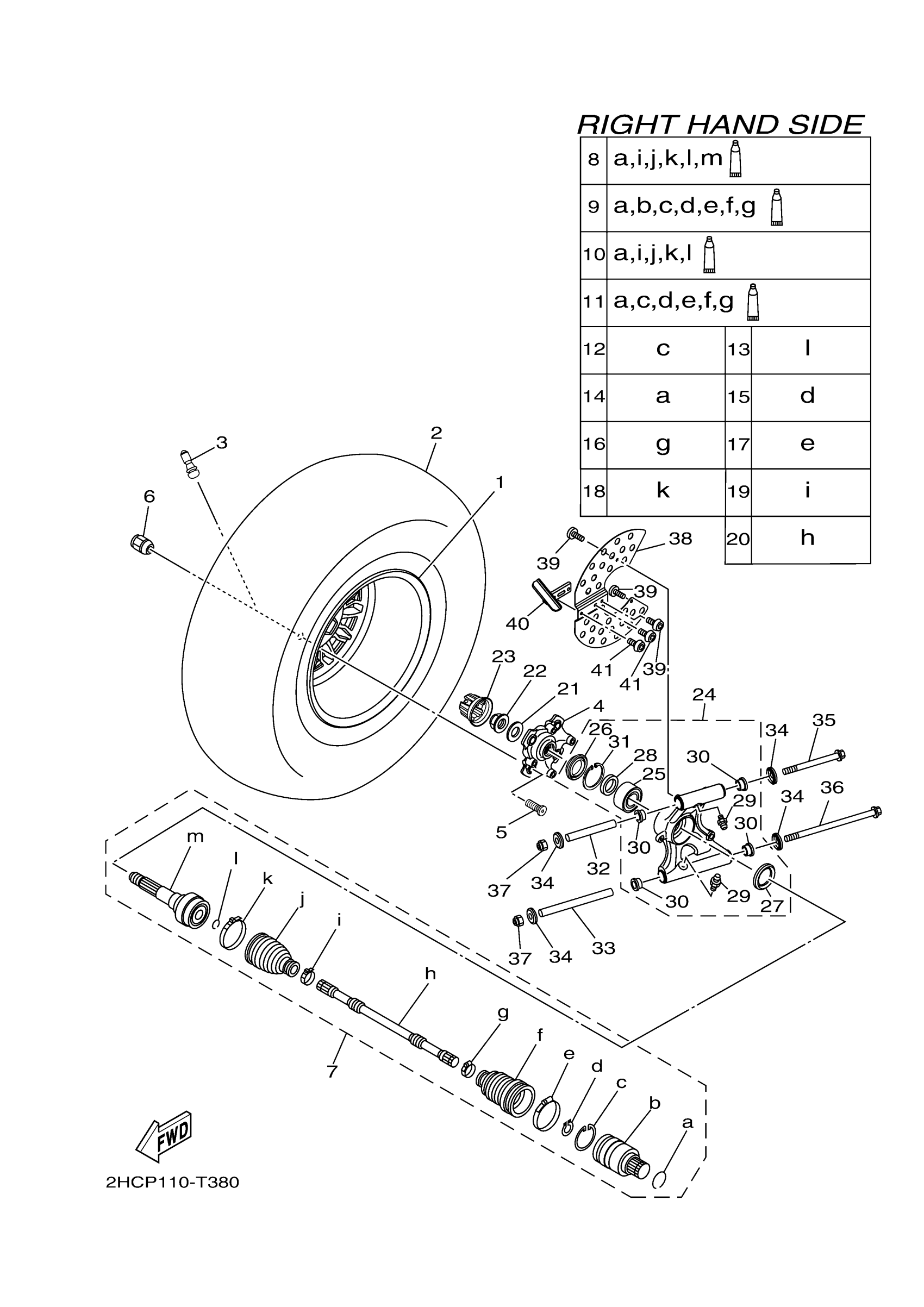

Yamaha YXZ10YEXJD (YXZ100R EPS SS) B0F8 2018 REAR WHEEL 2 Diagram
#
1
WHEEL, CAST 2
2HC-F533P-00-00
Unavailable
2
TIRE (27X11.00R14 MU10 6PR TL)
94111-14802-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB, FRONT
2HC-F5111-02-00
Unavailable
8
BALL JOINT SET
2HC-2530T-12-00
Unavailable
16
BAND
2HC-25719-00-00
Unavailable
17
BAND
2HC-26293-00-00
Unavailable
18
BOOT BAND (SMALL)
2HC-2512G-10-00
Unavailable
19
BAND
2HC-26397-00-00
Unavailable
20
SHAFT
2HC-259A2-00-00
Unavailable
21
WASHER, PLATE
90201-25023-00
Unavailable
22
NUT
90179-24006-00
Unavailable
23
CAP, WHEEL
2HC-F512A-00-00
Unavailable
24
REAR KNUCKLE ASSY.
2HC-F532F-02-00
Unavailable
25
BEARING
93305-00603-00
Unavailable
26
OIL SEAL
93106-42801-00
Unavailable
27
OIL SEAL
93106-38800-00
Unavailable
28
COLLAR
90387-30013-00
Unavailable
29
NIPPLE, GREASE
93700-06M03-00
Unavailable
30
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
31
CIRCLIP (70R)
93420-72065-00
Unavailable
32
COLLAR
90387-12060-00
Unavailable
33
COLLAR
90387-12061-00
Unavailable
34
COVER, THRUST 1
1XD-23517-01-00
Unavailable
35
BOLT, FLANGE
90105-12066-00
Unavailable
36
BOLT, FLANGE
90105-12097-00
Unavailable
37
NUT, SELF-LOCKING
90185-12007-00
Unavailable
38
RING, WHEEL RR. 2
2HC-F535C-00-00
Unavailable
39
BOLT,HEX. SOCKET BUTTON
90111-06096-00
Unavailable
40
PLATE, GUIDE 2
2HC-F2342-00-00
Unavailable
41
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
