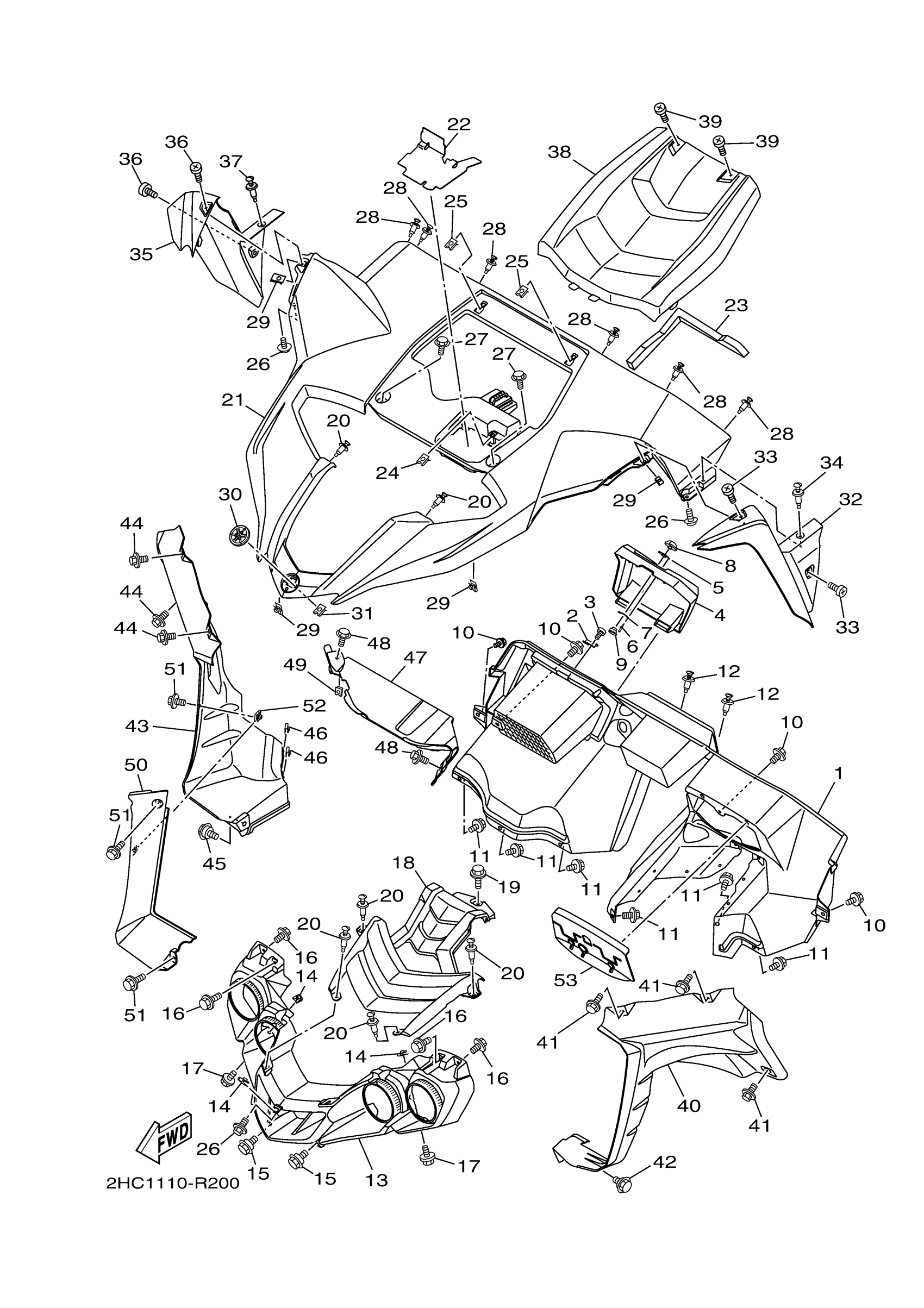

Yamaha YXZ10YEXJD (YXZ100R EPS SS) B0F8 2018 FRONT FENDER Diagram
#
Description
Price
1
PANEL, INSTRUMENT
2HC-K7711-01-00
Unavailable
3
SCREW, TAPPING
90164-04800-00
Unavailable
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
GRILLE, FRONT
2HC-F8309-00-00
Unavailable
18
COVER, UPPER 1
2HC-F3121-50-00
Unavailable
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
21
FENDER, FRONT
2HC-F1511-20-00
Unavailable
22
INSULATOR 1
2HC-8258K-00-00
Unavailable
23
INSULATOR 2
2HC-8259K-00-00
Unavailable
28
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
30
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
31
NUT, SPRING
90183-06071-00
Unavailable
32
EXTENSION, FRONT F
2HC-K8185-20-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
35
EXTENSION, FRONT F
2HC-K8186-20-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
37
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
38
HOOD 1
2HC-F1982-40-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
40
COVER 1
2HC-E246A-00-00
Unavailable
43
COVER 2
2HC-E246E-00-00
Unavailable
47
COVER, DUST SEAL 1
2HC-F3383-00-00
Unavailable
50
COVER, DUST SEAL 2
2HC-F3384-00-00
Unavailable
53
COVER, SEAL 3
2HC-F338G-00-00
Unavailable
