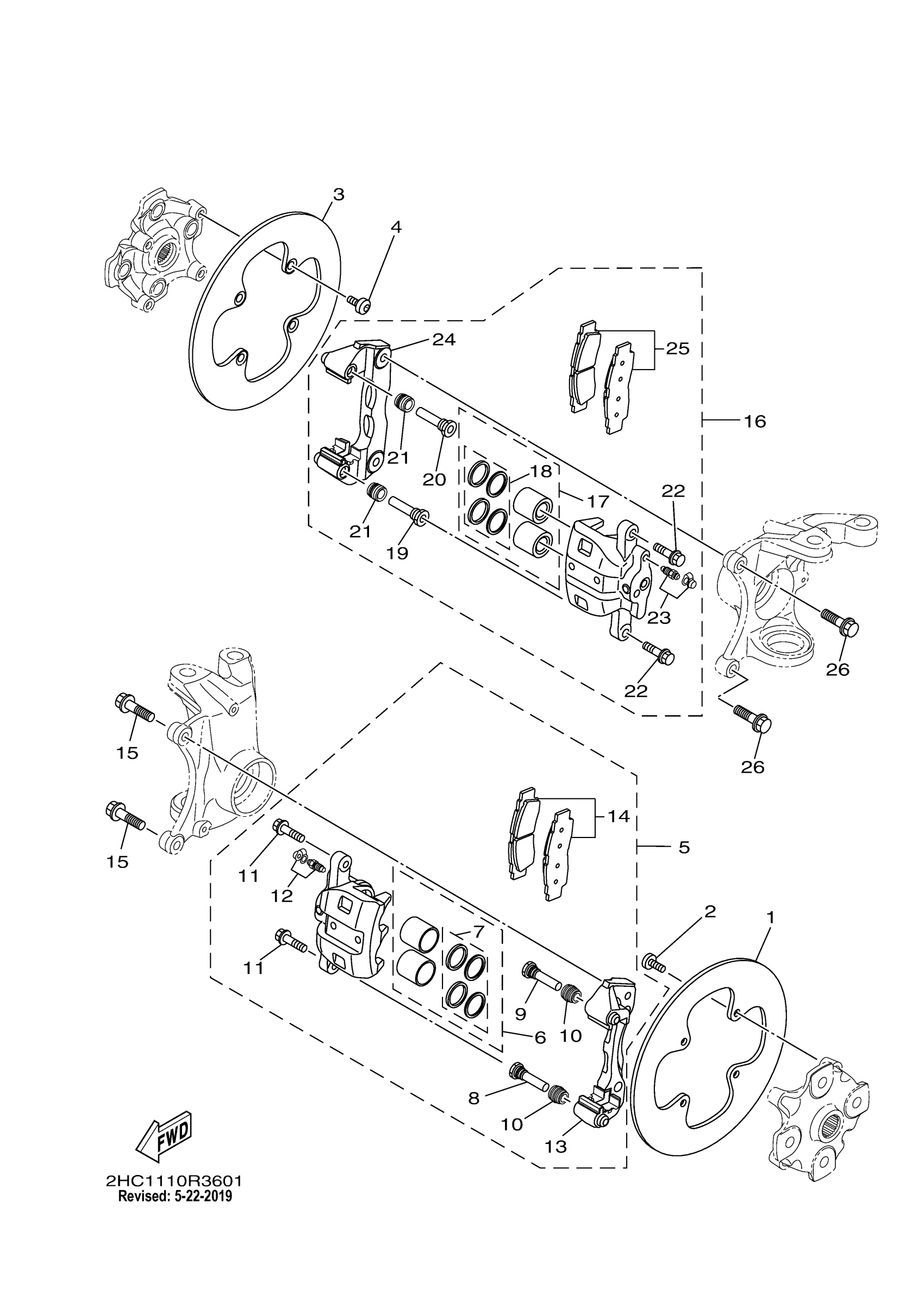

Yamaha YXZ10YEXJD (YXZ100R EPS SS) B0F8 2018 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$64.99

2

BOLT

90109-08077-00

$8.49

3

DISC, BRAKE (LEFT)

2HC-F582T-00-00

$64.99

4

BOLT

90109-08077-00

$8.49

5

CALIPER ASSY (LEFT)

2HC-2580T-00-00

$480.99

6

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

7

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$4.52

11

BOLT, FITTING

2HC-25833-00-00

$1.98

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

BRACKET, CALIPER

2HC-25819-00-00

$111.99

14

BRAKE PAD KIT

2HC-25805-00-00

$48.99

15

BOLT, FLANGE

90105-10405-00

$5.60

16

CALIPER ASSY (RIGHT)

2HC-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

18

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

19

BOLT

2HC-25926-00-00

Unavailable

20

BOLT

2HC-25926-10-00

Unavailable

21

BOOT, CALIPER

2HC-25917-00-00

$4.52

22

BOLT, FITTING

2HC-25833-00-00

$1.98

23

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

24

BRACKET, CALIPER

2HC-25819-00-00

$111.99

25

BRAKE PAD KIT

2HC-25805-00-00

$48.99

26

BOLT, FLANGE

90105-10405-00

$5.60
