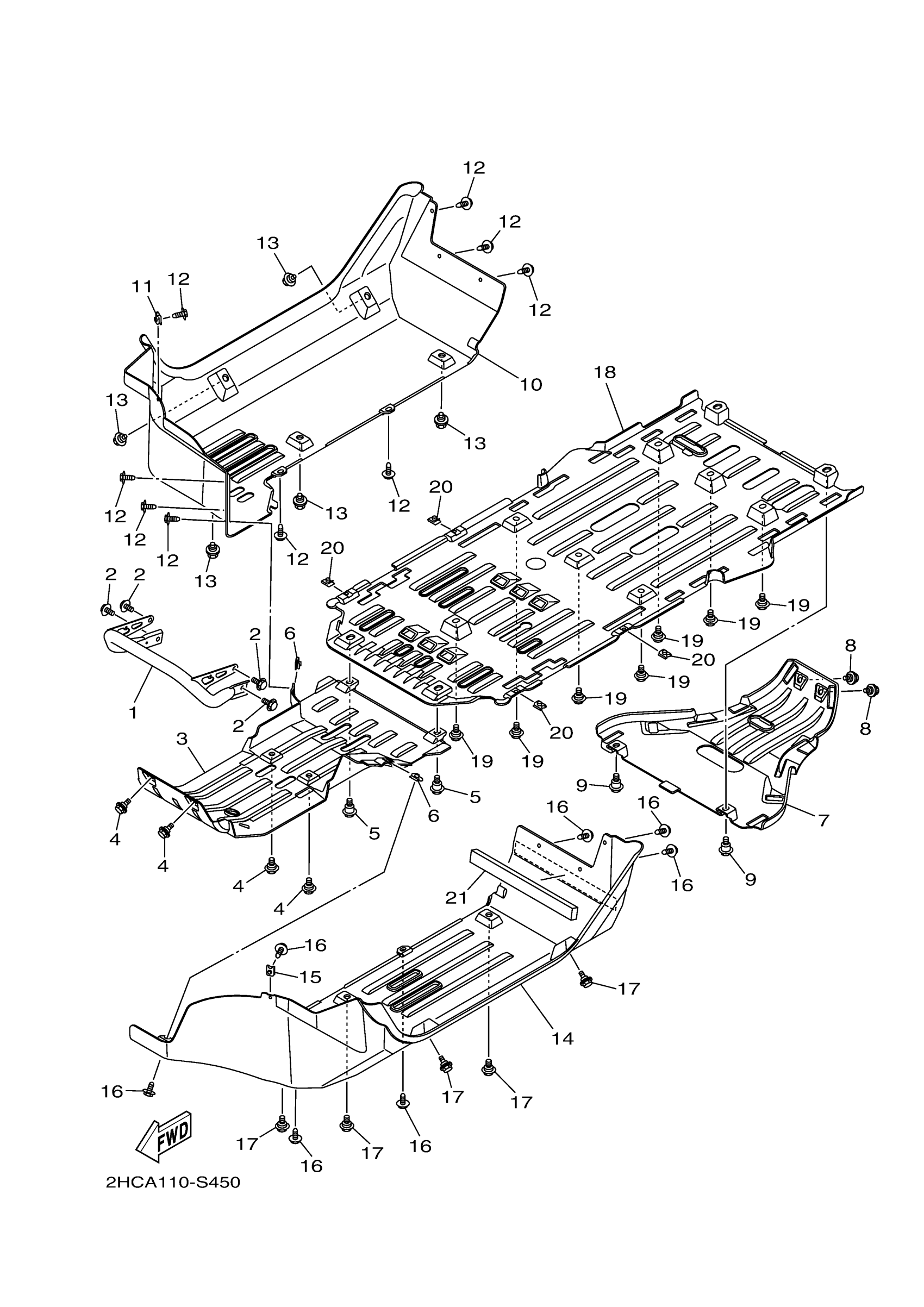

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

2HC-F845N-10-00

$110.99

2

BOLT, FLANGE

95812-10016-00

$9.49

3

COVER, LOWER

2HC-F8385-01-00

$93.99

4

BOLT

90109-06202-00

$7.49

5

BOLT

90109-068A7-00

Unavailable

6

NUT, SPRING

90183-060A6-00

$5.49

7

COVER, UNDER 2

2HC-F8395-01-00

Unavailable

8

BOLT

90109-06202-00

$7.49

9

BOLT

90109-068A7-00

Unavailable

10

GUARD 1

2HC-F2361-00-00

Unavailable

11

NUT, SPRING

90183-060A6-00

$5.49

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

BOLT

90109-06202-00

$7.49

14

GUARD 2

2HC-F2362-00-00

Unavailable

15

NUT, SPRING

90183-060A6-00

$5.49

16

BOLT, WITH WASHER

90119-06226-00

$8.49

17

BOLT

90109-06202-00

$7.49

18

GUARD, ENGINE 1

2HC-F8418-03-00

Unavailable

19

BOLT

90109-06202-00

$7.49

20

NUT, SPRING

90183-060A6-00

$5.49

21

DAMPER, PLATE

90520-20820-00

Unavailable
