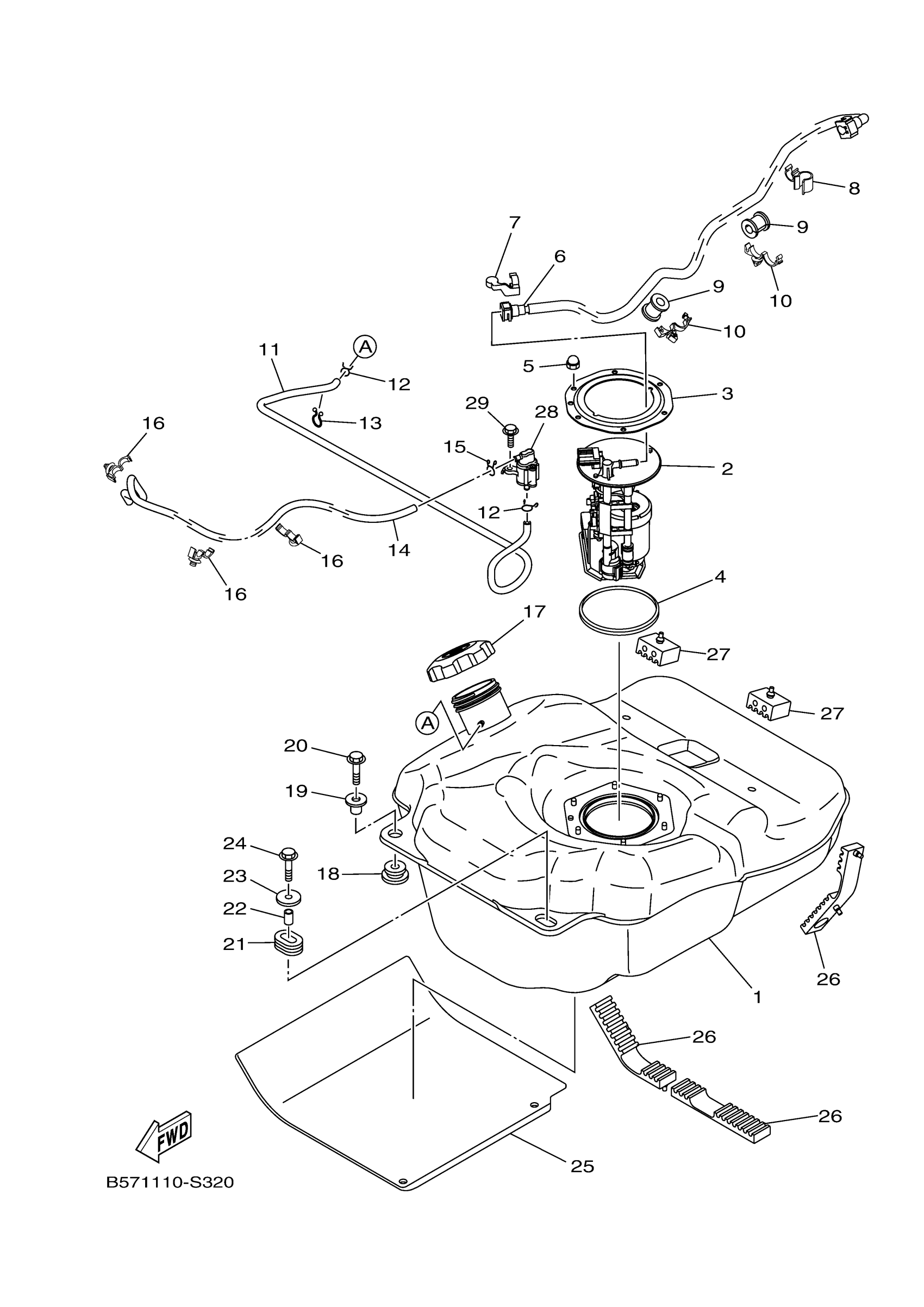

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2HC-F4110-00-00

$209.05

2

FUEL PUMP COMP.

B16-13907-03-00

$388.27

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$14.07

5

NUT (J17)

95380-06800-00

$6.28

6

PIPE, FUEL 1

2HC-13971-02-00

Unavailable

7

CLAMP

90464-14004-00

$5.03

8

CLAMP

90464-15007-00

$6.29

9

GROMMET(4CG)

90480-20543-00

$6.22

10

CLAMP

90464-20010-00

$2.01

11

PIPE 4

B57-F4314-00-00

$14.94

12

CLIP

90467-090A2-00

$2.47

13

CLAMP

90464-12M48-00

$4.29

14

HOSE (L1125)

90445-09831-00

Unavailable

15

CLIP

90467-090A2-00

$2.47

16

CLAMP

90464-12830-00

Unavailable

17

CAP ASSY

BVG-24610-00-00

Unavailable

18

GROMMET

90480-18016-00

Unavailable

19

COLLAR

90387-07021-00

Unavailable

20

BOLT, FLANGE

95817-06030-00

Unavailable

21

GROMMET(38W)

90480-01400-00

Unavailable

22

COLLAR(2UJ)

90387-061V1-00

Unavailable

23

WASHER (23T)

90201-065G8-00

Unavailable

24

BOLT, FLANGE

95817-06030-00

Unavailable

25

DAMPER, PLATE 1

2HC-F414H-00-00

Unavailable

26

DAMPER, LOCATING 1

2HC-F4181-00-00

$3.92

27

DAMPER, LOCATING 2

2MB-F4182-00-00

Unavailable

28

PIPE JOINT ASSY

28P-24380-00-00

Unavailable

29

BOLT, FLANGE

95022-06016-00

Unavailable
