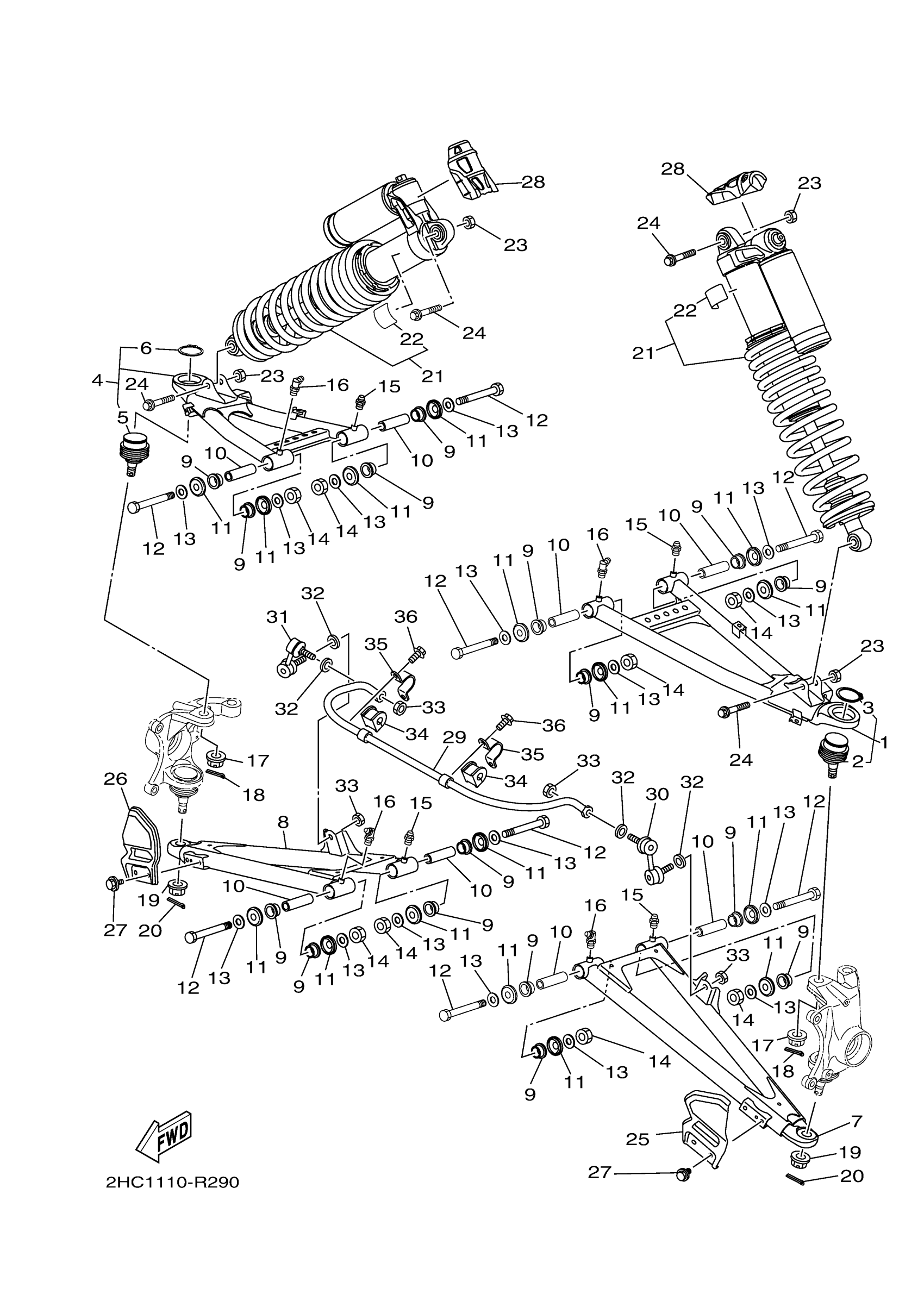

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM SU

2HC-F3505-20-00

$188.99

2

BALL JOINT 2

2HC-23579-00-00

$96.99

3

CIRCLIP

93410-42096-00

$2.55

4

FRONT UPPER ARM SU

2HC-F3506-20-00

$201.99

5

BALL JOINT 2

2HC-23579-00-00

$96.99

6

CIRCLIP

93410-42096-00

$2.55

7

FRONT LOWER ARM SU

2HC-F3507-20-00

$117.99

8

FRONT LOWER ARM SU

2HC-F3508-20-00

$117.99

9

BUSH, SOLID

90381-18003-00

$7.49

10

COLLAR

90387-12063-00

$13.99

11

COVER, THRUST 1

1XD-23517-01-00

$9.99

12

BOLT

90101-12050-00

$11.49

13

WASHER, PLATE

90201-12045-00

$5.60

14

NUT, SELF-LOCKING

90185-12007-00

$10.49

15

NIPPLE, GREASE

93700-06M03-00

Unavailable

16

NIPPLE, GREASE (36X)

93700-06009-00

Unavailable

17

NUT, CASTLE

90171-14005-00

Unavailable

18

PIN, COTTER

91401-30025-00

Unavailable

19

NUT, CASTLE

90171-14005-00

Unavailable

20

PIN, COTTER

91401-30025-00

Unavailable

21

SHOCK ABSORBER ASS

2HC-F3390-00-00

Unavailable

22

LABEL,WARNING

1HP-F2259-01-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable

24

BOLT, FLANGE

90105-10283-00

Unavailable

25

COVER, UNDER 1

2HC-F3123-01-00

Unavailable

26

COVER, UNDER 2

2HC-F3133-01-00

Unavailable

27

BOLT, WITH WASHER

90119-06212-00

Unavailable

28

COVER 1

2HC-F198F-00-00

Unavailable

29

BAR, STABILIZER FRONT

8GN-2386E-00-00

Unavailable

30

JOINT, STABILIZER 1

16B-2385L-10-00

Unavailable

31

JOINT, STABILIZER 2

16B-2385M-10-00

Unavailable

32

WASHER, PLATE

90201-10035-00

Unavailable

33

NUT, SELF-LOCKING

90185-10012-00

Unavailable

34

BUSH

2HC-F3583-00-00

Unavailable

35

BRKT., STABILIZER

2HC-F386B-00-00

Unavailable

36

BOLT, FLANGE

95817-08014-00

Unavailable
