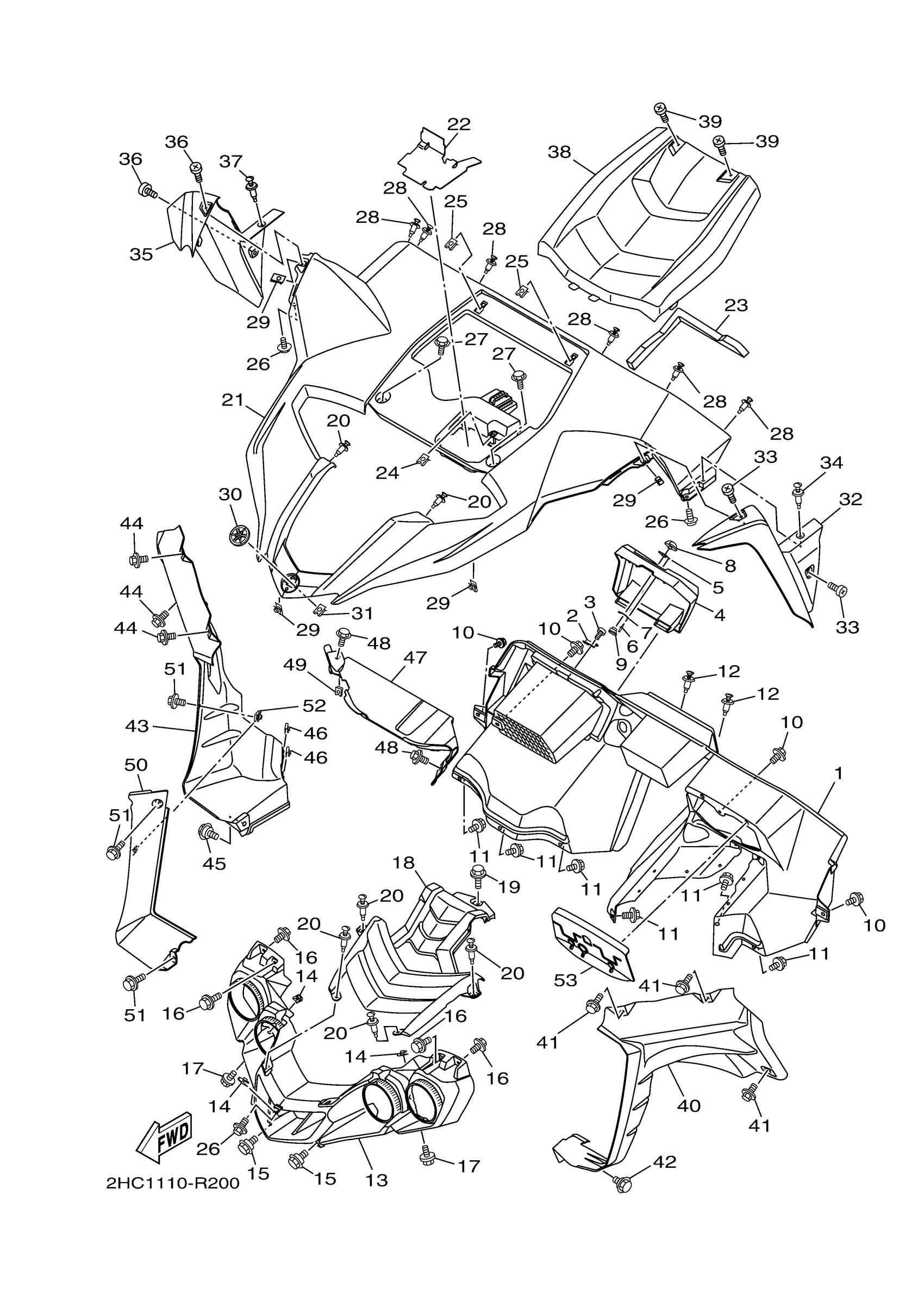

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
2HC-K7711-01-00
Unavailable
2
BRACKET, COVER
1XD-F139T-00-00
$2.70
3
SCREW, TAPPING
90164-04800-00
Unavailable
4
LID
2HC-F160F-00-00
$49.99
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
6
RIVET, BLIND
90267-24143-00
$8.49
7
WASHER, SPECIAL 2
1XD-F1516-00-00
$1.92
8
LOCK 1
1XD-2837G-00-00
$4.06
9
LOCK 2
1XD-2837H-00-00
$2.70
10
BOLT,HEX SKT HEAD
90111-06814-00
$3.76
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
GRILLE, FRONT
2HC-F8309-00-00
Unavailable
14
NUT, SPRING
90183-060A6-00
$5.49
15
BOLT
90109-06202-00
$7.49
16
BOLT, WITH WASHER
90119-06226-00
$8.49
17
BOLT, WITH WASHER
90119-06226-00
$8.49
18
COVER, UPPER 1
2HC-F3121-00-00
Unavailable
19
BOLT, WITH WASHER
90119-06226-00
$8.49
20
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
21
FENDER,FRONT
2HC-F1511-01-00
Unavailable
22
INSULATOR 1
2HC-8258K-00-00
Unavailable
23
INSULATOR 2
2HC-8259K-00-00
Unavailable
24
NUT, SPRING
90183-060A6-00
$5.49
25
NUT, SPRING
90183-060A6-00
$5.49
26
BOLT, WITH WASHER
90119-06226-00
$8.49
27
BOLT, WITH WASHER
90119-06226-00
$8.49
28
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
29
NUT, SPRING
90183-060A6-00
$5.49
30
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
31
NUT, SPRING
90183-06071-00
Unavailable
32
EXTENSION,FRONTFENDER1
2HC-K8185-01-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
35
EXTENSION,FRONTFENDER2
2HC-K8186-01-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
37
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
38
HOOD 1
2HC-F1982-00-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
40
COVER 1
2HC-E246A-00-00
Unavailable
41
BOLT, WITH WASHER
90119-06226-00
$8.49
42
BOLT
90109-06202-00
$7.49
43
COVER 2
2HC-E246E-00-00
Unavailable
44
BOLT, WITH WASHER
90119-06226-00
$8.49
45
BOLT
90109-06202-00
$7.49
46
NUT, SPRING
90183-060A6-00
$5.49
47
COVER, DUST SEAL 1
2HC-F3383-00-00
Unavailable
48
BOLT, WITH WASHER
90119-06226-00
$8.49
49
NUT, SPRING
90183-060A6-00
$5.49
50
COVER, DUST SEAL 2
2HC-F3384-00-00
Unavailable
51
BOLT, WITH WASHER
90119-06226-00
$8.49
52
NUT, SPRING
90183-060A6-00
$5.49
53
COVER, SEAL 3
2HC-F338G-00-00
Unavailable
