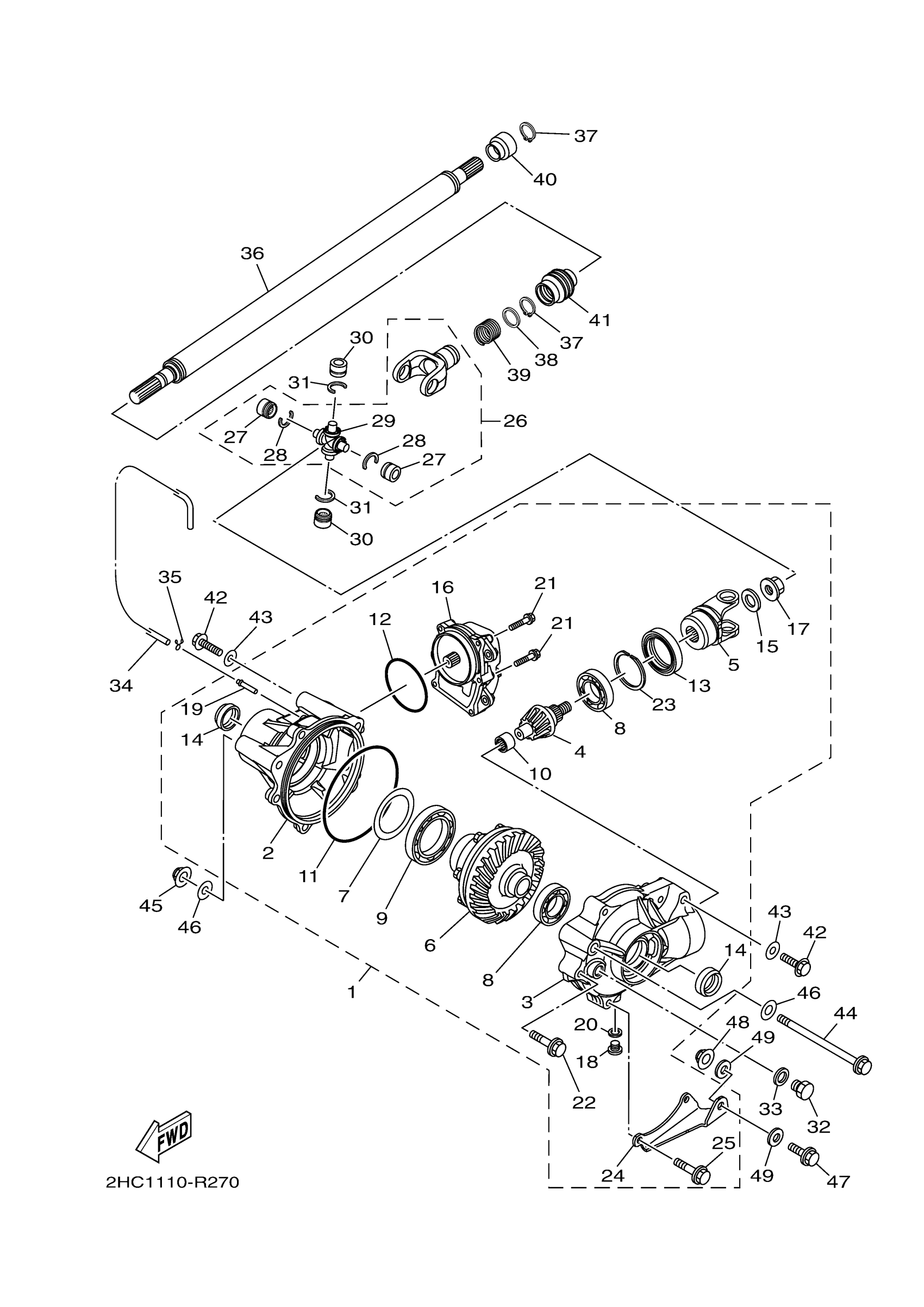

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 FRONT DIFFERENTIAL Diagram

#

Description
Price

1

FRONT AXLE GEAR CASE COMP.

2HC-46160-12-00

$1,854.99

2

HOUSING, BEARING 2

1XD-46162-00-00

$394.99

3

HOUSING, SHAFT DRIVE 2

2HC-46161-00-00

Unavailable

4

PINION, DRIVE 2

2HC-46141-10-00

$323.99

5

YOKE, JOINT 2

4S1-46146-01-00

Unavailable

6

LIMITED SLIP DIFF. ASSY

2HC-46470-10-00

$1,027.99

7

SHIM, RING GEAR (0.1T)

3B4-46117-00-00

$8.99

7

SHIM, RING GEAR (0.2T)

3B4-46117-10-00

Unavailable

7

SHIM, RING GEAR (0.3T)

3B4-46117-20-00

Unavailable

7

SHIM, RING GEAR (0.4T)

3B4-46117-30-00

Unavailable

8

BEARING(2HR)

93306-00612-00

$47.99

9

BEARING 1

3B4-46164-00-00

$86.99

10

BEARING 3

3B4-46166-00-00

$27.99

11

O-RING 1

3B4-46134-00-00

$18.49

12

O-RING 2

3B4-46135-00-00

$5.49

13

OIL SEAL

93105-46001-00

Unavailable

14

SEAL,OIL 1

3B4-46163-00-00

Unavailable

15

WASHER, PLATE

90201-14021-00

Unavailable

16

SERVO MOTOR COMP

1HP-4616A-00-00

Unavailable

17

NUT 1

4WV-46145-11-00

Unavailable

18

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

Unavailable

19

TUBE

5GH-46293-00-00

Unavailable

20

GASKET

90430-10003-00

Unavailable

21

BOLT, FLANGE

95812-06014-00

Unavailable

22

BOLT, FLANGE

95817-08040-00

Unavailable

23

RING,HOLE SNAP 1

3B4-46142-00-00

Unavailable

24

PLATE COVER

99999-04573-00

Unavailable

25

BOLT, FLANGE

95817-08050-00

Unavailable

26

CROSS JOINT COMP. 2

2HC-46107-00-00

Unavailable

27

BEARING

93399-99948-00

Unavailable

28

CIRCLIP (4X7)

93440-20088-00

Unavailable

29

SPIDER

5GT-46187-00-00

Unavailable

30

BEARING

93399-99948-00

Unavailable

31

CIRCLIP (4X7)

93440-20088-00

Unavailable

32

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

33

GASKET

214-11198-01-00

Unavailable

34

HOSE (L1500)

90445-07047-00

Unavailable

35

CLIP (1J7)

90467-07029-00

Unavailable

36

DRIVE SHAFT COMP.

2HC-46109-00-00

Unavailable

37

CIRCLIP(1EY)

99009-19400-00

Unavailable

38

WASHER PLATE 132172160000

90201-20266-00

Unavailable

39

SPRING, COMPRESSION

90501-235L9-00

Unavailable

40

SEAL 2

5GT-46137-00-00

Unavailable

41

SEAL 1

5GT-46136-00-00

Unavailable

42

BOLT, FLANGE

90105-10255-00

Unavailable

43

WASHER, PLATE

90201-10035-00

Unavailable

44

BOLT, FLANGE

90105-12066-00

Unavailable

45

NUT, SELF-LOCKING

90185-12002-00

Unavailable

46

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

47

BOLT

90101-10038-00

Unavailable

48

NUT, SELF-LOCKING

90185-10011-00

Unavailable

49

WASHER, PLATE

90201-10034-00

Unavailable
