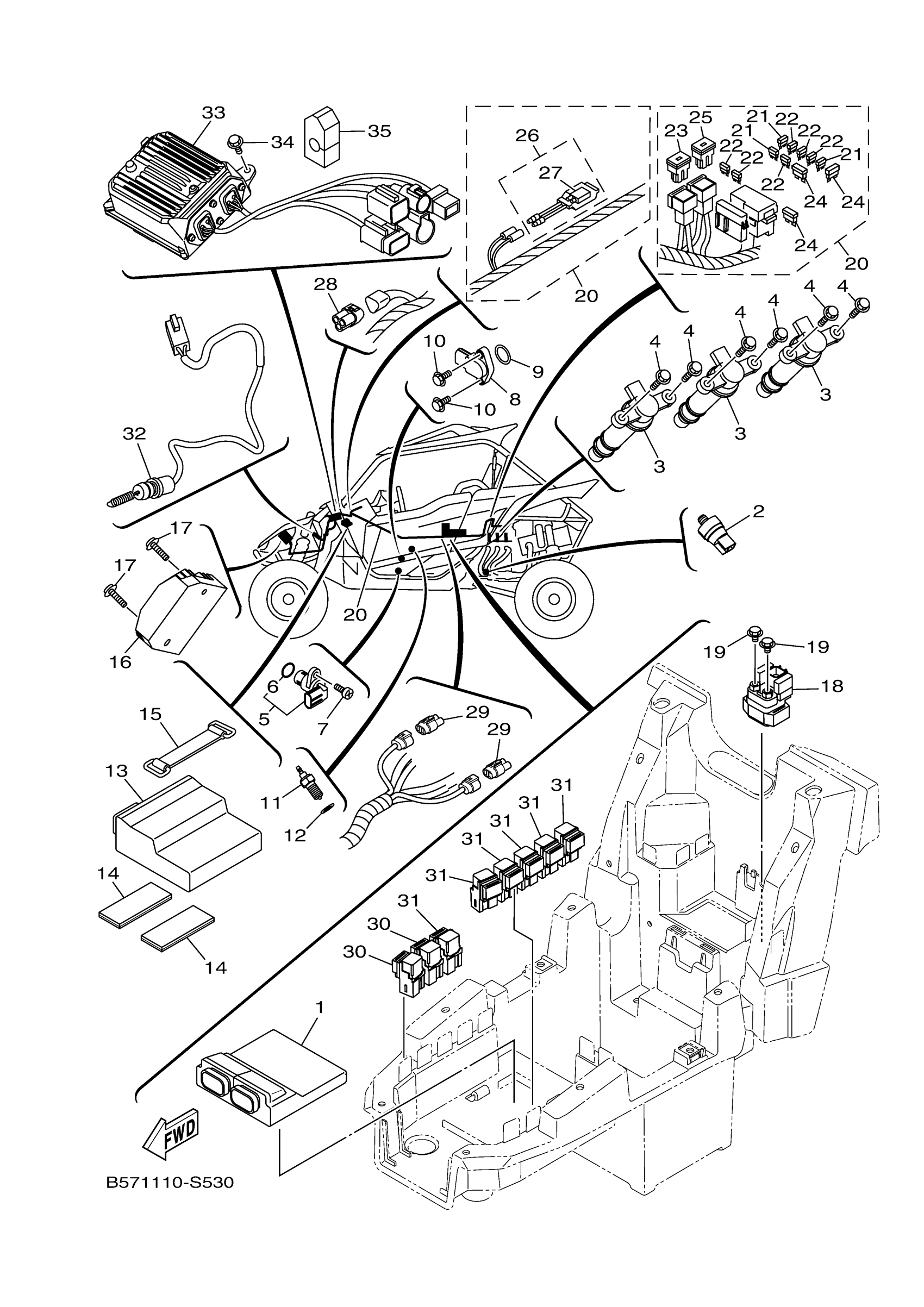

Yamaha YXZ10YEXHO (YXZ1000R EPS SS) B5711 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

B57-8591A-01-00

$635.99

2

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

3

IGNITION COIL ASSY

2HC-82310-00-00

$117.99

4

BOLT, FLANGE

95817-06025-00

Unavailable

5

SENSOR, SPEED

1TP-83755-00-00

$77.99

6

O-RING

4D9-81168-00-00

$6.99

7

BOLT,SOCKET

91317-06016-00

$1.25

8

SENSOR, GEAR POSITION

2HC-85899-10-00

$87.99

9

O-RING

93210-17008-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

11

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

12

GASKET (1KH,1.0T)

90430-10148-00

$5.60

13

MOTOR CONTROL UNIT ASSY

B57-86510-00-00

$1,314.99

14

DAMPER

1HP-H2176-01-00

$2.17

15

BAND, BATTERY

2T4-82131-00-00

$8.99

16

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

17

BOLT, FLANGE

90105-06833-00

Unavailable

18

STARTER RELAY ASSY (RC19-077A)

4D3-81940-00-00

Unavailable

19

BOLT, FLANGE

95022-06008-00

Unavailable

20

WIRE HARNESS ASSY

B57-82590-00-00

Unavailable

21

FUSE (15A)

67F-82151-50-00

Unavailable

22

. FUSE (10A)

67F-82151-40-00

Unavailable

23

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

24

FUSE

5JJ-82151-60-00

Unavailable

25

FUSE (50A)

5JW-82151-10-00

Unavailable

26

CIRCUIT BREAKER ASSY

5B4-82180-00-00

Unavailable

27

THERMO SWITCH ASSY

5B4-82560-00-00

Unavailable

28

CONNECTOR

8CR-82378-00-00

Unavailable

29

CONNECTOR

B57-82378-00-00

Unavailable

30

RELAY ASSY

5DM-81950-01-00

Unavailable

31

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

32

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

33

POWER STRG. CONT. UNIT ASSY

2HC-859A0-10-00

Unavailable

34

BOLT, FLANGE

95817-06016-00

Unavailable

35

PLATE, INSULATOR

2HC-H257L-00-00

Unavailable
