Description

Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SHIFT SHAFT ASSY

2HC-18101-00-00

$63.99

3

SPRING, TORSION

90508-32021-00

$5.49

4

CIRCLIP

99002-10600-00

$8.49

5

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

6

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

7

OIL SEAL (4G0)

93102-12224-00

$10.49

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99002-10600-00

$8.49

10

SHIFT ACTUATOR ASSY

B57-82450-02-00

$778.99

11

BOLT, BUTTON HEAD

92012-08025-00

$7.49

12

ARM, SHIFT

B57-18112-00-00

$40.99

13

BOLT, FLANGE

95022-06020-00

$3.62

14

ROD, SHIFT

B57-18115-00-00

Unavailable

15

NUT(650)

95380-06700-00

$8.49

16

JOINT, ROD 1

5LV-18116-00-00

Unavailable

17

COVER, DUST

4XV-18154-00-00

Unavailable

18

NUT (2H9)

90170-06228-00

Unavailable

19

JOINT, ROD 2

5LV-18117-00-00

Unavailable

20

COLLAR

90387-06106-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

22

SHIFTER ASSY

B57-18300-11-00

Unavailable

23

BOLT, FLANGE

90105-08182-00

Unavailable

24

. WASHER

92902-08200-00

Unavailable

25

HOSE (L280)

90445-11003-00

Unavailable

26

CLIP

90467-110A3-00

Unavailable

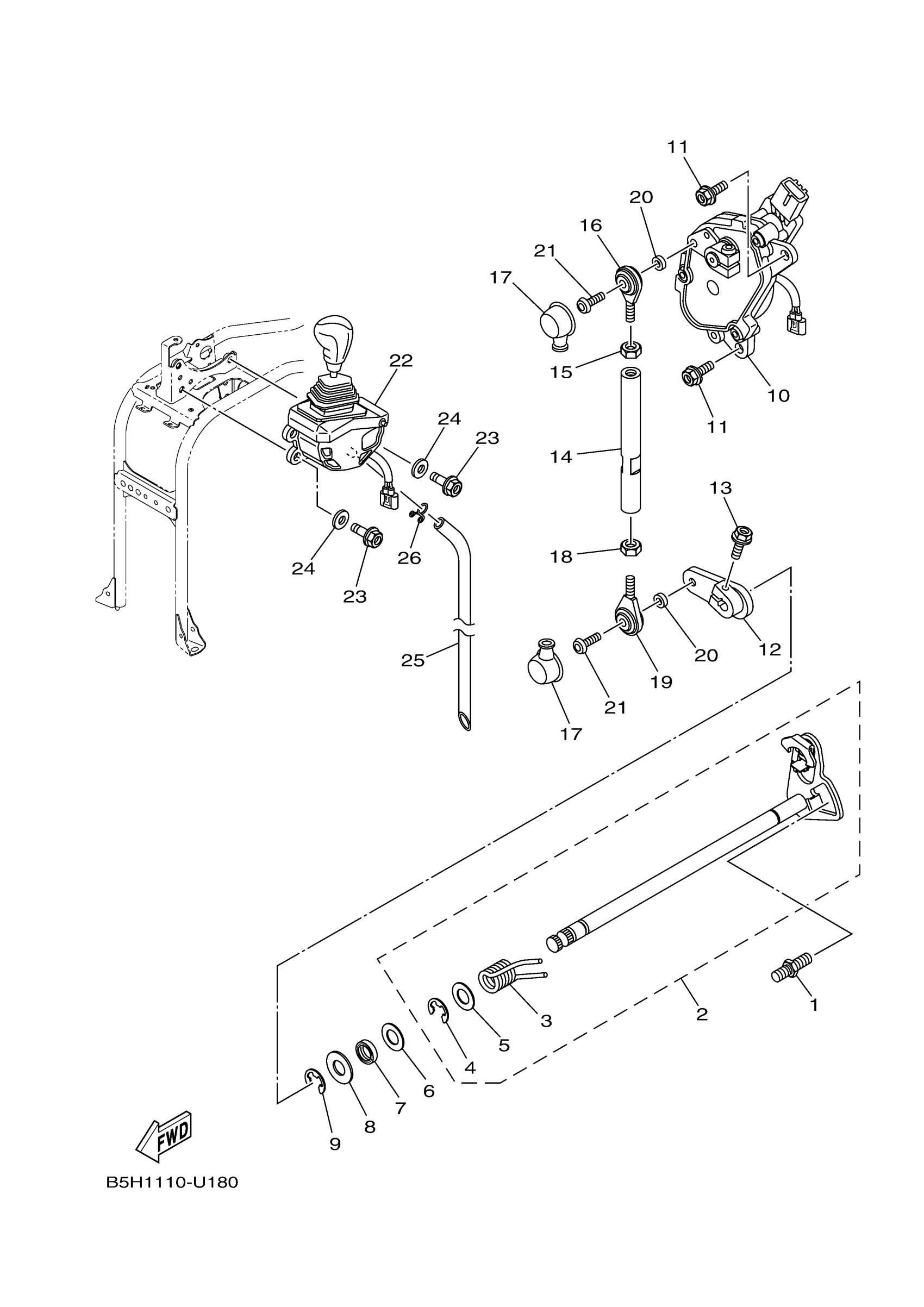

Yamaha YXZ10YESMW (YXZ1000R SS SE CAL) BASD 2021 SHIFT SHAFT Diagram

STOPPER, SCREW

SHIFT SHAFT ASSY

SPRING, TORSION

CIRCLIP

WASHER, PLATE (5N6)

WASHER, PLATE (5N6)

OIL SEAL (4G0)

WASHER, PLATE (353)

CIRCLIP

SHIFT ACTUATOR ASSY

BOLT, BUTTON HEAD

ARM, SHIFT

BOLT, FLANGE

ROD, SHIFT

NUT(650)

JOINT, ROD 1

COVER, DUST

NUT (2H9)

JOINT, ROD 2

COLLAR

BOLT, BUTTON HEAD

SHIFTER ASSY

BOLT, FLANGE

. WASHER

HOSE (L280)

CLIP
