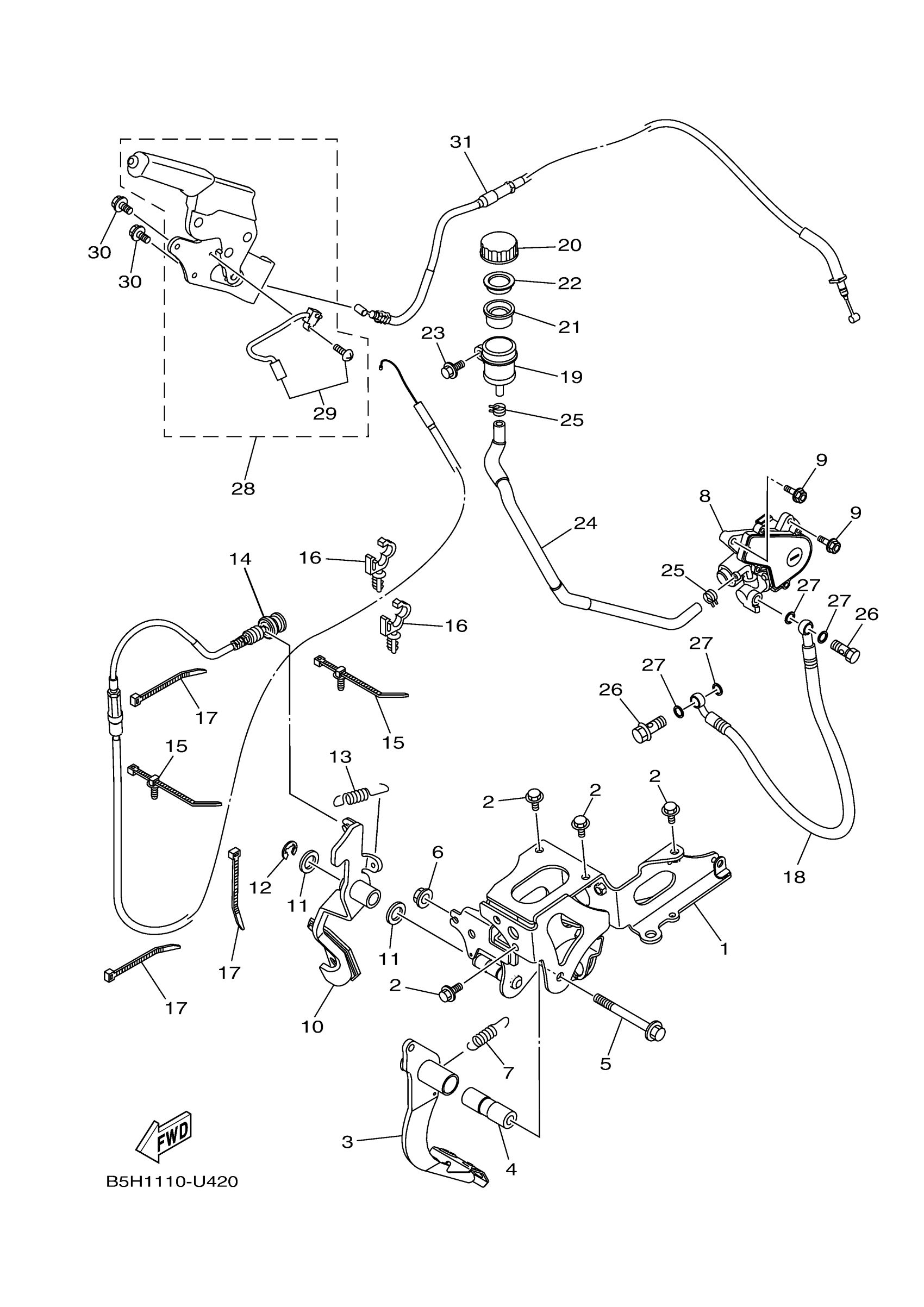

Yamaha YXZ10YESMW (YXZ1000R SS SE CAL) BASD 2021 PEDAL WIRE Diagram
#
1
BRACKET,PEDL SUPRT
B57-F2548-01-00
$81.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
PEDAL, BRAKE
2HC-F7211-00-00
$53.99
4
COLLAR
90387-10843-00
Unavailable
5
95812-10090
95812-10090-00
$2.70
6
NUT, S/L FLANGE
95602-10200-00
$4.82
7
SPRING, TENSION
90506-23022-00
$5.49
8
CLUTCH ACTUATOR ASSY
B57-82460-03-00
$1,307.99
9
BOLT, WASHER BASED (11H)
90105-08211-00
$3.23
10
PEDAL, ACCELERATOR
2HC-F7871-00-00
$49.99
11
WASHER, PLATE
90201-15018-00
$7.49
12
CIRCLIP (122)
93430-12008-00
$8.49
13
SPRING, TENSION
90506-23022-00
$5.49
14
WIRE, THROTTLE 1
2HC-26311-13-00
$65.99
15
CLAMP
5B4-F1338-00-00
$3.33
16
CLAMP
90464-12830-00
Unavailable
17
CLAMP
90464-48800-00
Unavailable
18
HOSE, CLUTCH 1
B57-26472-00-00
Unavailable
19
TANK, RESERVOIR
5JJ-25894-01-00
Unavailable
20
CAP, RESERVOIR
3XP-25852-50-00
Unavailable
21
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
Unavailable
22
BUSH,DIAPHRAGM
2VN-25855-00-00
Unavailable
23
BOLT, WITH WASHER
90119-06137-00
Unavailable
24
HOSE, RESERVOIR
B57-25895-00-00
Unavailable
25
CLIP (7K7)
90467-11044-00
Unavailable
26
BOLT, UNION
90401-10172-00
Unavailable
27
WASHER, PLATE(481)
90201-10118-00
Unavailable
28
PARKING LEVER ASSY
BDW-F5690-00-00
Unavailable
29
. SWITCH COMP
5UG-H251S-00-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
WIRE, BRAKE 1
2HC-26341-01-00
Unavailable
