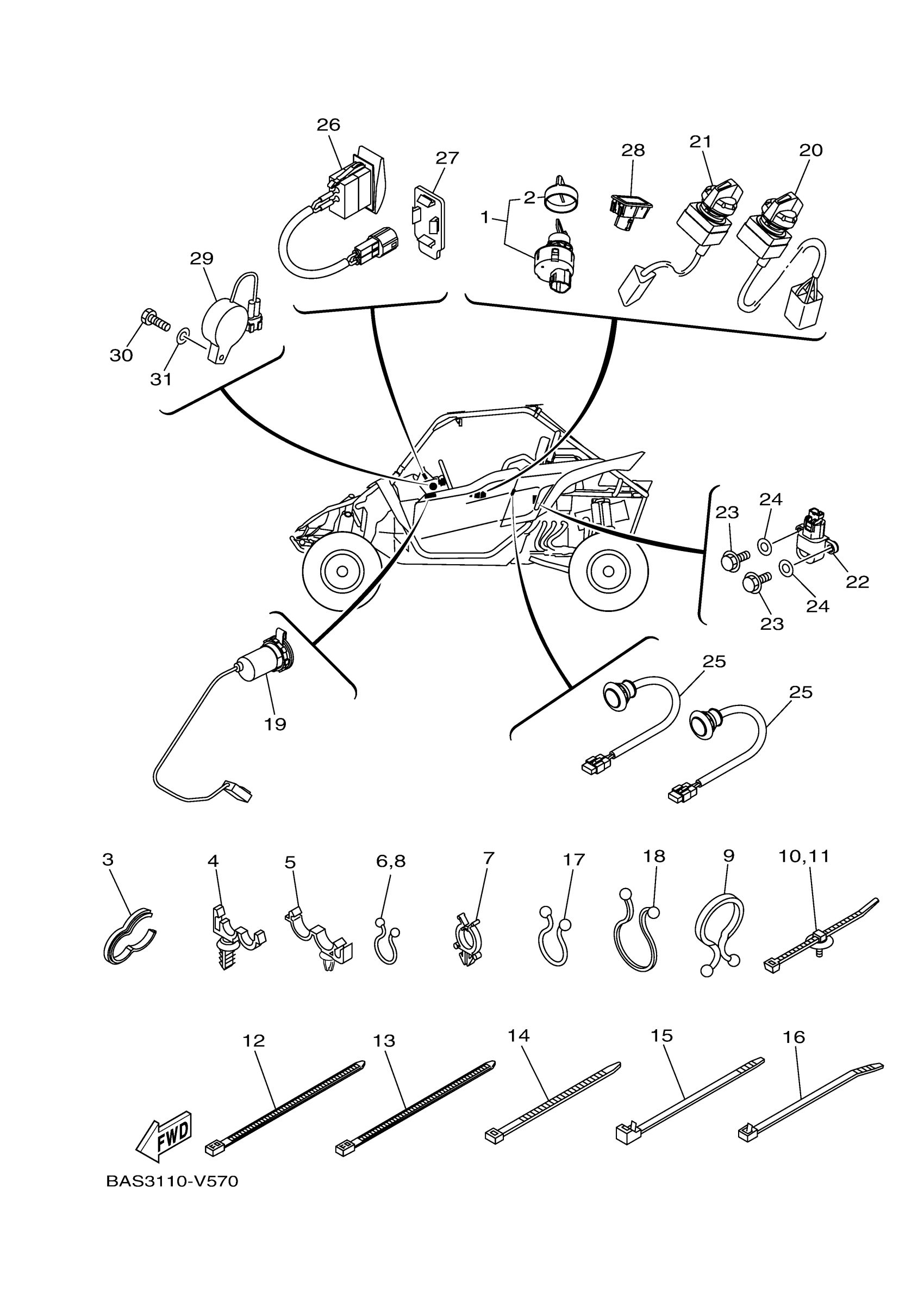

Yamaha YXZ10YESMW (YXZ1000R SS SE CAL) BASD 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

MAIN SWITCH ASSY

1XD-H2510-11-00

$32.99

2

CAP, KEY

5UG-H2579-00-00

$9.99

3

CLAMP(53Y)

90464-15065-00

$7.49

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

90464-20010-00

$3.23

6

CLAMP

90464-14800-00

$3.40

7

CLAMP

90464-25826-00

Unavailable

8

CLAMP

90464-20804-00

Unavailable

9

CLAMP

90464-37257-00

Unavailable

10

CLAMP

5B4-F1338-00-00

$3.33

11

CLAMP

1NS-F1338-00-00

$3.33

12

CLAMP(JN6)

90464-31827-00

$3.40

13

CLAMP(JN6)

90464-40825-00

$3.05

14

CLAMP

90464-48800-00

Unavailable

15

CLAMP

90464-51800-00

$14.99

16

CLAMP

90464-76800-00

Unavailable

17

CLAMP(2LM)

90464-44109-00

Unavailable

18

CLAMP

90464-25267-00

Unavailable

19

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

20

SWITCH, LAMP

2HC-82526-01-00

Unavailable

21

SWITCH, SELECT

2HC-87280-01-00

Unavailable

22

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

23

BOLT(6A1)

97095-05016-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

ROOM LIGHT ASSY

2HC-H5440-00-00

Unavailable

26

SWITCH

BAS-H2917-01-00

Unavailable

27

PLUG, HOLE

BG4-F312G-00-00

Unavailable

28

PILOT LIGHT ASSY

1XD-H3530-10-00

Unavailable

29

BUZZER

2MB-83383-00-00

Unavailable

30

BOLT(3JK)

97027-05020-00

Unavailable

31

WASHER, PLAIN (646)

92990-05600-00

Unavailable
