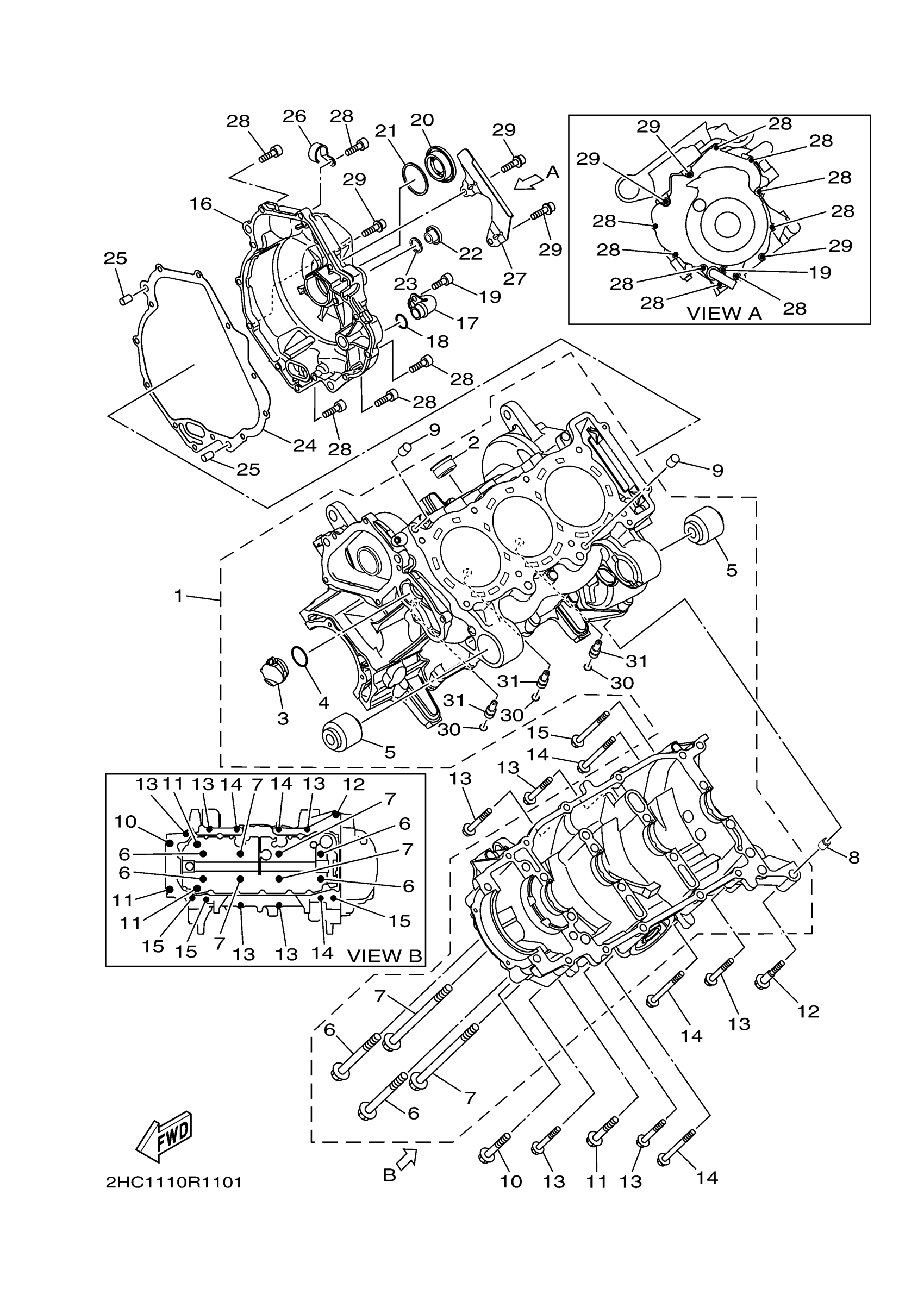

Yamaha YXZ10YESMW (YXZ1000R SS SE CAL) BASD 2021 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2HC-15109-07-00

$2,180.99

2

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

3

PLUG, BLIND 1

8ES-15167-00-00

$11.99

4

O-RING(1HX)

93210-24709-00

$9.49

5

COLLAR

2HC-15541-00-00

$29.99

6

BOLT, WITH WASHER

90119-09004-00

$11.49

7

BOLT, WITH WASHER

90119-09011-00

$42.99

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, FLANGE

95817-08055-00

$4.21

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

12

BOLT

90109-06185-00

$8.49

13

BOLT, FLANGE

95812-06055-00

$1.75

14

BOLT, FLANGE

95812-06080-00

$8.49

15

BOLT, FLANGE

95817-06080-00

$4.72

16

COVER, CRANKCASE 2

B5H-15421-00-00

Unavailable

17

CONNECTOR, SUCTION PIPE

2HC-13115-00-00

Unavailable

18

O-RING

93210-14003-00

Unavailable

19

BOLT (33M)

91312-06014-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-36004-00

Unavailable

21

O-RING

93210-35804-00

Unavailable

22

PLUG, STRAIGHT SCREW

90340-14016-00

Unavailable

23

O-RING (2H9)

93210-14369-00

Unavailable

24

GASKET, CRANKCASE

2HC-15461-00-00

Unavailable

25

PIN, DOWEL

99530-08012-00

Unavailable

26

CLAMP(4AJ)

90462-08225-00

Unavailable

27

PLATE

B5H-15191-00-00

Unavailable

28

BOLT,SOCKET

91317-06025-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

Unavailable

30

O-RING (210)

93210-04092-00

Unavailable

31

. NOZZLE 3

4XV-15155-00-00

Unavailable
