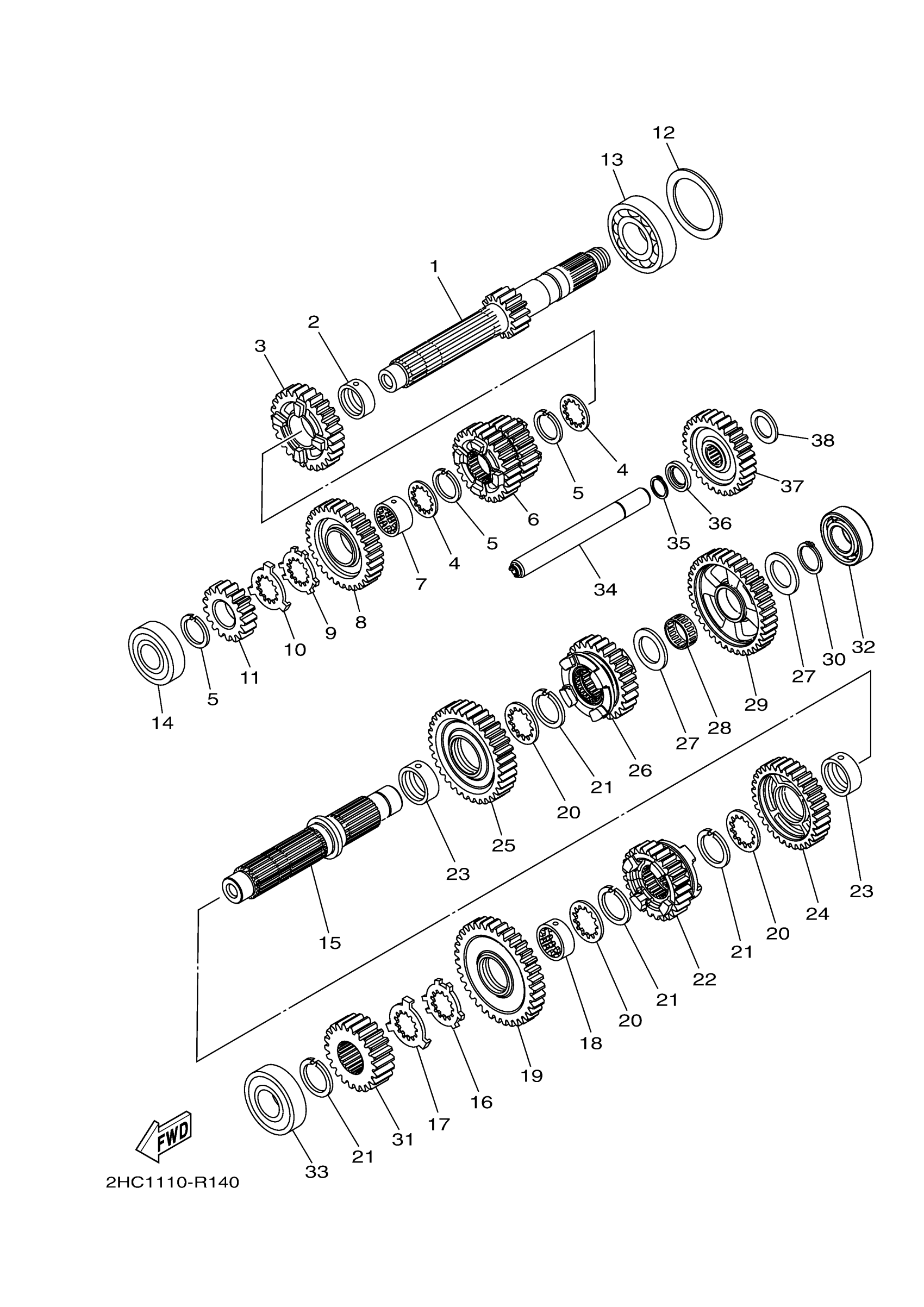

Yamaha YXZ10YESMB (YXZ1000R SS SE) BAS8 2021 TRANSMISSION Diagram
#
1
AXLE, MAIN (15T)
2HC-17411-00-00
$142.99
2
COLLAR
90387-28003-00
$29.99
3
GEAR, 4TH PINION (26T)
2HC-17141-00-00
$101.99
4
WASHER
90209-25011-00
$8.49
5
CIRCLIP
93440-28184-00
$4.67
6
GEAR, 2ND PINION (26T/22T)
2HC-17121-00-00
$238.99
7
COLLAR
90387-25023-00
$41.99
8
GEAR, 5TH PINION (31T)
2HC-17151-00-00
$122.99
9
WASHER, CLAW
90214-25004-00
$9.49
10
WASHER, CLAW
90214-25003-00
$9.49
11
GEAR,1ST PINION
2HC-17111-10-00
Unavailable
12
WASHER, PLATE
90201-51013-00
$13.49
13
BEARING
93306-37817-00
$72.99
14
BEARING
93306-37215-00
$47.99
15
AXLE, DRIVE
2HC-17421-00-00
$163.99
16
WASHER, CLAW
90214-29002-00
Unavailable
17
WASHER, CLAW
90214-28002-00
Unavailable
18
COLLAR
90387-28004-00
Unavailable
19
GEAR, 1ST WHEEL
2HC-17211-10-00
Unavailable
20
WASHER
90209-28008-00
Unavailable
21
CIRCLIP
93440-31187-00
Unavailable
22
GEAR, 5TH WHEEL
B57-17251-00-00
Unavailable
23
COLLAR
90387-31003-00
Unavailable
24
GEAR, 3RD WHEEL
B57-17231-00-00
Unavailable
25
GEAR, 2ND WHEEL
B57-17221-00-00
Unavailable
26
GEAR, 4TH WHEEL
B57-17241-00-00
Unavailable
27
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
28
BRG,CYL-CAL ROLLER 15G KY
93310-32590-00
Unavailable
29
GEAR, REVERSE WHEEL 2 (37T)
2HC-17253-00-00
Unavailable
30
CIRCLIP (256)
93410-25017-00
Unavailable
31
GEAR, MIDDLE DRIVE
B5H-17582-00-00
Unavailable
32
BEARING
93306-20595-00
Unavailable
33
BEARING
93306-30585-00
Unavailable
34
AXLE, IDLE
2HC-17432-00-00
Unavailable
35
CIRCLIP (525)
93410-17037-00
Unavailable
36
RETAINER, SPRING
2HC-18473-00-00
Unavailable
37
REVERSE WHEEL ASSY (28T)
2HC-1724A-00-00
Unavailable
38
WASHER PLATE 306155610000
90201-17257-00
Unavailable
