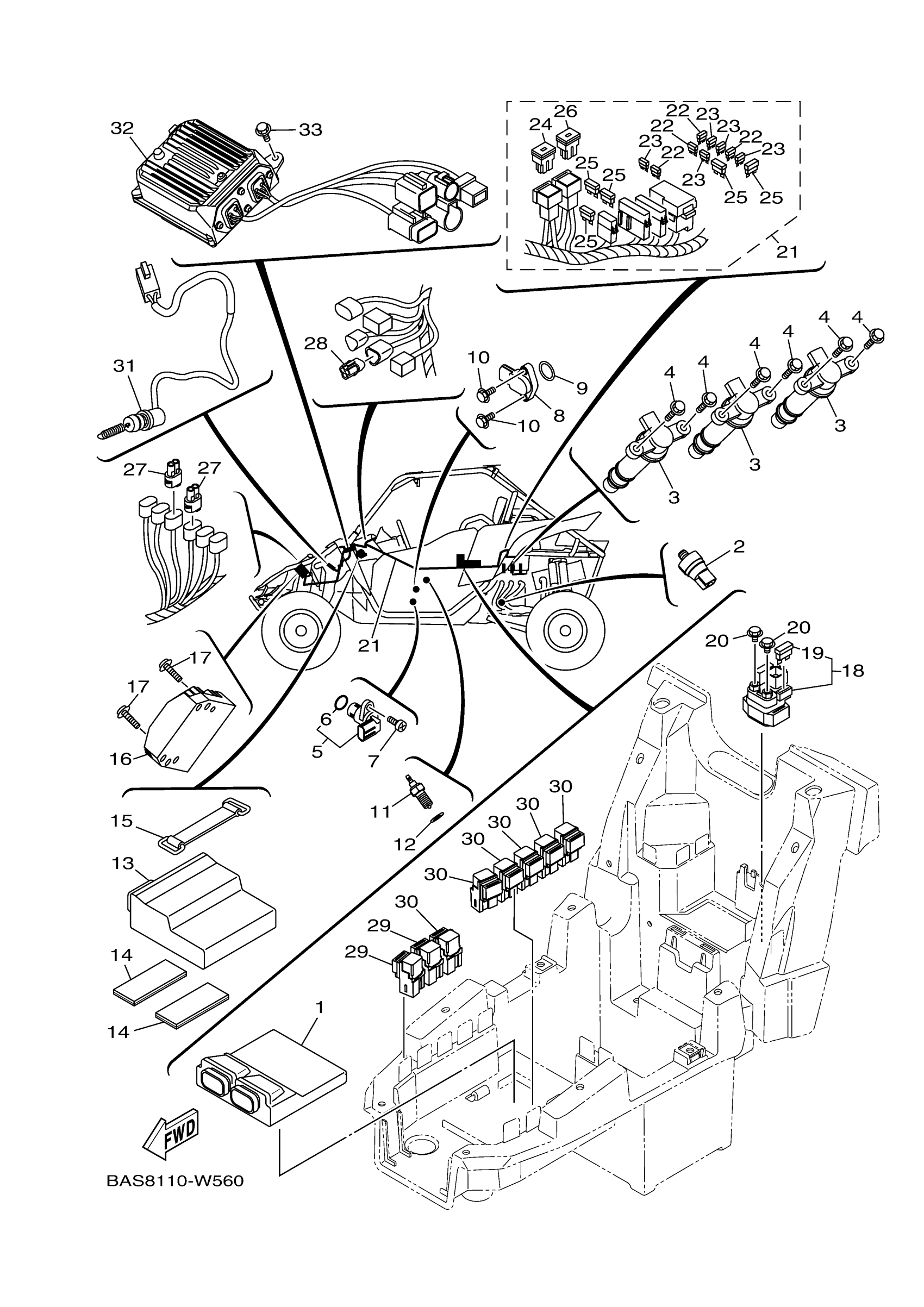

Yamaha YXZ10YESMB (YXZ1000R SS SE) BAS8 2021 ELECTRICAL 1 Diagram
#
Description
Price
1
ENGINE CONTROL UNI
B5H-8591A-21-00
Unavailable
4
BOLT, FLANGE
95817-06025-00
Unavailable
9
O-RING
93210-17008-00
Unavailable
13
MOTOR CONTROL UNIT ASSY
B5H-86510-00-00
Unavailable
16
RECTIFIER & REGULATOR ASSY
B5H-81960-00-00
Unavailable
17
BOLT, FLANGE
90105-06833-00
Unavailable
18
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
Unavailable
19
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
20
BOLT, FLANGE
95022-06008-00
Unavailable
21
WIRE HARNESS ASSY
B5H-82590-11-00
Unavailable
22
FUSE (15A)
67F-82151-50-00
Unavailable
23
. FUSE (10A)
67F-82151-40-00
Unavailable
24
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
25
FUSE
5JJ-82151-60-00
Unavailable
26
FUSE (50A)
5JW-82151-10-00
Unavailable
27
CONNECTOR
B5H-82378-00-00
Unavailable
28
CONNECTOR
B5H-82529-00-00
Unavailable
29
RELAY ASSY
5DM-81950-01-00
Unavailable
30
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
31
STOP SWITCH ASSY
B90-82530-01-00
Unavailable
32
POWER STRG. CONT.
B5H-859A0-01-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
