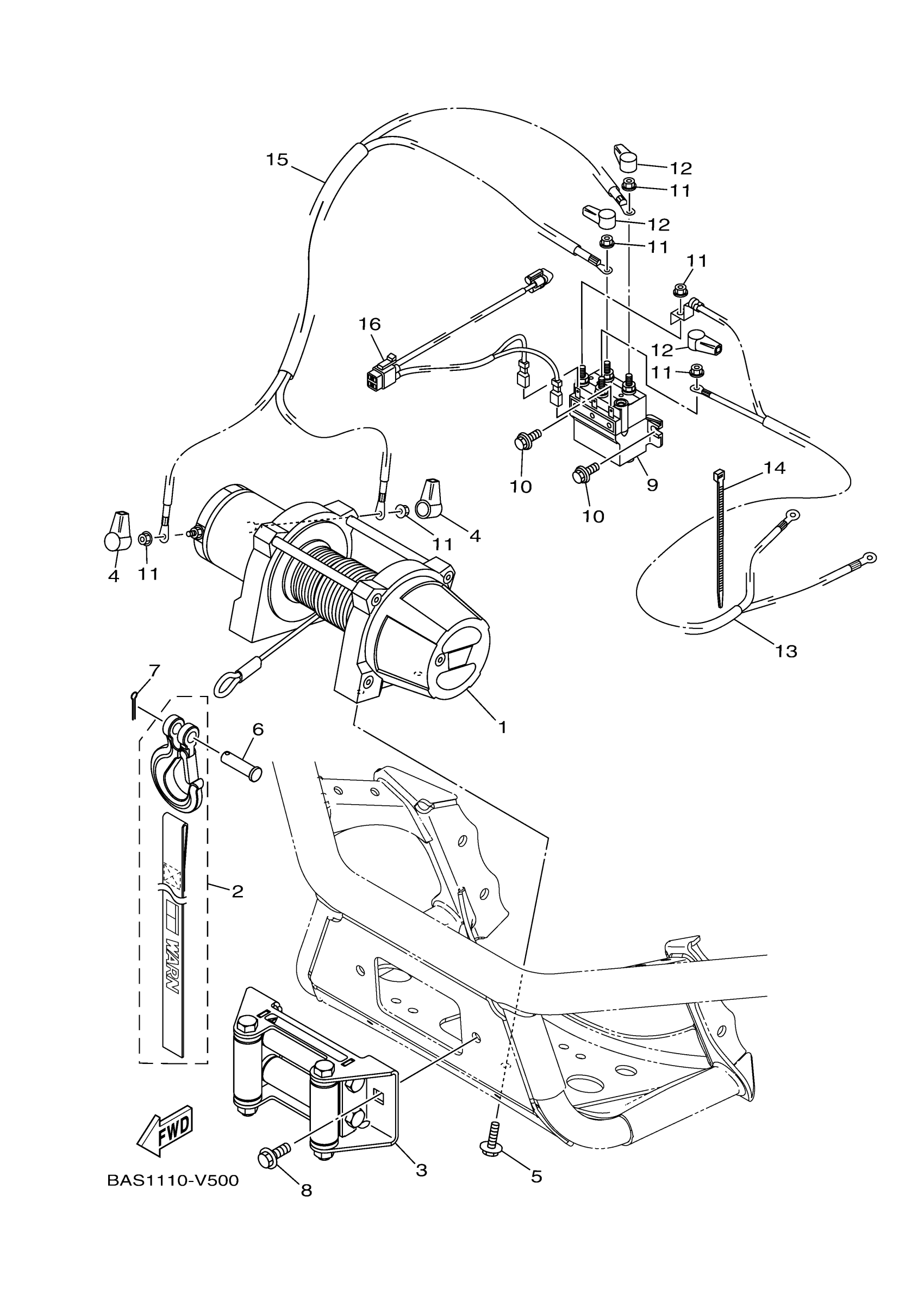

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 WINCH Diagram

#

Description
Price

1

WINCH

BAS-F845V-00-00

$624.18

2

HOOK

BAS-F8488-02-00

$36.74

3

ROLLER

BAS-F178G-03-00

$77.18

4

PROTECTOR

BAS-F3472-00-00

$4.31

5

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$0.89

6

PIN

BAS-F818A-00-00

$2.58

7

PIN COTTER

91490-30025-00

Unavailable

8

BOLT, FLANGE

95812-10016-00

$7.70

9

CONTACTOR

BAS-H232W-00-00

$147.68

10

BOLT, WITH WASHER

90119-06133-00

$4.40

11

NUT, FLANGE

95702-06500-00

$1.78

12

PROTECTOR

BAS-F3472-00-00

$4.31

13

WIRE, INNER 1

BAS-F633K-01-00

$67.98

14

CLAMP

90464-51800-00

$11.08

15

WIRE, INNER 2

BAS-F633L-02-00

$93.48

16

WIRE HARNESS

BAS-H2105-00-00

Unavailable
