Description

Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$42.99

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

BOLT, WITH WASHER

90119-06226-00

$8.49

6

PANEL, CONSOLE 2

2HC-F837M-00-00

$41.99

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

12

TOP COVER COMP.

2HC-F171C-30-00

Unavailable

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

NUT, SPRING

90183-060A6-00

$5.49

16

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

17

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

18

COVER ASSY.

2HC-F1608-30-00

Unavailable

19

LID, COVER

2HC-F177B-A0-00

Unavailable

20

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

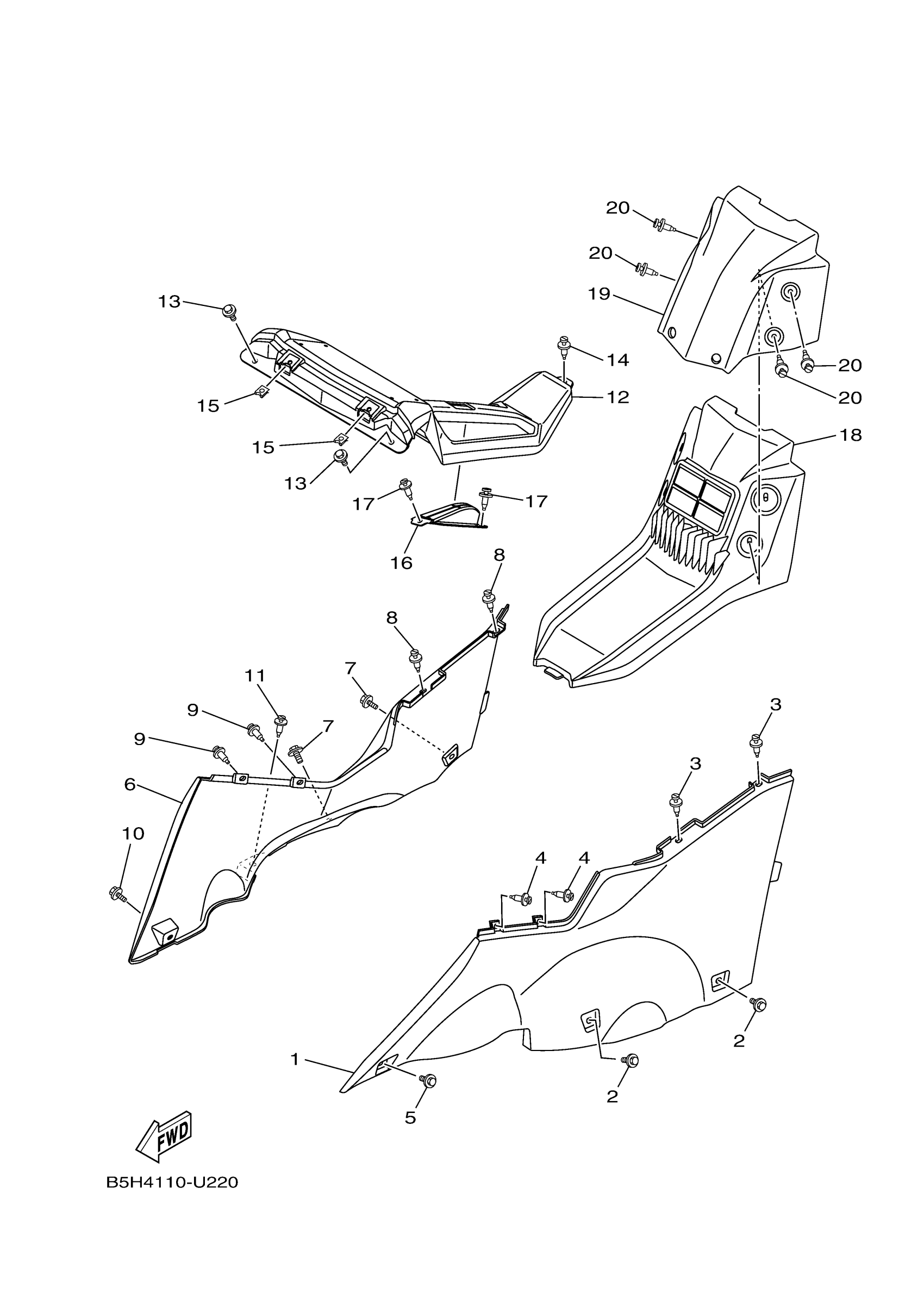

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 SIDE COVER 2 Diagram

PANEL, CONSOLE 1

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PANEL, CONSOLE 2

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

TOP COVER COMP.

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, HANDLE LEVE

RIVET,SPEC'L SHAPE

COVER ASSY.

LID, COVER

RIVET,SPEC'L SHAPE
