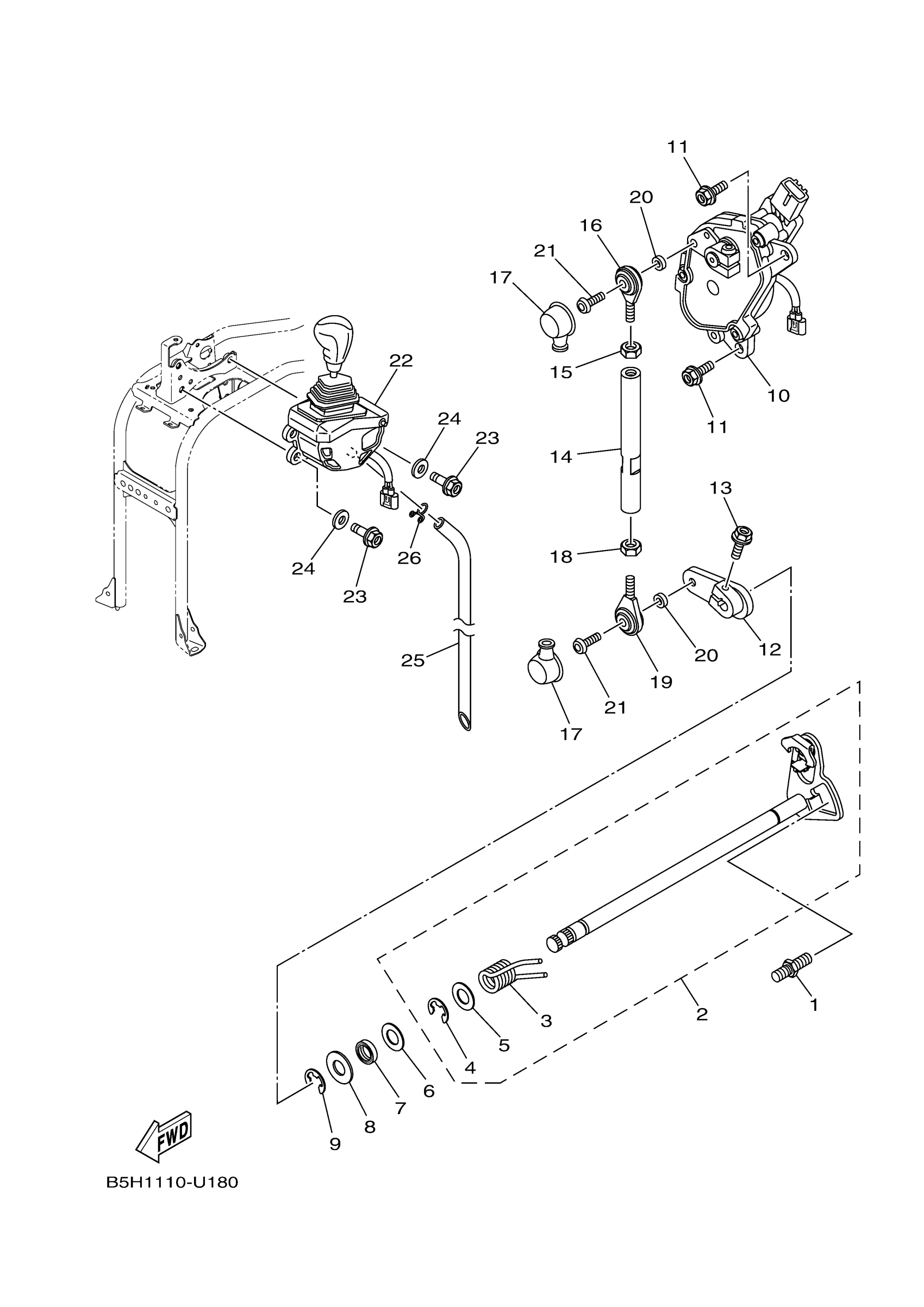

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 SHIFT SHAFT Diagram
#
Description
Price
1
STOPPER, SCREW
5VK-18127-00-00
Unavailable
2
SHIFT SHAFT ASSY
2HC-18101-00-00
$63.99
3
SPRING, TORSION
90508-32021-00
$5.49
4
CIRCLIP
99002-10600-00
$8.49
5
WASHER, PLATE (5N6)
90201-127E1-00
$4.29
6
WASHER, PLATE (5N6)
90201-127E1-00
$4.29
7
OIL SEAL (4G0)
93102-12224-00
$10.49
8
WASHER, PLATE (353)
90201-12575-00
$8.49
9
CIRCLIP
99002-10600-00
$8.49
10
SHIFT ACTUATOR ASSY
B57-82450-02-00
$778.99
11
BOLT, BUTTON HEAD
92012-08025-00
$7.49
12
ARM, SHIFT
B57-18112-00-00
$40.99
13
BOLT, FLANGE
95022-06020-00
$3.62
14
ROD, SHIFT
B57-18115-00-00
Unavailable
15
NUT(650)
95380-06700-00
$8.49
16
JOINT, ROD 1
5LV-18116-00-00
Unavailable
17
COVER, DUST
4XV-18154-00-00
Unavailable
18
NUT (2H9)
90170-06228-00
Unavailable
19
JOINT, ROD 2
5LV-18117-00-00
Unavailable
20
COLLAR
90387-06106-00
Unavailable
21
BOLT, BUTTON HEAD
92012-06020-00
Unavailable
22
SHIFTER ASSY
B57-18300-01-00
Unavailable
23
BOLT, FLANGE
90105-08182-00
Unavailable
24
. WASHER
92902-08200-00
Unavailable
25
HOSE (L280)
90445-11003-00
Unavailable
26
CLIP
90467-110A3-00
Unavailable
