Description

Price

1

SEAT BACK ASSY.

BAS-F4790-02-00

Unavailable

2

SEAT ASSY.

BAS-F4700-02-00

$541.99

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

$3.69

5

PLUG

2HC-F2417-00-00

$2.75

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

7

ADJUSTER ASSY

BAS-F7270-00-00

$325.99

8

ADJUSTER ASSY

BAS-F7260-00-00

$159.99

9

BOLT, FLANGE

95817-08012-00

$5.49

10

COVER,2

2HC-F475X-01-00

$40.99

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

12

SEAT BACK ASSY.

BAS-F4790-02-00

Unavailable

13

SEAT ASSY.

BAS-F4700-02-00

$541.99

14

FRAME, SEAT 2

2HC-F473D-01-00

Unavailable

15

GROMMET

1XD-F4742-00-00

$3.69

16

PLUG

2HC-F2417-00-00

$2.75

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

18

BOLT, FLANGE

95817-08012-00

$5.49

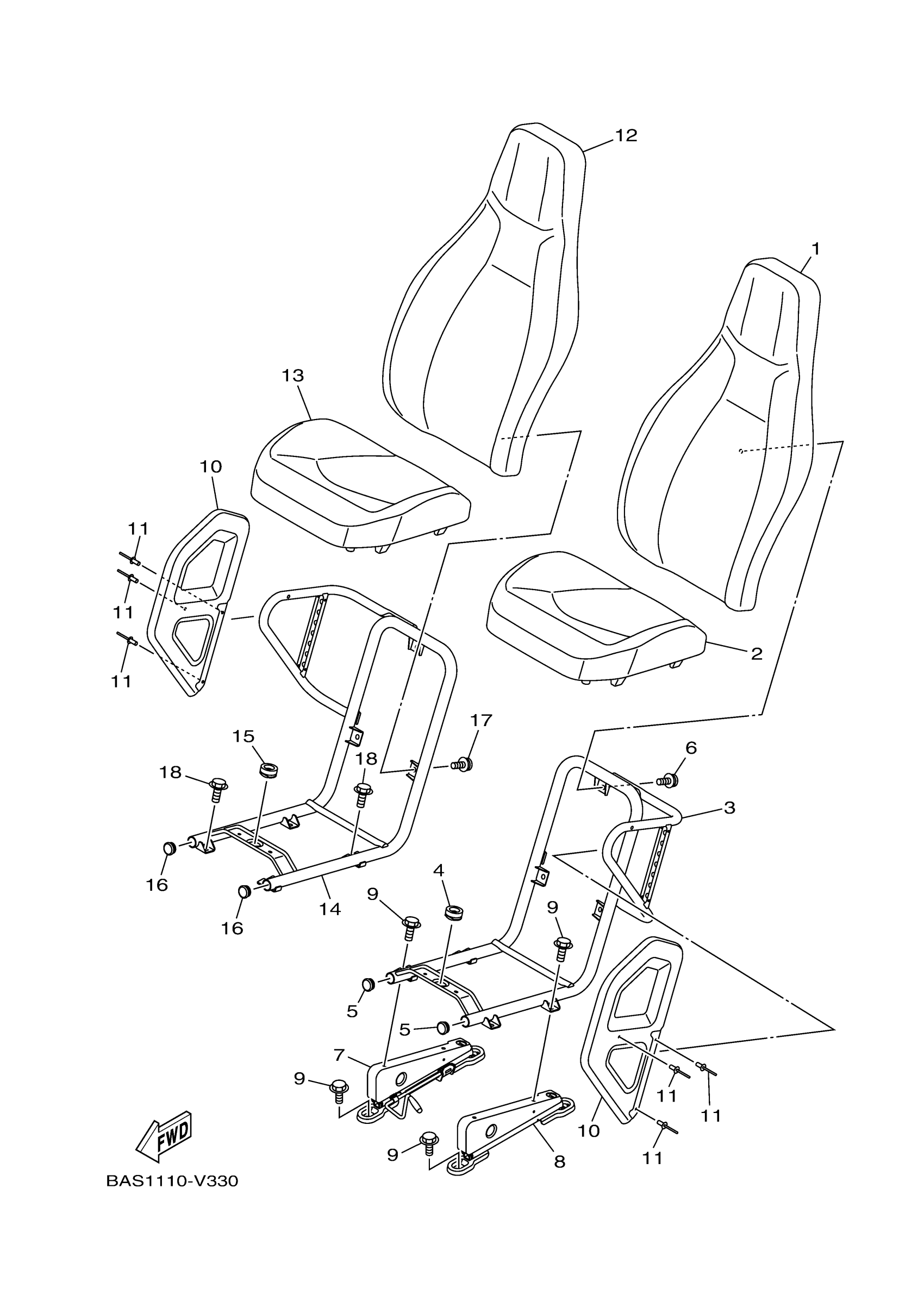

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 SEAT Diagram

SEAT BACK ASSY.

SEAT ASSY.

FRAME, SEAT 1

GROMMET

PLUG

BOLT, SEAT FITTING

ADJUSTER ASSY

ADJUSTER ASSY

BOLT, FLANGE

COVER,2

RIVET, BLIND(EU0,USA)

SEAT BACK ASSY.

SEAT ASSY.

FRAME, SEAT 2

GROMMET

PLUG

BOLT, SEAT FITTING

BOLT, FLANGE
