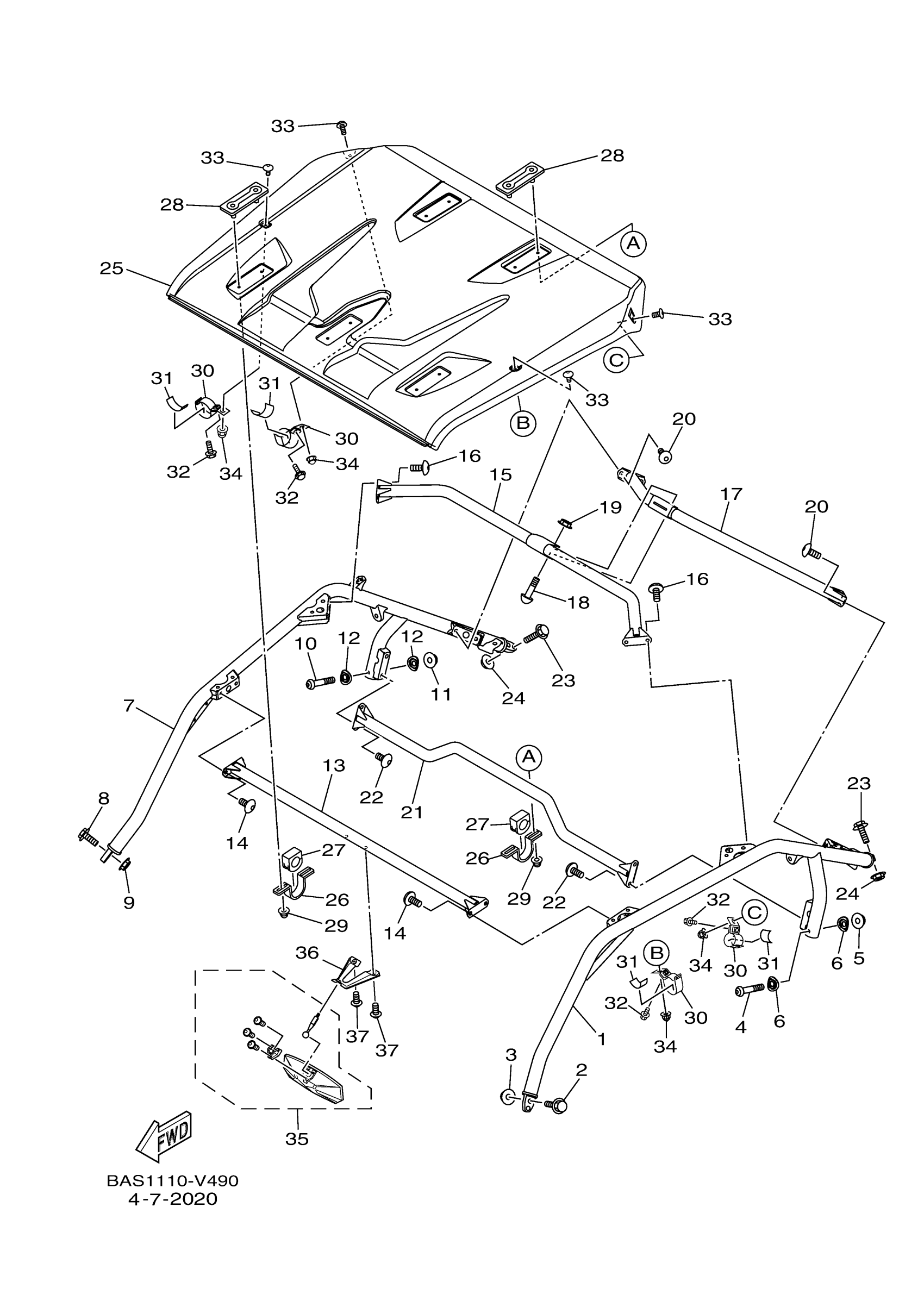

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
B5H-K831A-21-00
Unavailable
2
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
3
NUT, SELF-LOCKING
90185-10819-00
$0.90
4
BOLT, BUTTON HEAD
92012-10060-00
$3.13
5
NUT, SELF-LOCKING
90185-10011-00
$5.60
6
WASHER 2
5UG-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
B5H-K831E-21-00
Unavailable
8
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
9
NUT, SELF-LOCKING
90185-10819-00
$0.90
10
BOLT, BUTTON HEAD
92012-10060-00
$3.13
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
WASHER 2
5UG-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
BAS-K8392-21-00
$128.99
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
ROOF SUPPORT ASSY
B5H-K830A-21-00
Unavailable
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
ROOF SUPPORT ASSY
B5H-K830B-21-00
Unavailable
18
BOLT, BUTTON HEAD
92012-10060-00
$3.13
19
NUT, SELF-LOCKING
90185-10011-00
$5.60
20
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
21
ROOF SUPPORT ASSY
B5H-K830C-21-00
Unavailable
22
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
23
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
24
NUT, SELF-LOCKING
90185-10819-00
$0.90
25
COVER, SUN ROOF
B5H-K8314-01-00
Unavailable
26
CLAMP, SUPPORT
B5H-K8366-00-00
Unavailable
27
DAMPER
1XP-K7588-00-00
Unavailable
28
PLATE, 1
B5H-K7577-01-00
Unavailable
29
NUT, CROWN
90176-06008-00
Unavailable
30
CLAMP
B5H-F481H-00-00
Unavailable
31
DAMPER
5UG-K7588-01-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06180-00
Unavailable
34
NUT, CROWN
90176-06008-00
Unavailable
35
GENUINE YAMAHA SXS CENTER MIRR
BAS-F6206-V0-00
Unavailable
36
BRACKET 2
BAS-K7722-00-00
Unavailable
37
SCREW
90149-08805-00
Unavailable
