Description

Price

1

BAR, CARRY FRONT

BAS-F845N-13-00

$176.99

2

BOLT, FLANGE

95812-10016-00

$9.49

3

COVER, LOWER

2HC-F8385-01-00

$93.99

4

BOLT

90109-06202-00

$7.49

5

BOLT

90109-068A7-00

Unavailable

6

NUT, SPRING

90183-060A6-00

$5.49

7

COVER, UNDER

2HC-F2863-00-00

$126.99

8

BOLT

90109-06202-00

$7.49

9

BOLT

90109-068A7-00

Unavailable

10

GUARD 1

2HC-F2361-00-00

Unavailable

11

NUT, SPRING

90183-062A1-00

$1.96

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

BOLT

90109-06202-00

$7.49

14

GUARD 2

2HC-F2362-00-00

Unavailable

15

NUT, SPRING

90183-062A1-00

$1.96

16

BOLT, WITH WASHER

90119-06226-00

$8.49

17

BOLT

90109-06202-00

$7.49

18

GUARD, ENGINE 1

2HC-F8418-03-00

Unavailable

19

BOLT

90109-06202-00

$7.49

20

NUT, SPRING

90183-060A6-00

$5.49

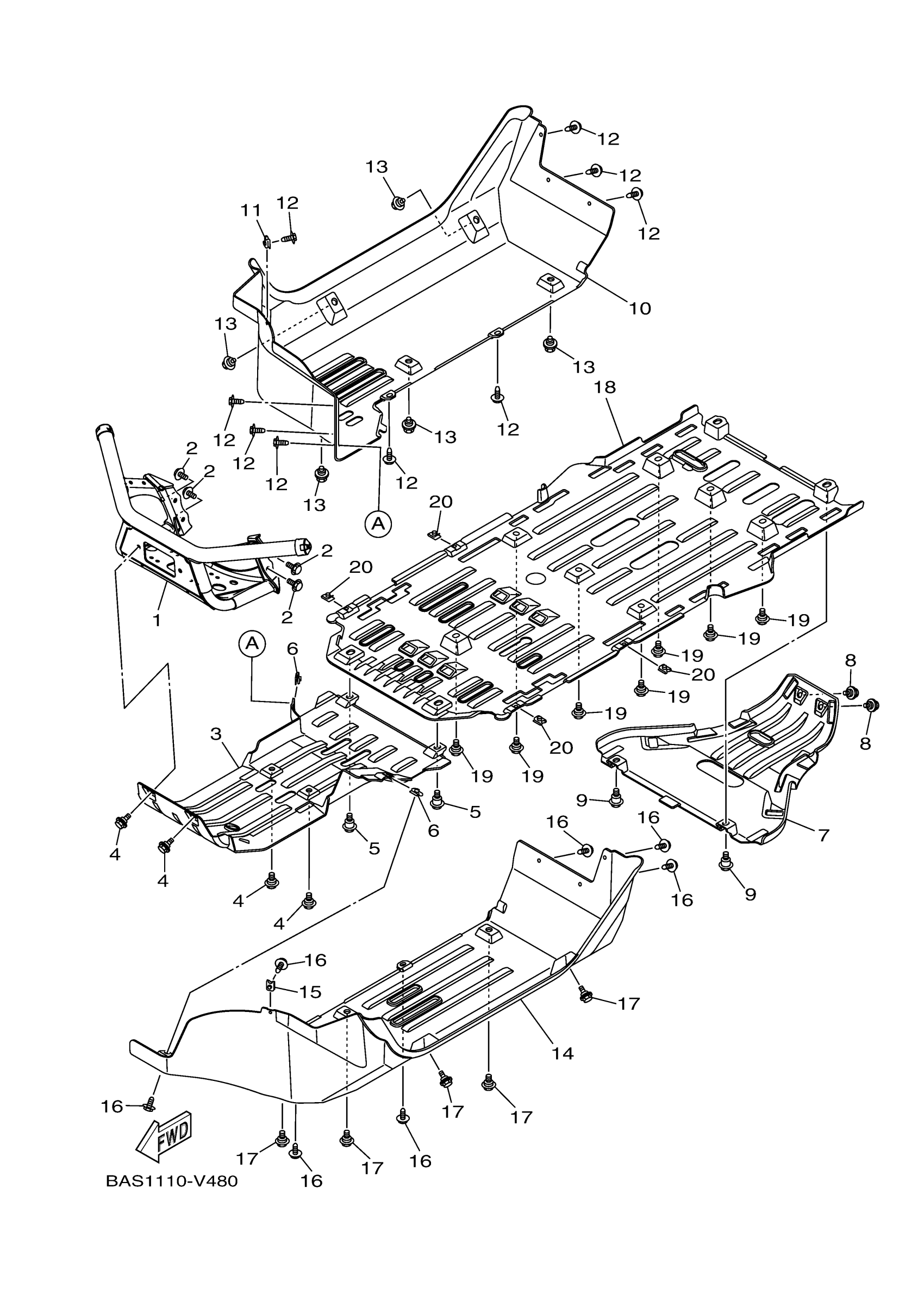

Yamaha YXZ10YESLB (YXZ1000R SS XTR) BAS1 2020 GUARD Diagram

BAR, CARRY FRONT

BOLT, FLANGE

COVER, LOWER

BOLT

BOLT

NUT, SPRING

COVER, UNDER

BOLT

BOLT

GUARD 1

NUT, SPRING

BOLT, WITH WASHER

BOLT

GUARD 2

NUT, SPRING

BOLT, WITH WASHER

BOLT

GUARD, ENGINE 1

BOLT

NUT, SPRING
